D10 I/O Subsystem Locations
This system uses physical location codes to provide mapping of the failing field
replaceable units. The location codes are produced by the processor subsystem’s
firmware and AIX. For information about how to read a location code, see the service
guide for the processor subsystem to which your I/O subsystem is connected.

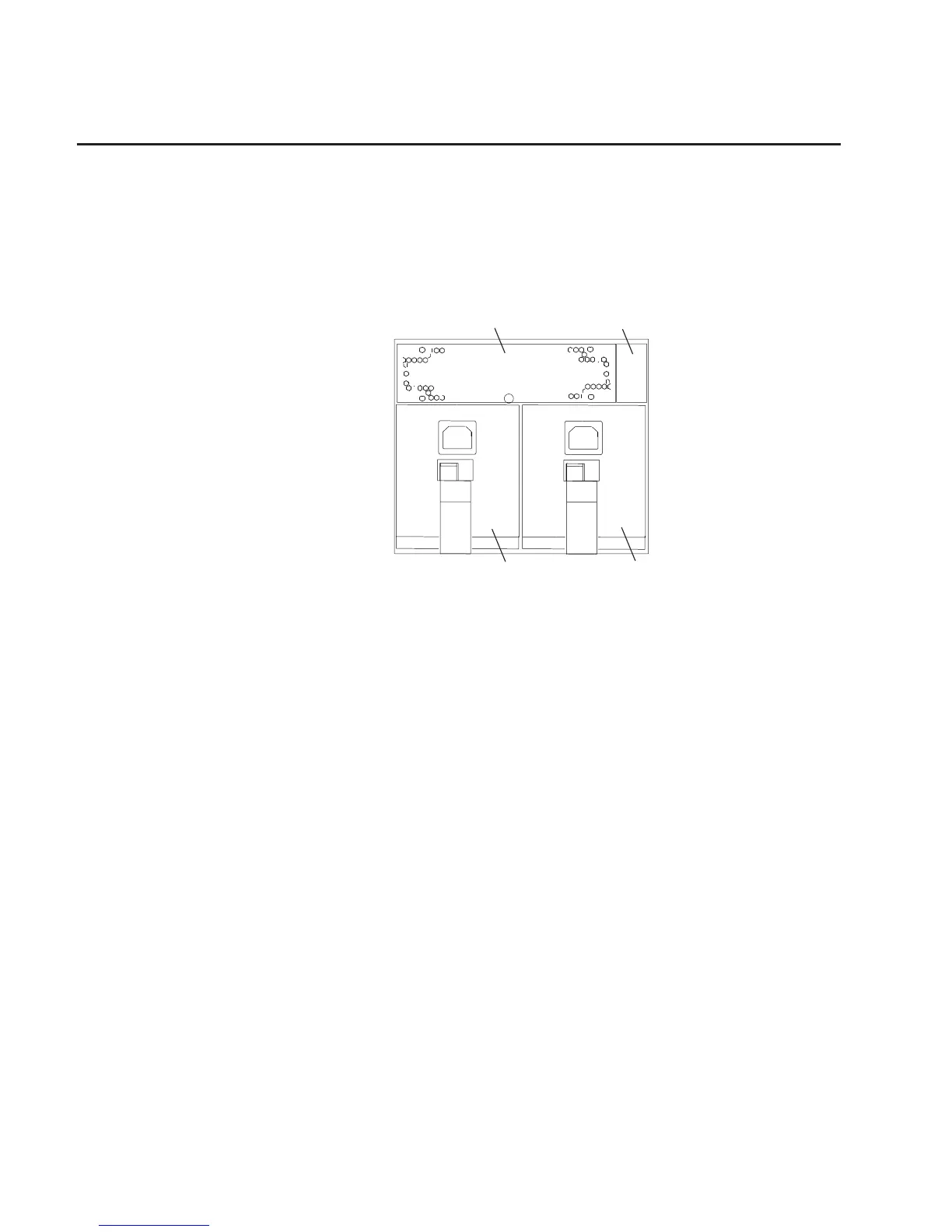

7311 Model D10 I/O Subsystem Front Locations
1
2
3
4
1 Cooling fan 3 Power Supply 2
U0.
dd -V2
2 Power cord channel 4 Power Supply 1
U0.
dd -V1
