Replacing an Adapter in a PCI Adapter Cassette
This procedure is performed when preparing to install a new adapter or a blank filler in
the processor subsystem or an I/O drawer. Familiarize yourself with the entire
procedure before performing the following steps.
1.
Place the empty PCI adapter cassette linkage on a flat work surface in front of you.
Position the cassette so that the handle is in the raised (up postion), and on the left,
with the top of the linkage facing away from you.
Note: Your PCI adapter cassette linkage might not have the short or long adapter
arms installed if you removed them during the disassembly procedure. In the

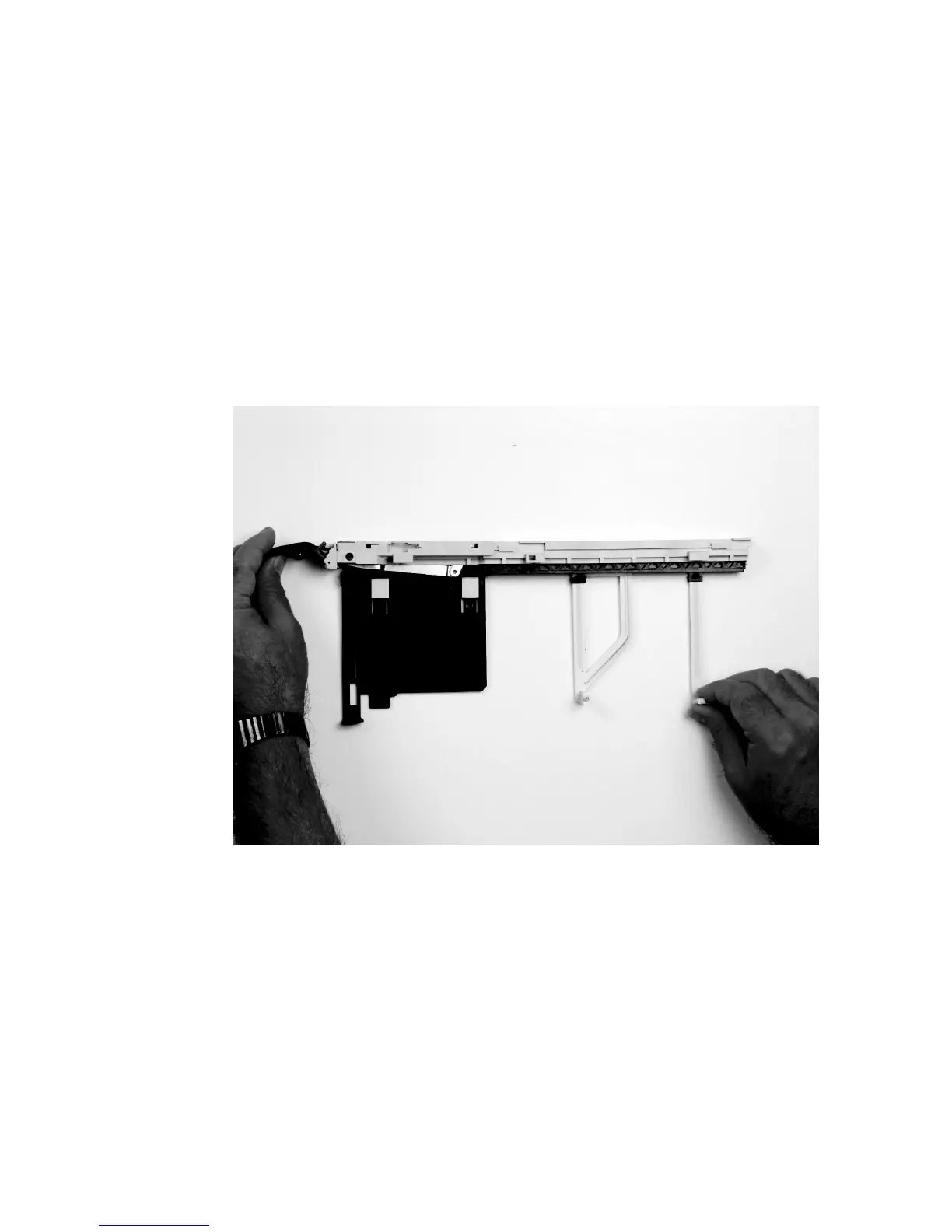

following figure both arms are shown.
Note: If you are installing a Gigabit Ethernet (FC 2969, type 9U), Ultra3 SCSI (FC
6203, type 4Y), or 10/100 BaseT Ethernet (FC 4962, type AF), use the
additional clips listed below to help when you are seating the adapter during
installation.
