Long Adapter Removal
To remove a long adapter, do the following:

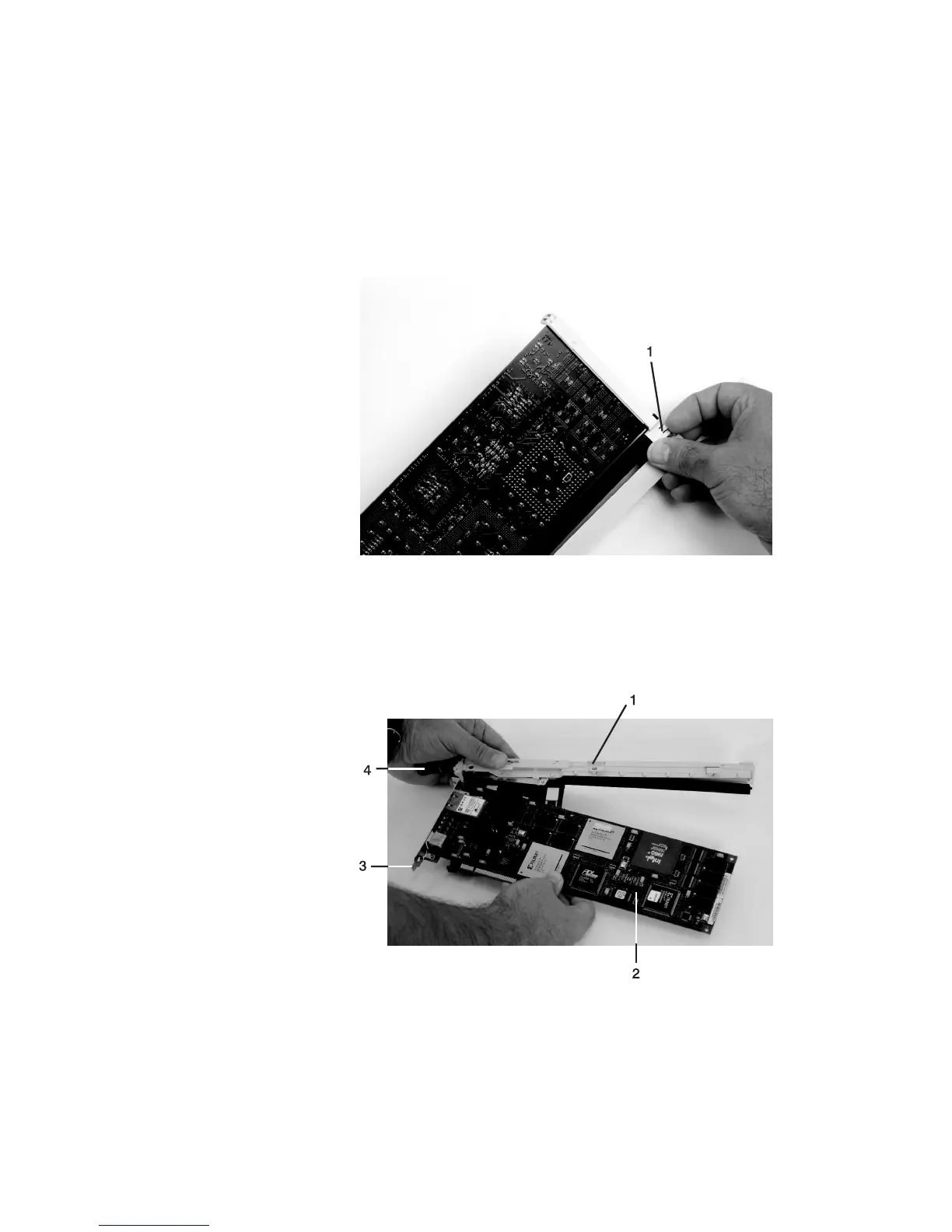

1. Each adapter arm has a release tab that allows the arm to be moved away from the
adapter in the cassette assembly. Use your fingernail to lift the tab to allow the arm
to be moved away from the adapter. Lift the release tab on the long adapter arm,
and slide it off the cassette linkage assembly.
1 Release Tab
2. Remove the adapter from the cassette linkage assembly by rotating the bottom of
the tailstock out, as shown in the following illustration. Store the adapter in a safe
place.
1 Cassette Linkage Assembly 3 Bottom of Tailstock
2 Adapter 4 Handle
3. The PCI adapter cassette assembly removal procedure is complete. To install a new
adapter or blank filler in the cassette, go to “Replacing an Adapter in a PCI Adapter
Cassette” on page 86.
Chapter 8. Removal and Replacement Procedures 85
