17. Remove the I/O backplane by lifting the board straight up and out of the
subsystem.
18. Locate the VPD module. See “Model D20 I/O Backplane Locations” on page 23 for
the VPD module location.
19. Note the location of pin 1 on the VPD module.
20. Remove the VPD module and put it in a safe place.
Note: You will be installing the old VPD module onto the new I/O backplane.

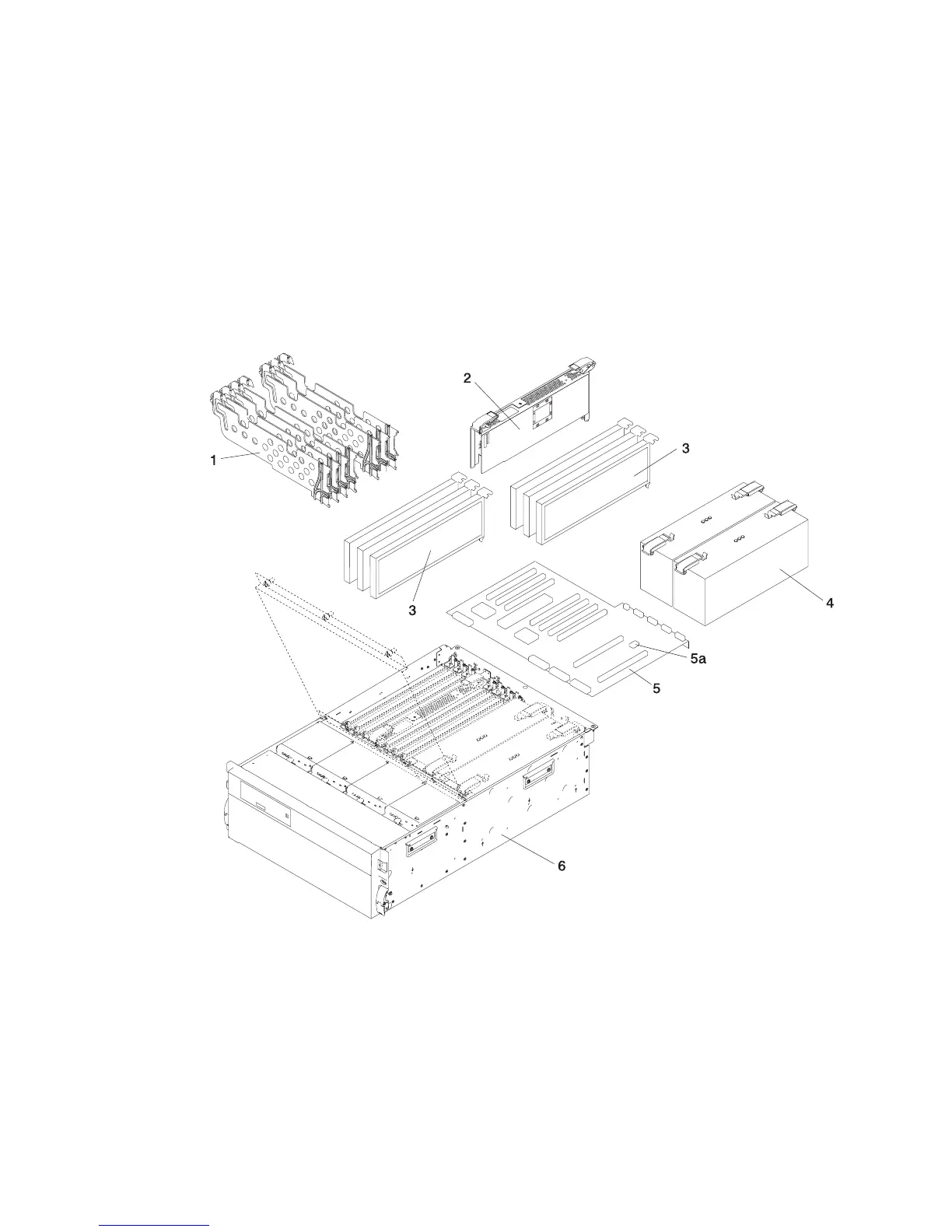

1 PCI Adapter Dividers
(maximum quantity 7)
5 I/O Backplane
2 RIO Bus Adapter 5a VPD Module
3 PCI-X Adapters (maximum
quantity 7)
6 Model D20
4 Power Supplies
176 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
