SPCN (System Power Control Network) Cabling
The following figures provide cabling examples for all valid cabling configurations.
Match your configuration to the correct figure and connect your SPCN cables as shown.

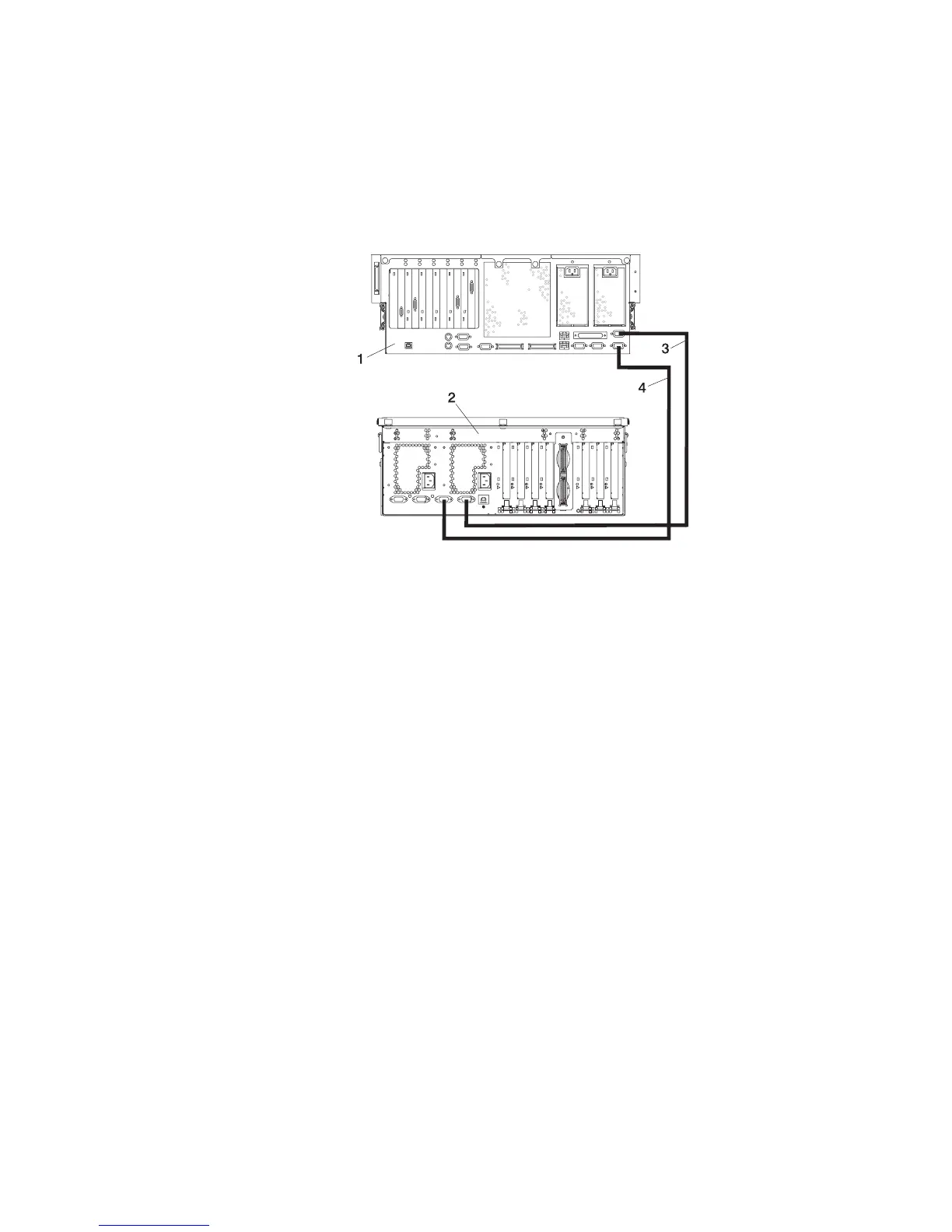

Model 6C4 Attached to One I/O Drawer:
1 Model 6C4 3 SPCN 2 to SPCN 2 Cable
2 7311 4 SPCN 1 to SPCN 1 Cable
30 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
