e. Slide the cassette partially into the guide.
f. Ensure that the dovetail on the top track aligns with its mating component(s) on
both sides.

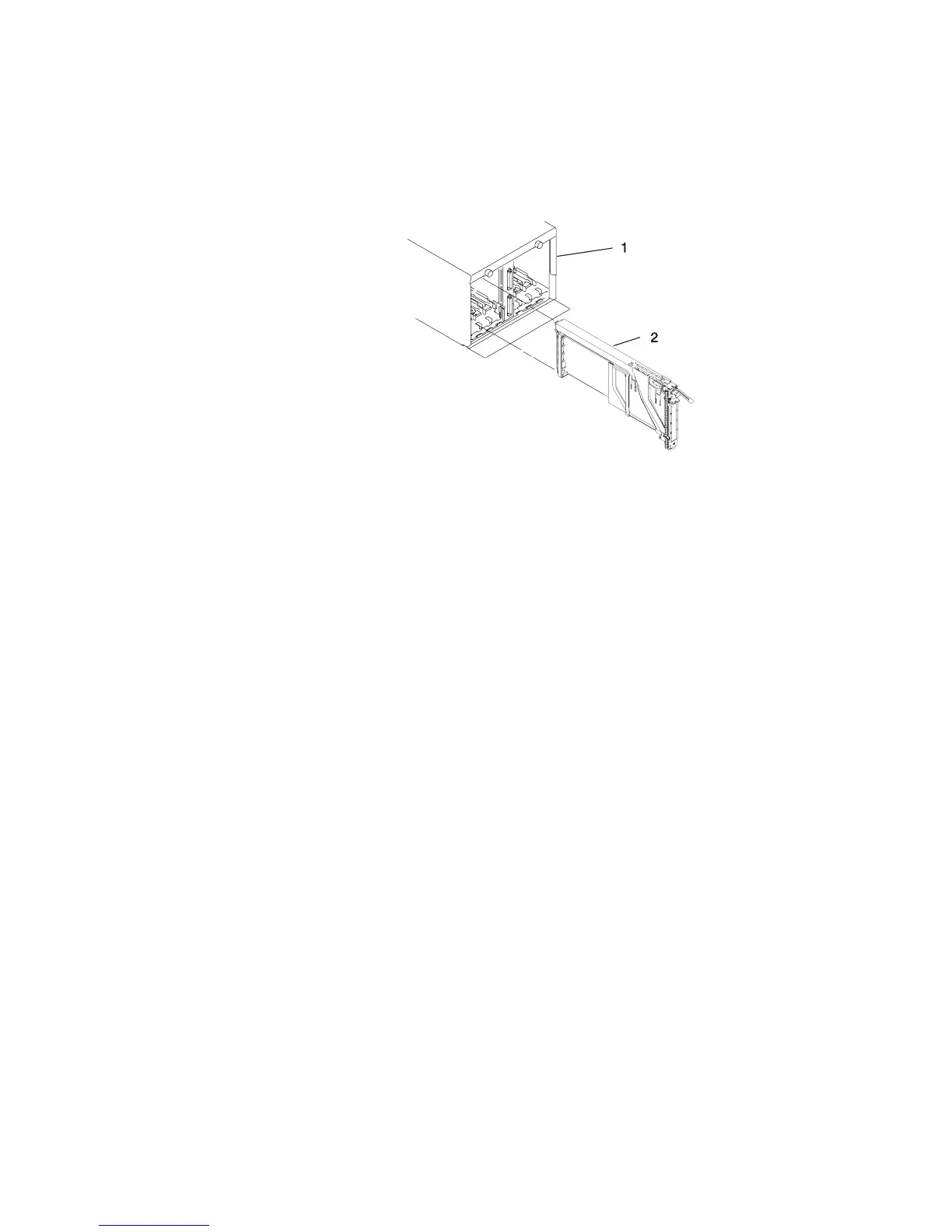

1 I/O Subsystem 2 PCI adapter Cassette
g. When the cassette is fully inserted, prepare to activate the handle, lower the
gray locking bar. Lift the handle all the way up until you hear a click. The PCI
Card should be completely seated.
h. Set the color slide to the orange color indicating that the adapter in the
cassette is hot-pluggable.
11. Connect appropriate cables and devices to the adapter.
12. Continue to follow the screen instructions until you receive a message that the
installation is successful. Successful installation is indicated by the OK message
displayed next to the Command field at the top of the screen.
13. Press the F3 key to return to the PCI Hot-Plug Manager menu.
14. Select Install/Configure Devices Added After IPL and press Enter. Then follow
the instructions on the screen. Successful installation is indicated by the OK
message displayed next to the Command field at the top of the screen.
15. If you do not have other adapters to install, continue with the next step.
OR
If you have other adapters to install, press the F3 key to return to the PCI Hot-Plug
Manager menu and then return to step 6 on page 69.
16. Press F10 to exit the Hot-Plug Manager.
If you have added, removed, or replaced any adapters, run the diag -a command.
If the system responds with a menu or prompt, follow the instructions to complete
the device configuration.
17. Install any covers that you removed earlier, and return the drawer to normal
operations.
70 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
