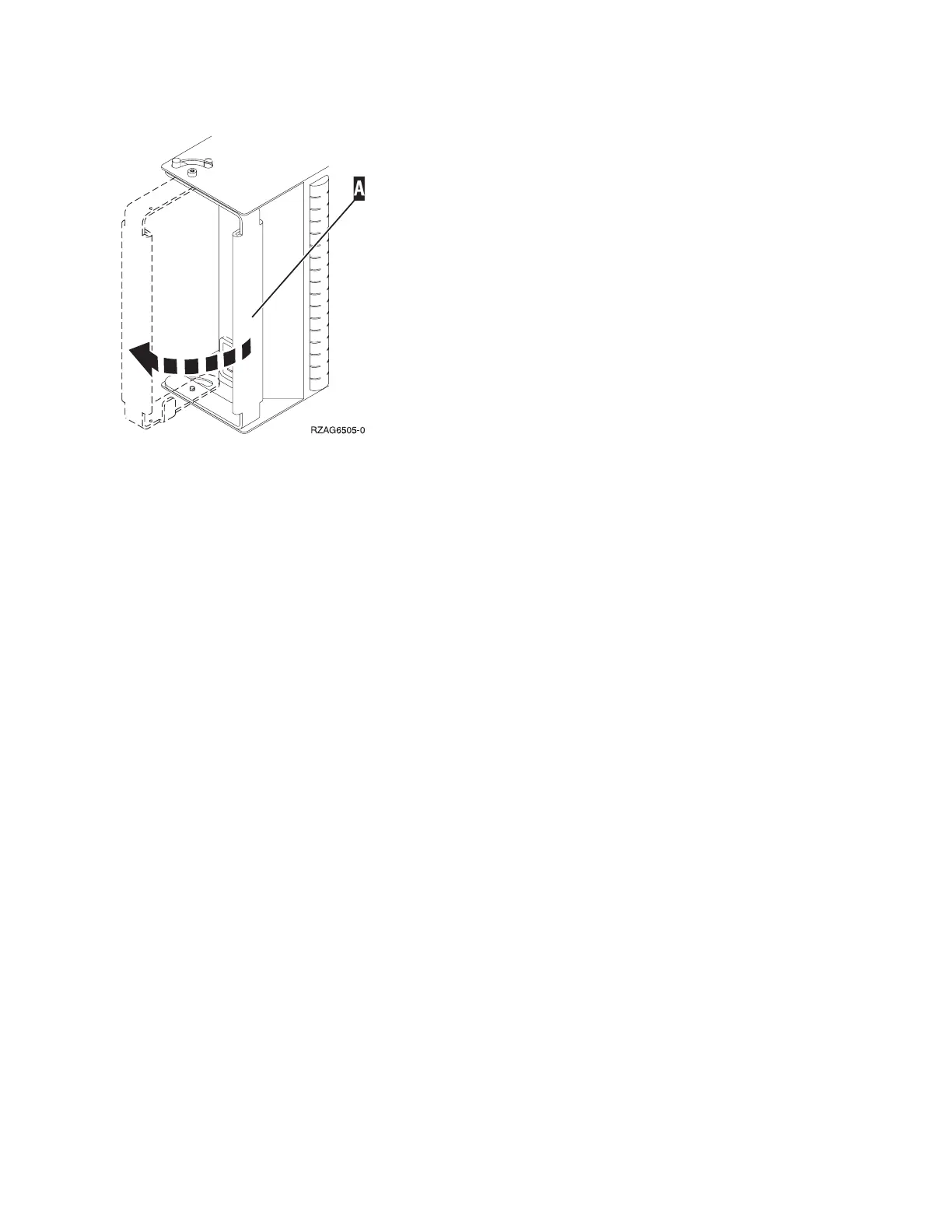

Figure 1. Removing the power supply - P00, P01, P02, P03
7. Install the power supply by reversing this procedure.
Attention: Do not slam the power supply in when installing it. Insert it until the power supply engages
the unit, then rotate the handle from left to right.
Note: Do not install power supplies P00 and P01 AC jumper cables on the same AC input module.
8. After exchanging an item, go to Verify the repair.
This
ends the procedure.
FC 5094, FC 9094 - Removable media - D41 and D42
For use by authorized service providers.
Use this procedure to remove or replace the removable media D41 and D42 on an FC 5094 or FC 9094.
Laser safety information
CAUTION:
This
product may contain a CD-ROM which is a class 1 laser product. (RSFTC240)
CAUTION:
This product may contain a DVD which is a class 1 laser product. (RSFTC245)
To remove the removable media D41 and D42:
1. Determine if the system has logical partitions. Go to Determine if the system has logical partitions
before continuing with this procedure.
2. Remove media (if any) from the device. If the eject button on a tape device is failing, go to Tape
cartridge - manual removal, then continue with the next step of this procedure. If the eject button on a
DVD-RAM device is failing and will not open, do not attempt manual removal of optical media at this
time. For optical devices other than DVD-RAM, go to Optical media - manual removal, and then
continue with the next step of this procedure.
3. Are you removing a unit by using device concurrent maintenance?
v Yes: Continue with the next step.
v No: Perform the following:
a. Power off the tower or expansion tower. see Power on/off the system and logical partitions.
b. Disconnect the power cord from the tower or expansion tower.
c. Open the front cover. See FC 5074, FC 5079, FC 5094, FC 5294, FC 9079, FC 9094 - Covers.
