Use this procedure to remove or replace a disk unit using dedicated maintenance in an FC 5095, FC
0595.
Attention: The disk unit is sensitive to electrostatic discharge. See Work with electrostatic
discharge-sensitive parts.
To remove or replace a disk unit:
1. Determine if the system has logical partitions. Go to Determine if the system has logical partitions
before continuing with this procedure.
2. Were you directed here from Recovery procedures?
v Yes: Continue with the next step.
v No: Go to Recovery procedures.
3. After you have determined the location of the disk unit to replace, remove the front covers for access.
See FC 5095, FC 0595 - Covers.
4. Remove the EMC access plate that is over the location of the disk unit that you are removing. For
location information, see Locations — FC 5095, FC 0595 I/O tower.
5. To remove a disk unit using dedicated maintenance perform the following:
a. Power off the expansion tower. See Expansion unit power procedure.
b. Disconnect the power cord.

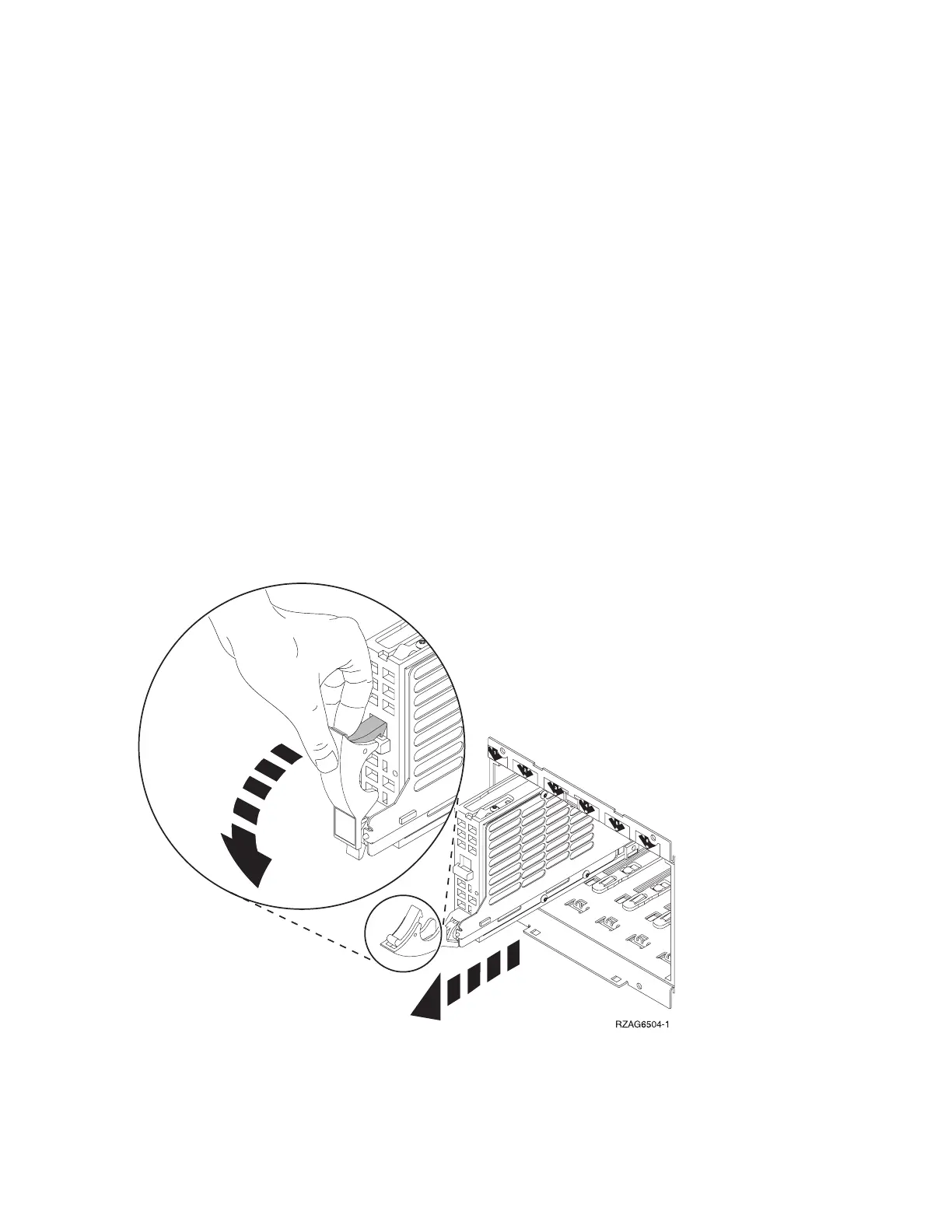

c. Remove the disk unit by pinching the two surfaces of the latching mechanism together and pulling
the handle towards you to release the disk unit from the slot.
d. Remove the unit from the tower.
6. Are you finished with the repair?
v No: Continue with the next step.
v Yes: Replace the covers that were removed during this procedure and return to the procedure that
sent you here.
This ends the procedure.
Analyze hardware problems 197
