Index Part number Units Description
3 24L1079
24L1071
1 Rear cover
Hinge pin, top
4 24L0824 1 Side cover
5 1621811 12 Screw, M4 (10mm)
6 24L1078 1 Front filler plate
7 1621811 2 Screw, M4 (10mm)
8 24L1069
24L1071
1 Front cover
Hinge pin, top
Final assembly - FC 9079 Base I/O Tower (Models 840 and SB3): For use by authorized service
providers.

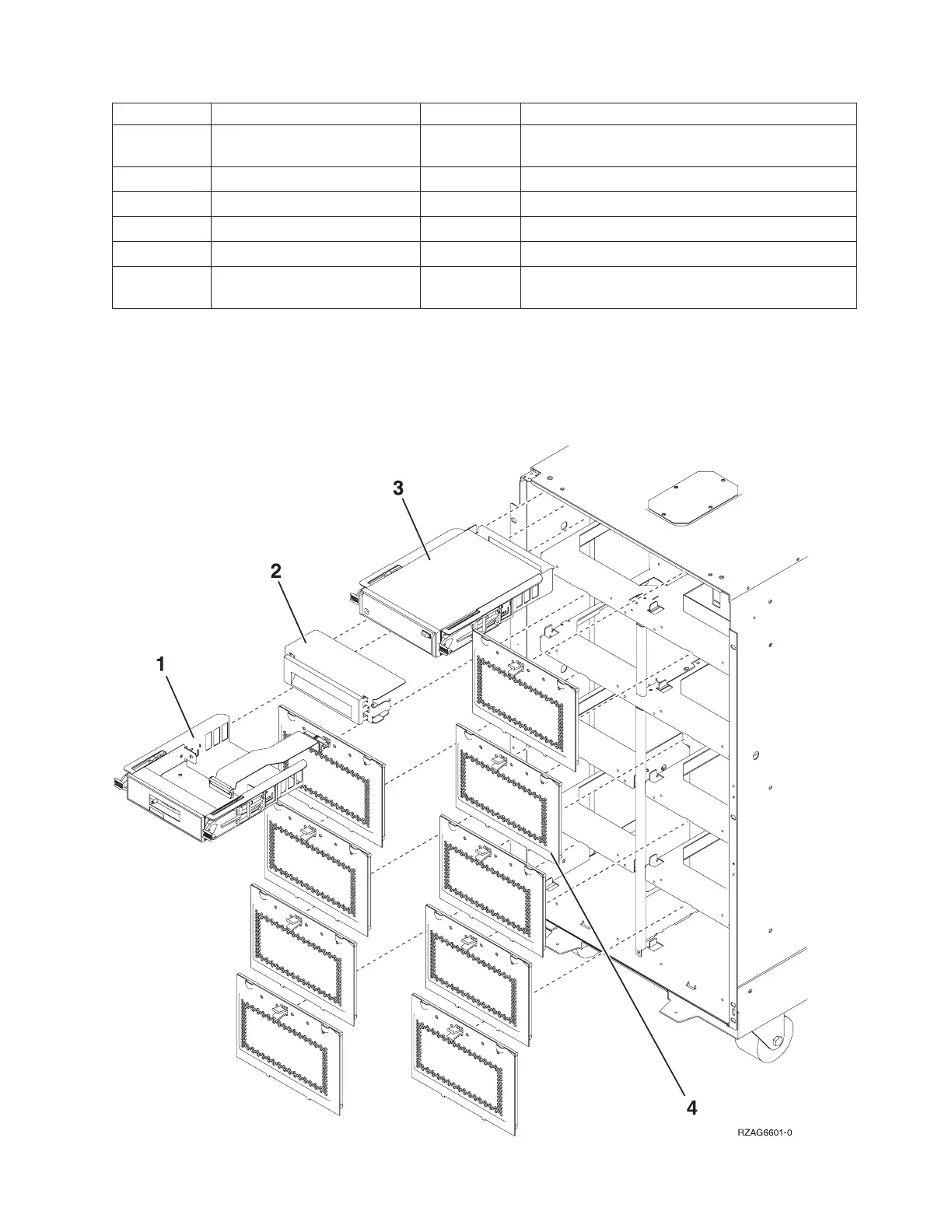

Figure 1. Final assembly - FC 9079 Base I/O Tower (Models 840 and SB3)
