Index Part number Units Description
21 24L0823 1 EMC access plate
22 NONUM 1 Air moving device (AMD) door assembly
23 1621811 2 Screw, M4 (10mm)
24 44L0023 2 Air moving device (AMD) (B01, B02)
25 24L0891 1 Power board/stiffener assembly (PB1)
26 1621816 6 Screw
27 16G8095 1 Time of day (TOD) battery
28 53P3271 1 PCI card cage assembly
29 1621811 6 Screw, M4 (10mm)

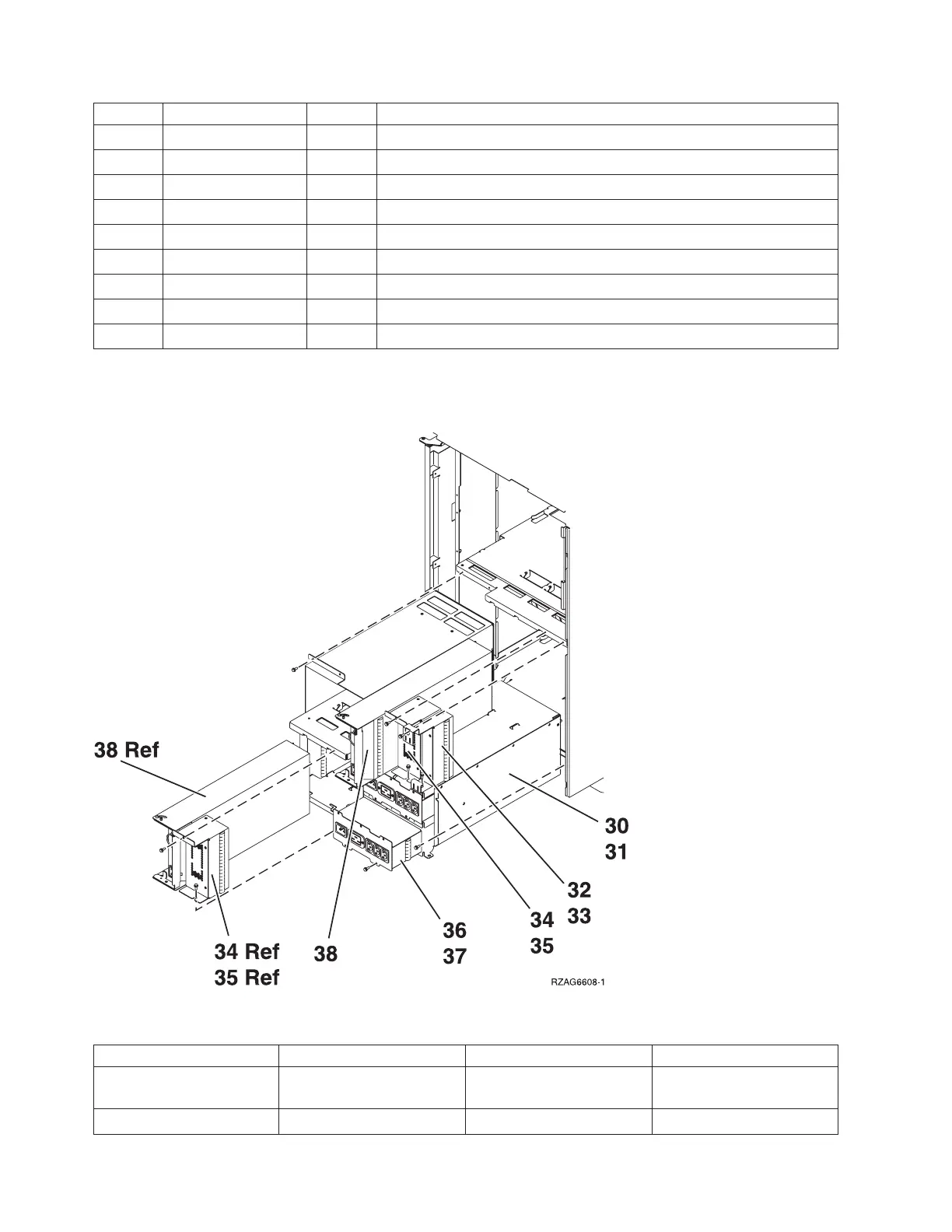

Figure 5. Final assembly (rear) - FC 9094 Base I/O Tower
Table 5. Final assembly (rear) - FC 9094 Base I/O Tower
Index Part number Units Description
30 53P5259 1 Dual line cord (DLC) power
sub frame assembly
31 1621811 8 Screw, M4 (10mm)
