Index Part number Units Description
36 53P5263 2 AC power distribution assembly (ACMODUL)
37 1621811 4 Screw, M4 (10mm)
38 53P1038 4 Power supply assembly - 840W (P00, P01, P02, P03)

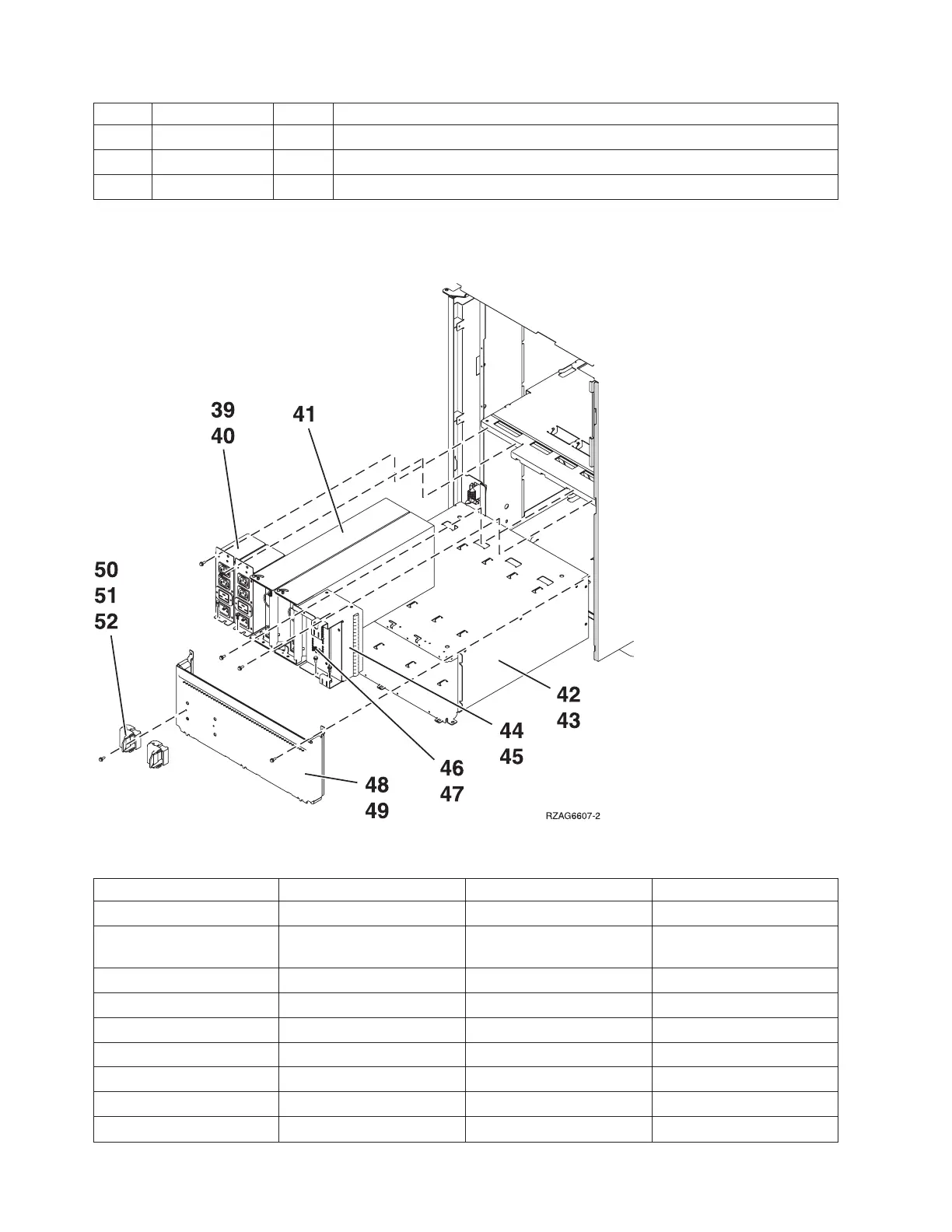

Figure 6. Final assembly — FC 5074 (2 power supply dual line cord)
Table 6. Final assembly — FC 5074 (2 power supply dual line cord)
39 21P6347 2 AC module
40 1621811 4 Screw, M4 (10mm)
41 53P1038 2 Power supply — 840 watts
(P01, P02)
42 53P4651 1 Power sub frame assembly
43 1621811 12 Screw, M4 (10mm)
44 24L0940 AR Filler, Spacer
45 1621811 2 Screw, M4 (10mm)
46 24L0939 AR Filler, power supply
47 1621811 2 Screw, M4 (10mm)
48 NONUM 1 EMC access plate
462 Hardware (Remove and Replace; Part Locations and Listings)
