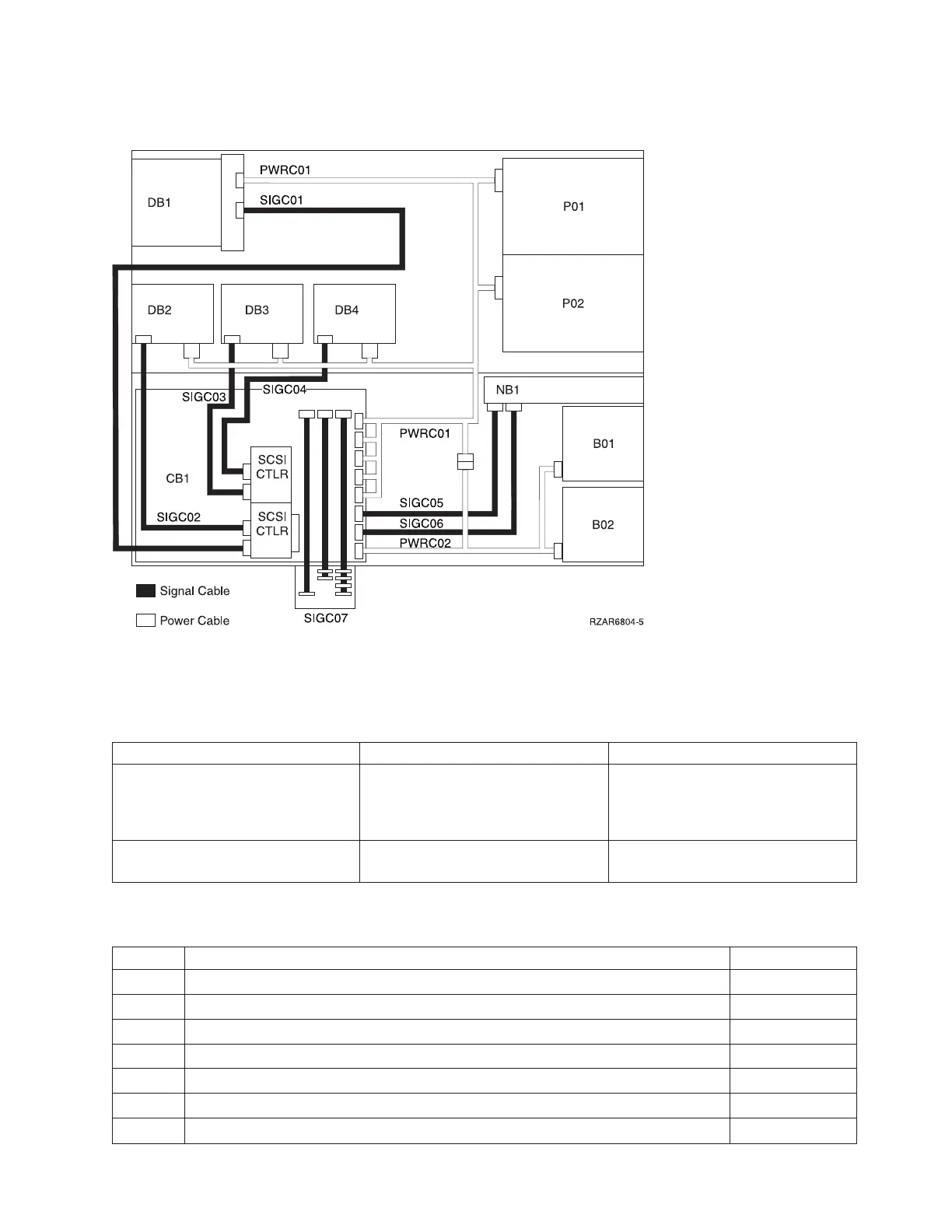

Figure 7. Model 825 with FC 2782 (two) - Power and signal cables
Note: To see a detailed drawing of the SCSI controller adapter, see Current configuration tables for the
Model 825 in the Hardware topic.
Table 13. Model 825 with FC 2782 (two) - Power cables
Name Description Part number
PWRC01 Power supply (P01 and P02) to
Removable media device board
(DB1) and System unit backplane
(CB1)
97P2674
PWRC02 System unit backplane (CB1) to
AMDs (B01 and B02)
21P7064
Table 14. Model 825 with FC 2782 - Signal cables
Name Description Part number
SIGC01 SCSI controller 1 to Device board (DB1) 21P7062
SIGC02 SCSI controller 2 to Device board (DB2) 21P7063
SIGC03 SCSI controller 1 to Device board (DB3) 21P7063
SIGC04 SCSI controller 1 to Device board (DB4) 21P7063
SIGC05 System unit backplane (CB1) to Control panel (NB1) 97P2893
SIGC06 System unit backplane (CB1) to Control panel (NB1) 21P6421
SIGC07 System unit backplane (CB1) to rear bracket 21P6424
Analyze hardware problems 491
