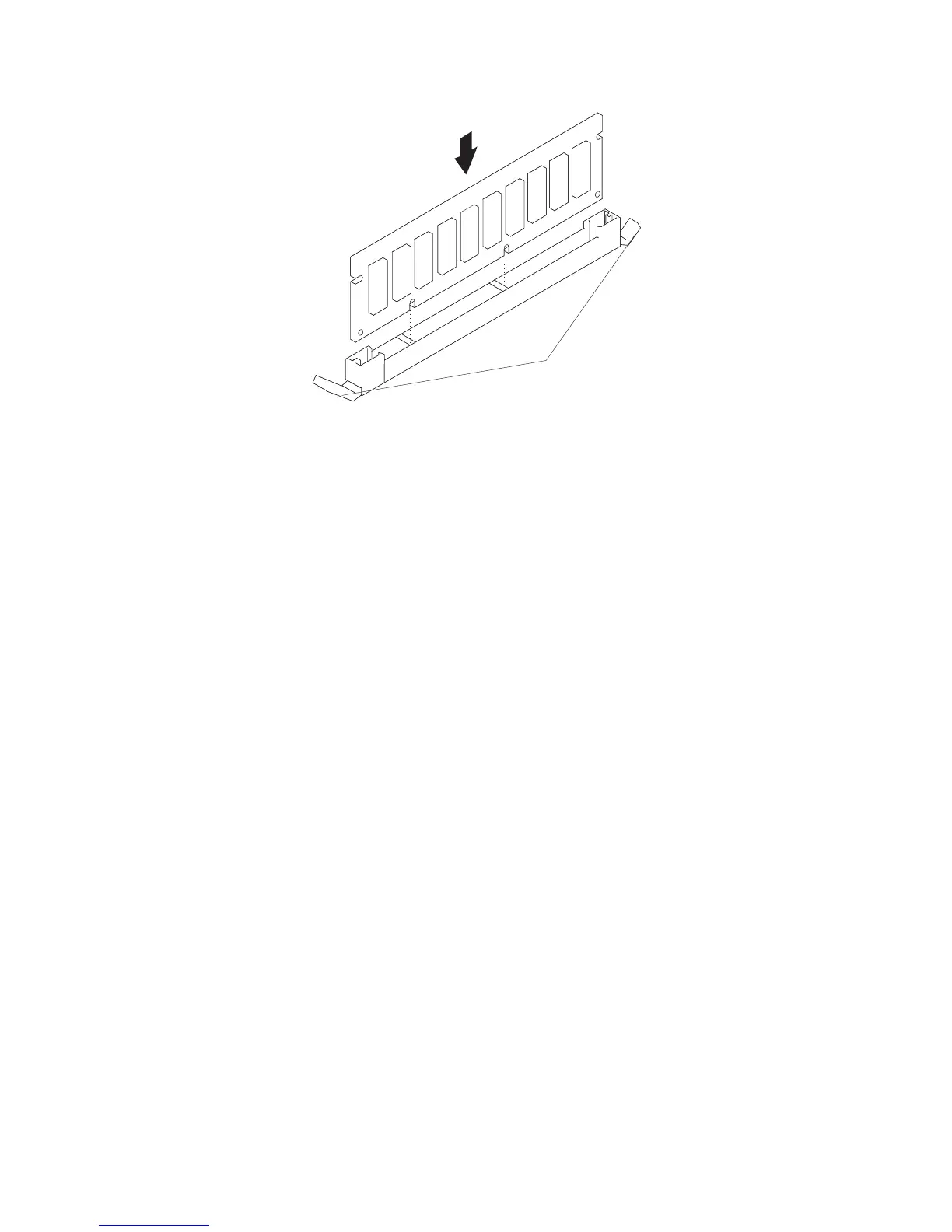

Locking Tabs

4. Secure the memory module with the locking tabs located at each end of the connector.

5. Replace the memory card into the system unit.

6. Push the CEC drawer back into the rack, and replace the CEC card-cage retaining screws.

428 Service Guide
