Internal DASD 1

SCSI id = 4

Internal DASD 2

SCSI id = 8

Replacement

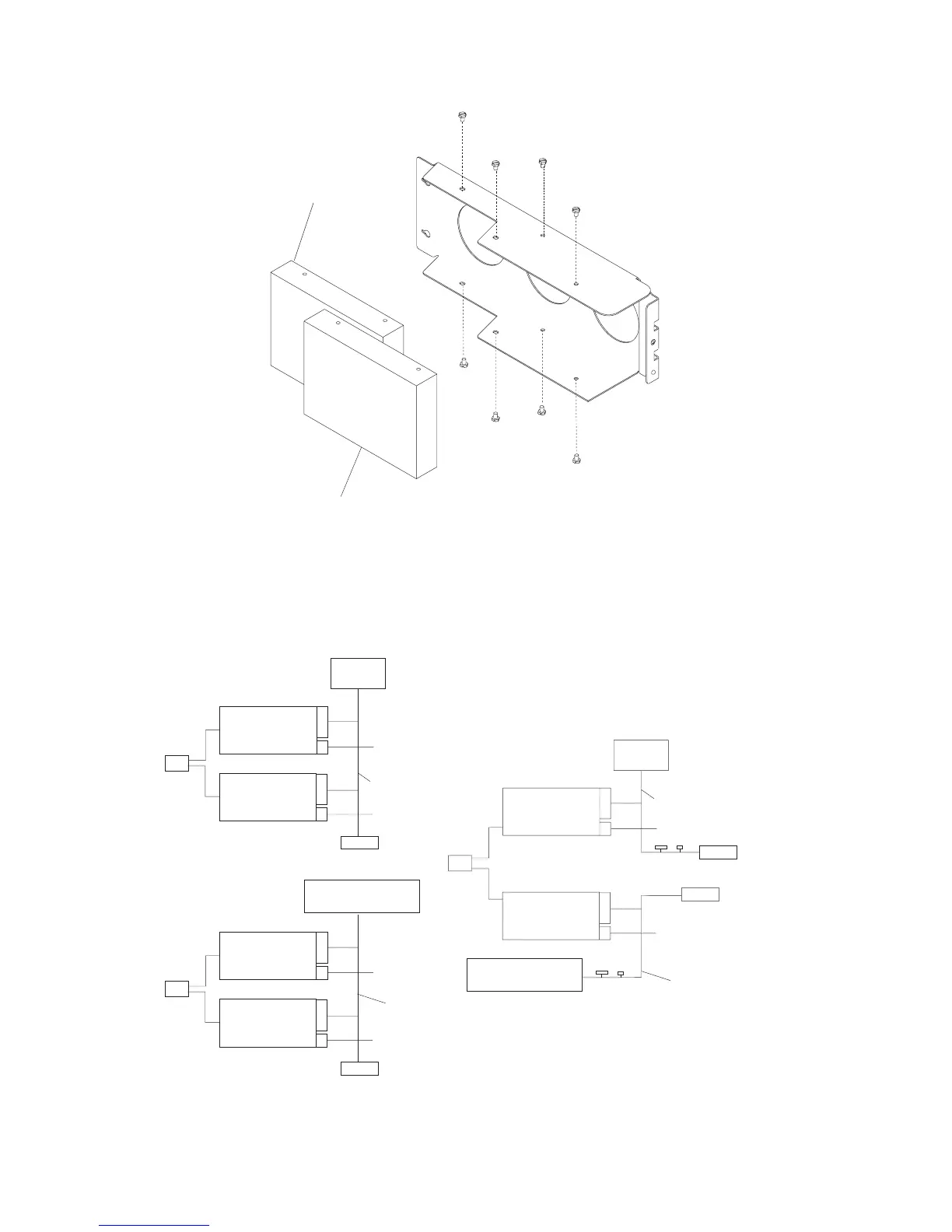

Replace in reverse order. Refer to the following diagram for help with connecting the cables to the internal

disk drives.

Term

DASD 1

DASD 2

System

Internal SCSI

Cable

Internal SCSI

Cable

Internal/External

SCSI Cable FC 3139

ID 8 jumper

ID 4 jumper

Alternate Internal Disk Drive Connections

Term

DASD 1

DASD 2

External Bulkhead

Connector

Internal/External

SCSI Cable FC 3139

External Bulkhead

Connector

ID 8 jumper

ID 4 jumper

Term

DASD 1

DASD 2

System

ID 8 jumper

ID 4 jumper

Notes:

1. The SCSI ID jumpers are integrated in the SCSI cable.
