I/O Drawer RIO Bus Adapter

Removal

1. Turn off power as described in “Powering Off the System” on page 415.

2. Place the I/O drawer in the rear service position, as described in “Rear Service Position” on page 463.

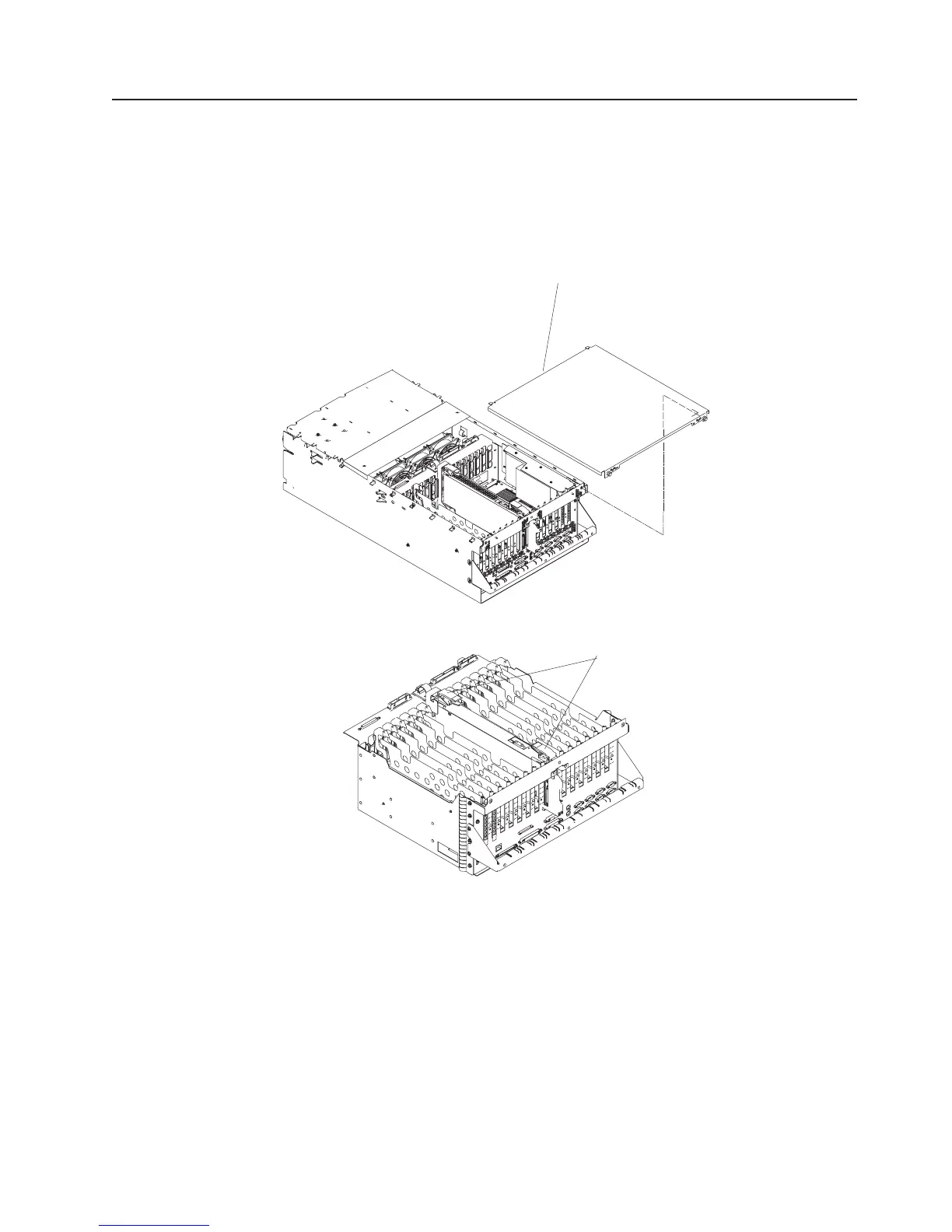

3. Remove the two thumbscrews and remove the rear cover.

Rear

Cover

4. Disconnect all cables from the card assembly.

Latches

Chapter 10. Removal and Replacement Procedures 445
