Replacement
Attention: Look for small amounts of debris on the connecting surfaces between the backplane and the
processor card. Mating the two surfaces is critical for the processor to function properly.

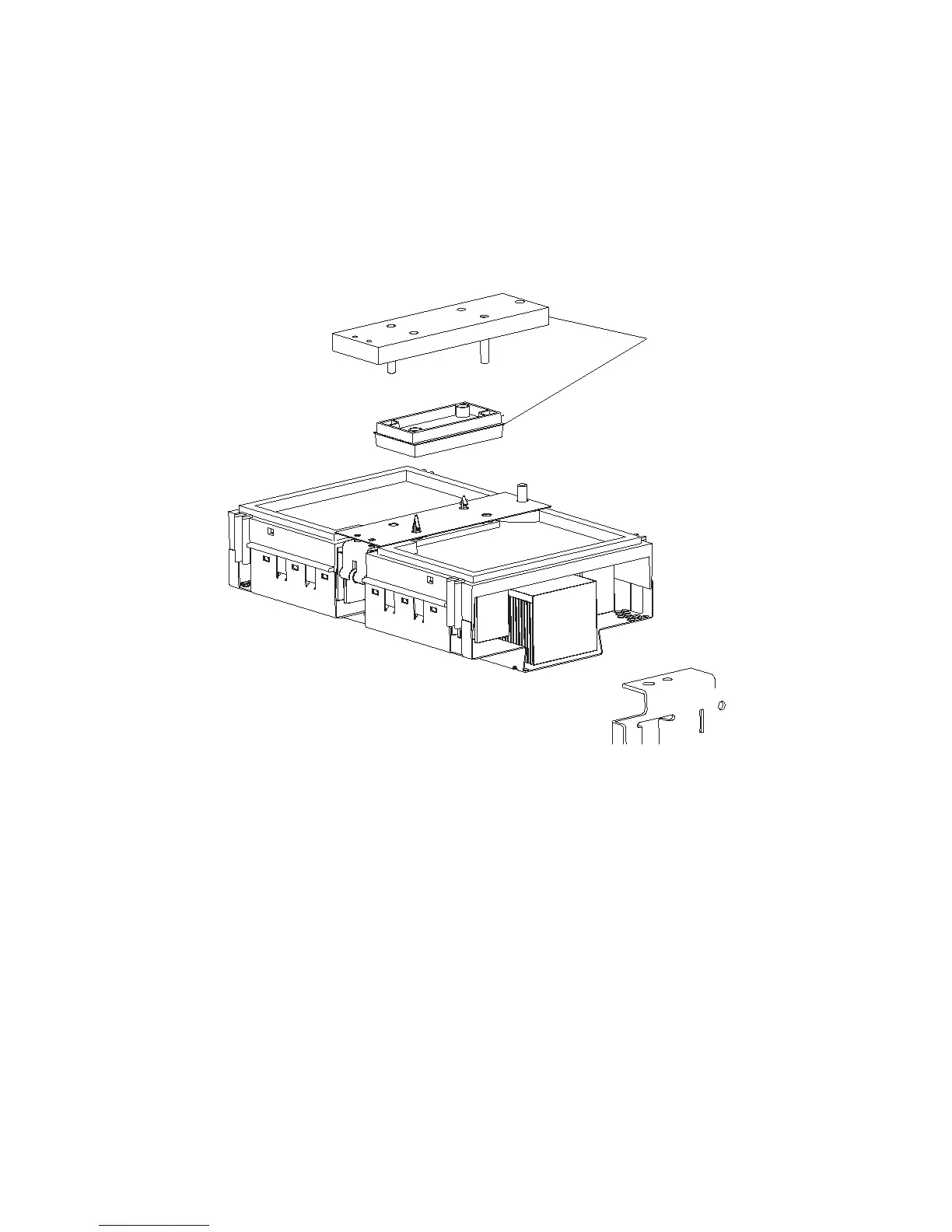

1. Gently lift one end of the processor card and then the other until it slides up and off of the contact
surface. Place the top of the new processor card on your work surface. Carefully remove the array
cover (1) from the bottom of the processor card. Orient the array cover on the original processor card
so that the side containing the part number is facing the original processor card. Gently slide the array
cover over the contact surface until it snaps onto the original processor card. Put the original processor
in a protected area.
