Rear Service Position
To place a drawer in the rear service position, do the following:
1. If you have not already done so, open the front door of the rack unit.
2. Loosen the two thumbscrews that attach the front bezel to the drawer.
3. Grasp both sides of the front bezel and pull it off the drawer.
4. If you have not already done so, open the rear door of the rack unit.

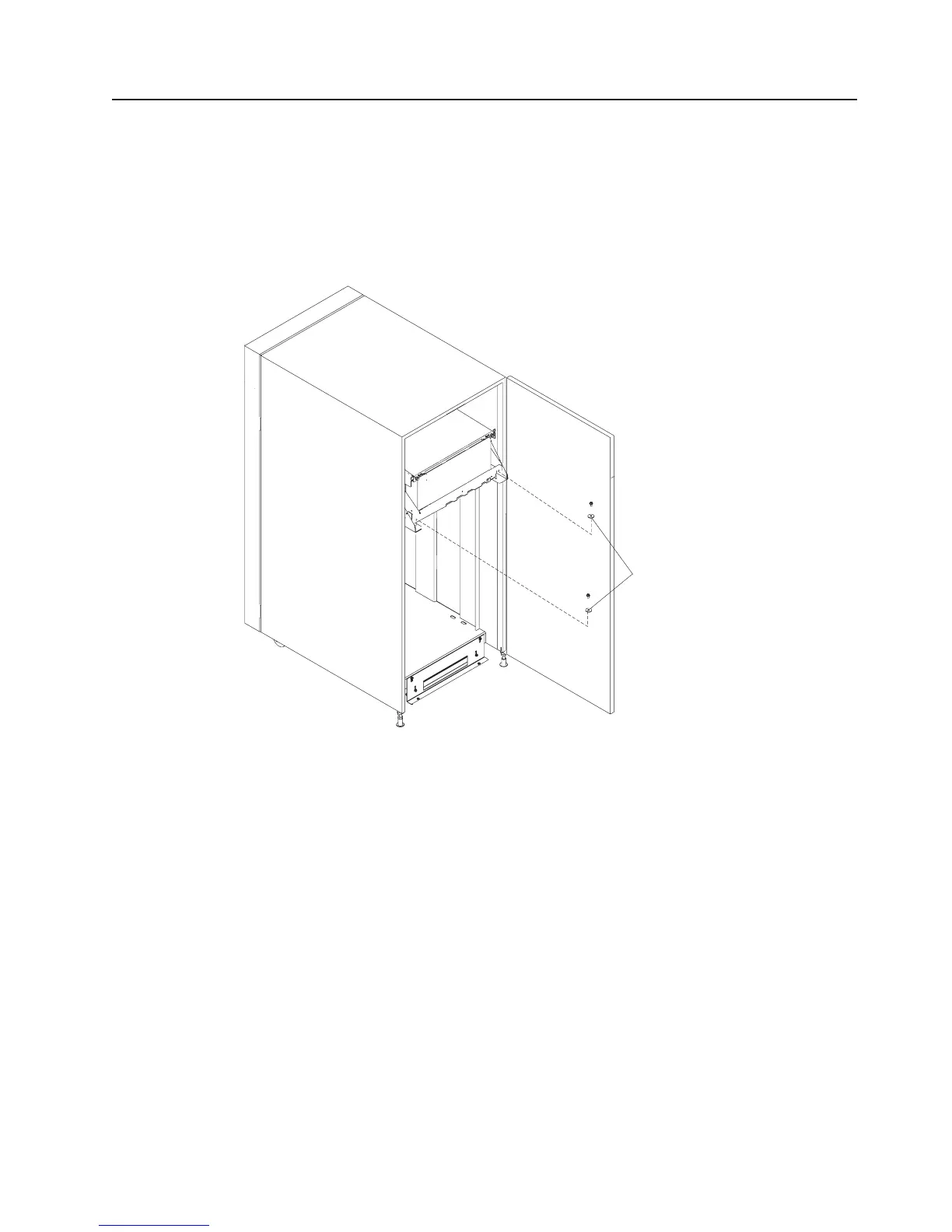

5. If present, remove two screws securing the drawer to the rack.
Hex Flange Screws
and Flat Washers
Rear of Rack
6. Grasp the bar at the rear of the drawer, and pull the drawer to the rear until it is stopped by the two
detents.
Chapter 10. Removal and Replacement Procedures 463
