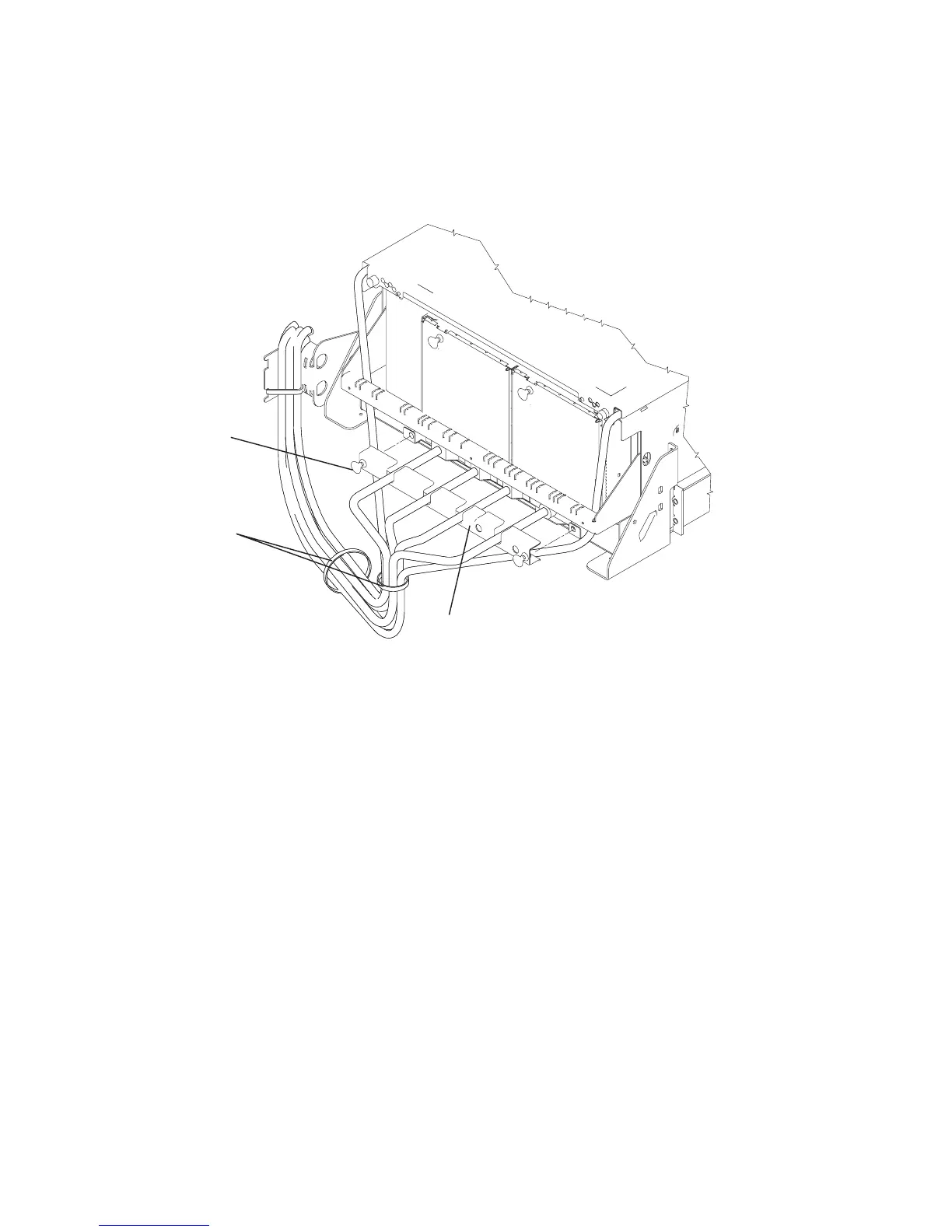

CEC Drawer Cables: Arrange the CEC drawer cables in the CEC drawer cable bracket (3), part number

11K0249, and fasten the bracket to the back of the CEC drawer. (Fasteners (1) push in to lock and pull

out to unlock.)

Route the cables over the cable guides, and secure the cables with Velcro strips (2), part number

07H6855 or 51H9502.
