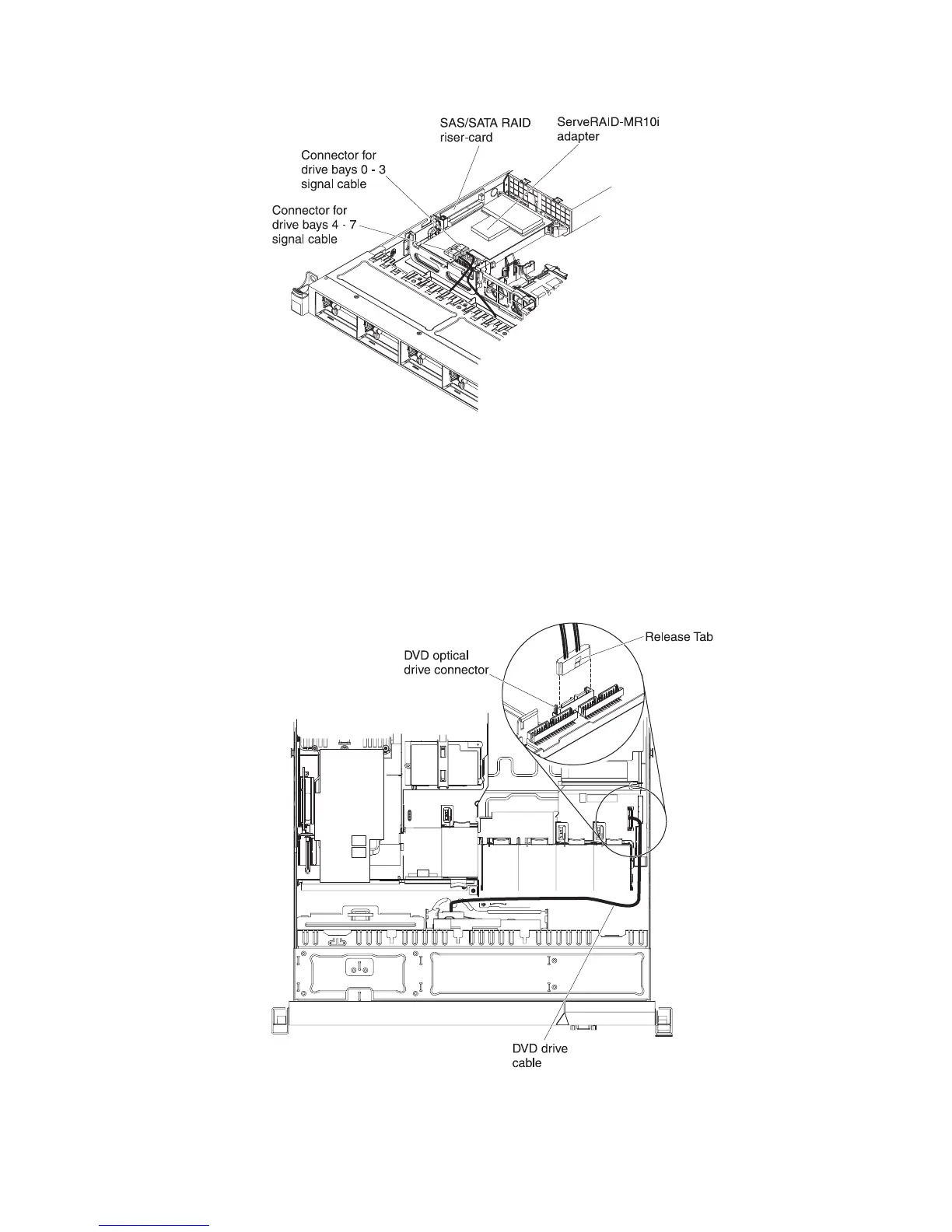

The following illustration shows the internal routing and connector for the optional
optical drive cable.
Attention: To disconnect the optional optical drive cable, you must first press the
connector release tab, and then disconnect the cable from the connector on the
system board. Do not disconnect the cable by using excessive force.
Figure 20. ServeRAID adapter cable connection
Figure 21. DVD drive cable connection
Chapter 2. Installing optional devices 47
