The following illustration shows the internal routing and connector for the
operator information panel cable. The following notes describe additional
information you must consider when you install or remove the operator
information panel cable:
v You may remove the optional optical drive cable to obtain more room before
you install or remove the operator information panel cable.
v To remove the operator information panel cable, slightly press the cable toward
the chassis; then, pull to remove the cable from the connector on the system
board. Pulling the cable out of the connector by excessive force might cause
damage to the cable or connector.
v To connect the operator information panel cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to the
cable or connector.
Attention: Failing to install or remove the cable with care may damage the
connectors on the system board. Any damage to the connectors may require
replacing the system board.
The following illustration shows the internal routing and connector for the
USB/video cable. The following notes describes other information you must
consider when you install or remove the USB/video cable:
v You may remove the optional optical drive cable to obtain more room before
you install or remove the operator information panel cable.
v The USB/video cable is routed under the video cable and then both the USB
and video cables are routed under the cable retention tab and the top cover latch
receptacle.

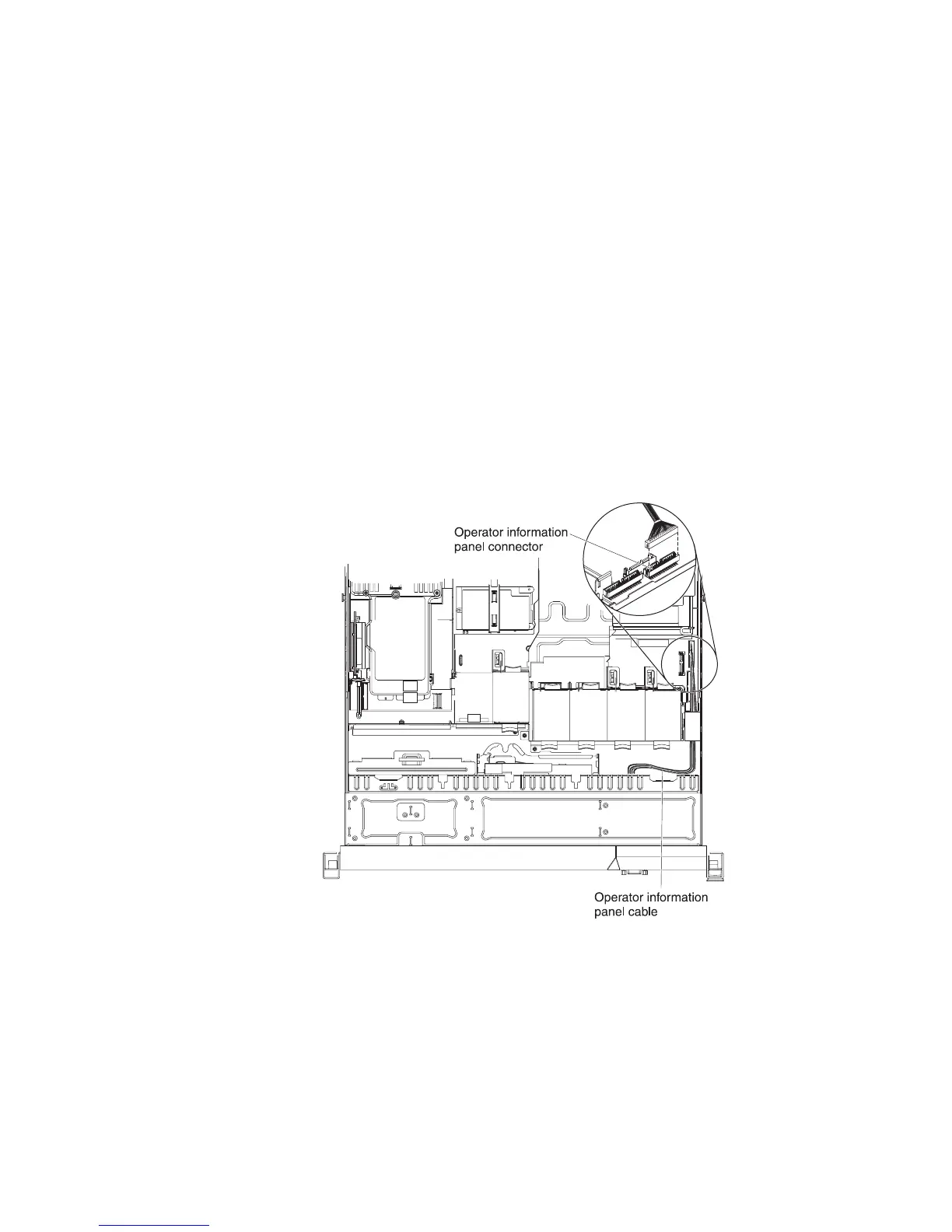

Figure 22. Operator information panel cable connection
48 IBM System x3550 M3 Type 4254 and 7944: Installation and User's Guide
