v To remove the USB/video cable, slightly press the cable toward the chassis; then,
pull to remove the cable from the connector on the system board. Pulling the
cable out of the connector by excessive force might cause damage to the cable or
connector.
v To connect the USB/video cable on the system board, press evenly on the cable.
Pressing on one side of the cable might cause damage to the cable or connector.
The following illustration shows the internal routing for the SATA power cable and
signal cable.

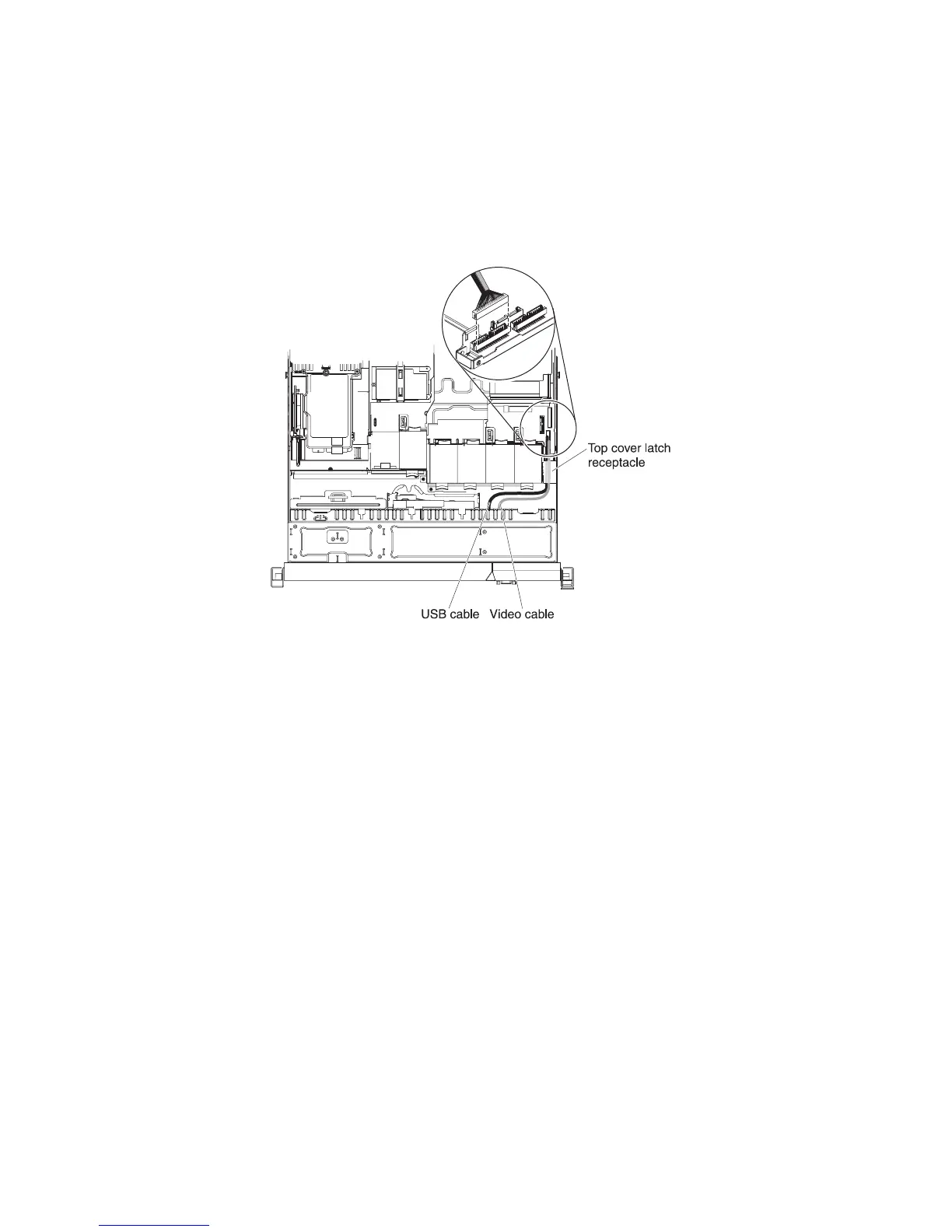

Figure 23. USB/video cable connection
Chapter 2. Installing optional devices 49
