13 Power cable hole
An optional, capped opening for a library whose power cable attaches to an outlet
mounted above the library.
14 Fibre Channel cable hole
An optional, capped opening for a library whose Fibre Channel cables are routed
above the library.

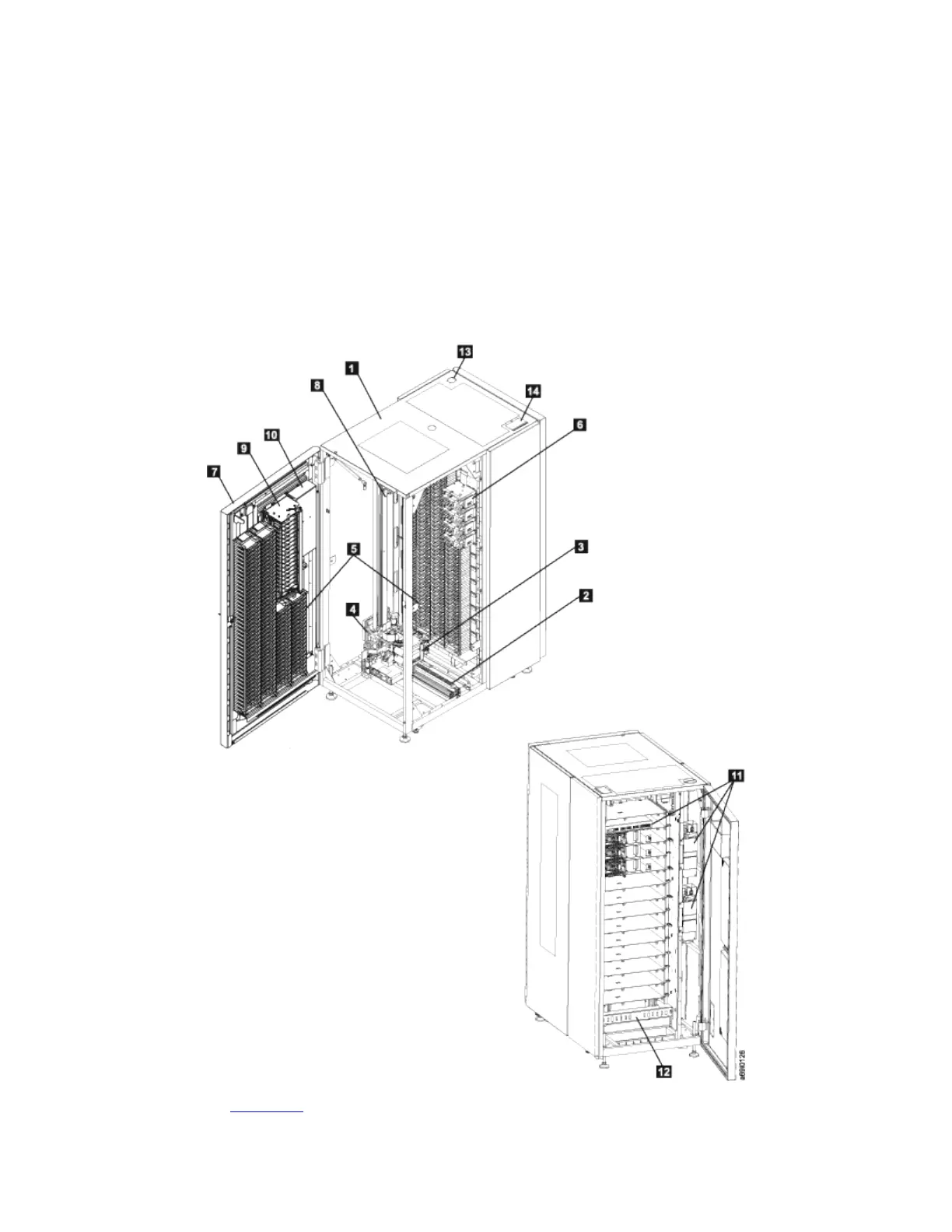

Figure 1. Components of the IBM System Storage™ TS3500 Tape Library. The front of a
Model L53 is shown at the top. The rear of Model L53 is shown on the bottom.
