Removing the power supply

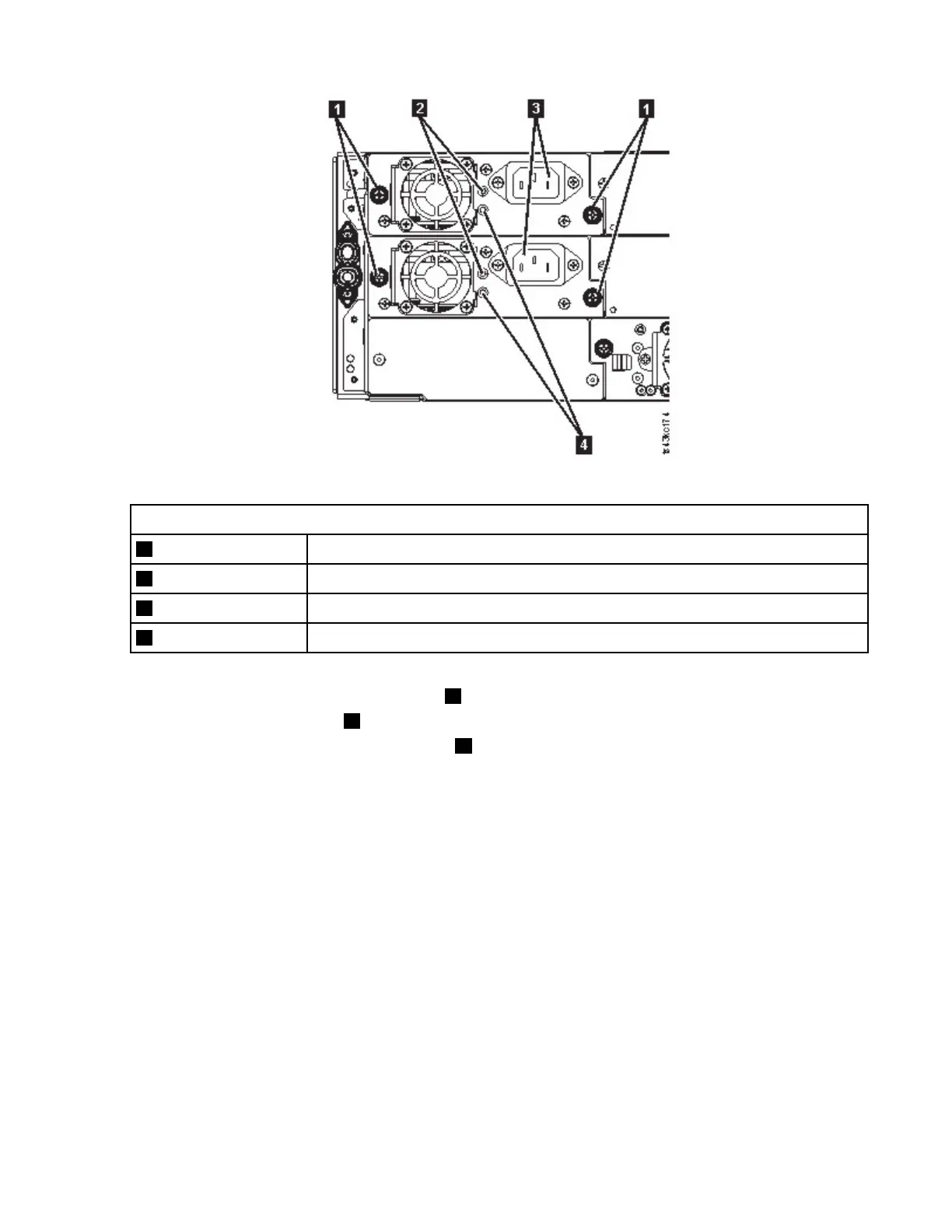

Figure 67. Power supplies

Table 43. Power supply components

1 Blue captive thumbscrews

2 White, lit if the AC power is connected.

3 AC power outlet

4 Green, lit if the module in turned on.

1. Locate the failed power supply on the rear of the library by the UID LEDs notication, and also by the

power supply LEDs. Either the green LED ( 4 ) is lit or both LEDs are unlit.

2. Unplug the AC power cord ( 3 ) from the power supply you are replacing.

3. Loosen the two blue captive thumbscrews ( 1 ) with your ngers on the power supply.

4. Using the thumbscrews (one on each side), slowly pull the power supply approximately 10 cm (4

inches) from the back of the module.

5. Use one hand to completely remove the power supply from the module, while the other hand is used

to support the bottom.

130

IBM TS4300 Tape Library Machine Type 3555: User's Guide
