GV10x OPERATION AND SAFETY MANUAL
4.1.3.3. Setting Parameters from GV10x-RC15 to Control GV10x BT and 2U Controllers
4.1.3.3.1. Control Tab
The primary parameters for GV10x operation are watts, hours, minutes, and seconds,
shown as W, HH, MM, and SS in the circled portion of Figure 4-5b.
Note: When the GV10x-RC15 software is not connected to the GV10x (as is the case
below) or when the GV10x is connected and running, only watts may be changed.
Hours, minutes, and seconds will be disabled.
4.1.3.3.2. Setup Tab
The Setup tab is used to set operating parameters that typically do not change often: Watt
Limits (Min Val / Max Val), eGun Valve Warning, Ignition Watts, Ignition Secs,
Pressure Gauge, Pressure Trigger, and RF at Power Up. Port Settings (to select com port
and required settings as specified in Appendix C) and Open/Close Port (to open the port
for communication) can also be found on the Setup tab. Once GV10x-RC15 software is
communicating with the GV10x, The parameters shown in Figure 4-5c are retrieved from
the GV10x and can be changed with the GV10x-RC15 software. Note: Watt Limits (Max
and Min), Ignition Watts, Ignition Secs, Pressure Trigger, and Pressure Gauge are only
available on GV10x Controller models manufactured after January 15, 2015.

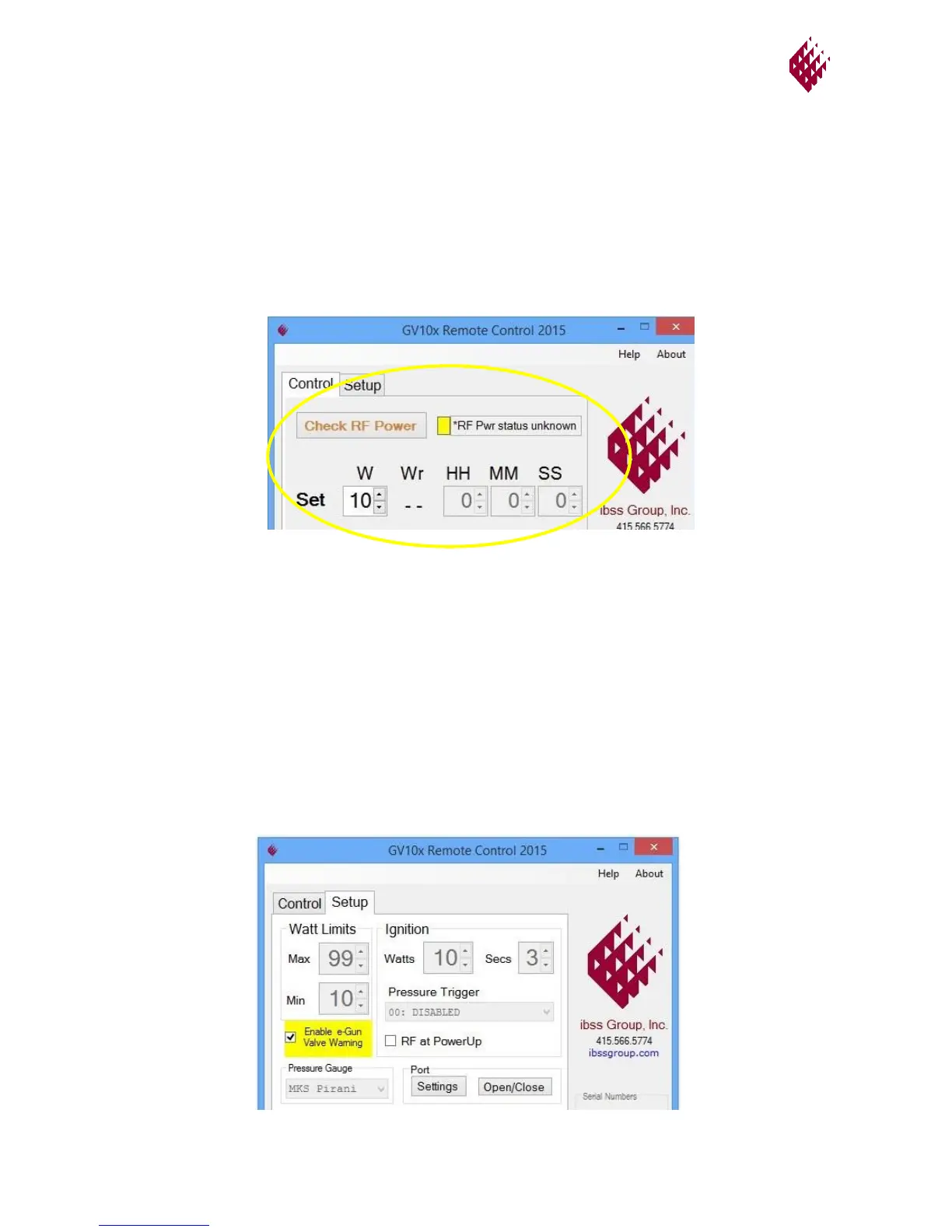

Figure 4-5b. GV10x-RC15 Control tab
Figure 4-5c. GV10x-RC15 Setup tab
