38
6
DSC OPERATION
Regardless of a GPS receiver (NMEA0183 ver. 2.0 or
3.01) connection, the current position/time information
appears in steps r and t. If the information is not nec-
essary to be changed, push [CHANNEL•ENTER] or
[16•C] several times to skip the data input steps.

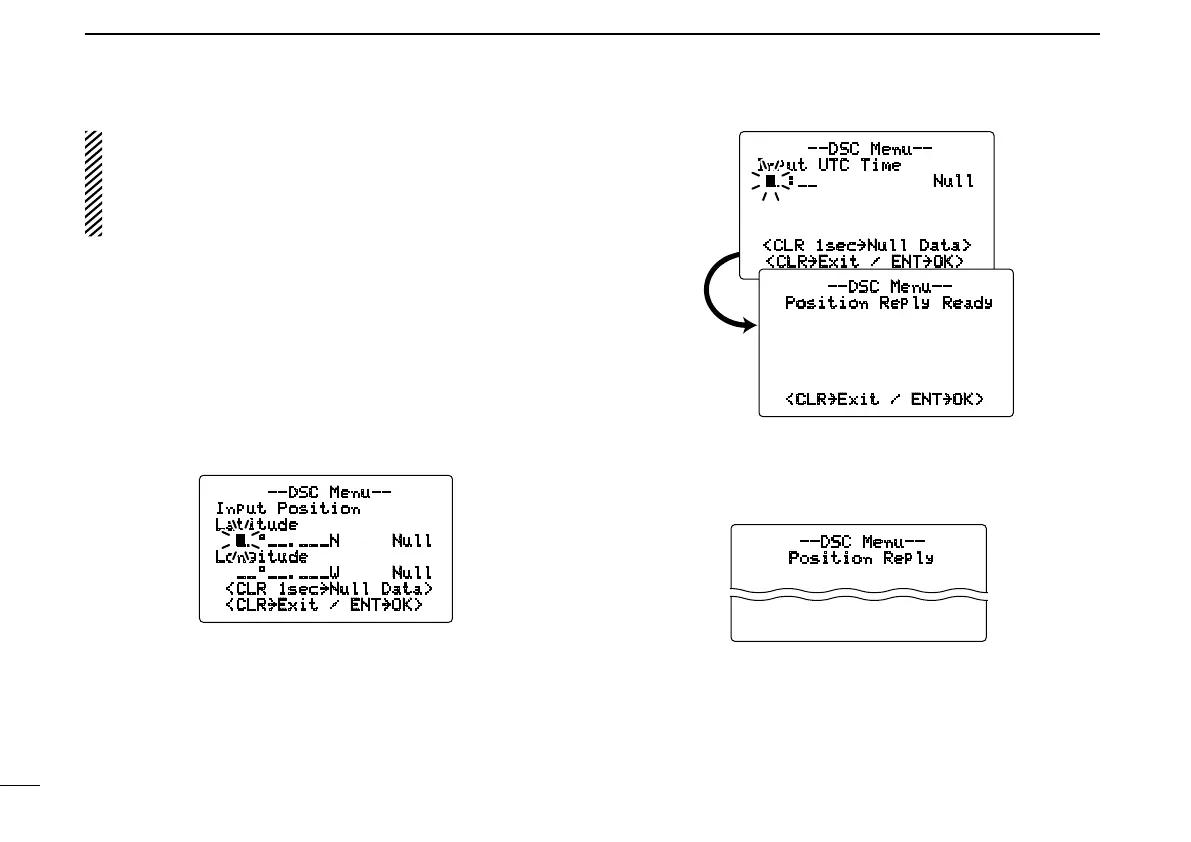

r The position information appears. Set your position (lati-
tude and longitude) data by rotating [CHANNEL].
 •Push[16•C] or [DIAL•DUAL/GRP] to move the cursor forward
or backward, respectively.
 •Rotate[CHANNEL] to edit N; North latitude or S; South latitude
when the cursor is on the ‘N’ or ‘S’ position, and W; West lon-
gitude or E; East longitude when the cursor is on the ‘W’ or ‘E’
position.
 •Push[CLR] for 1 sec. to clear the latitude/longitude data.
 •Push[CLR] to cancel and return to the DSC menu.
--DSC Menu--
Input Position
Latitude
__°__.___N Null
Longitude
__°__.___W Null
<CLR 1sec ˘ Null Data>
<CLR ˘ Exit / ENT ˘ OK>
t After setting the position data, push [CHANNEL•ENTER]
to set the current UTC time. Set the current UTC time by
rotating [CHANNEL], then push [CHANNEL•ENTER].
 •Push[16•C] or [DIAL•DUAL/GRP] to move the cursor forward
or backward, respectively.
 •Push[CLR] for 1 sec. to clear the UTC time data.
 •Push[CLR] to cancel and return to the DSC menu.
--DSC Menu--
Input UTC Time
__:__ Null
<CLR 1sec ˘ Null Data>
<CLR ˘ Exit / ENT ˘ OK>
--DSC Menu--
Position Reply Ready
<CLR˘Exit / ENT˘OK>
y Push [CHANNEL•ENTER] to transmit the position re-
quest reply call to the selected station.
 •Yourpositiondataistransmitted,when[CHANNEL•ENTER] is
pushed.
--DSC Menu--
Position Reply
Transmitting
