Icom IC-M94D User Manual

46
10
AIS RECEIVER
10
15
18
13
11
16
14
12
17
1
7
4
2
8
5
3
9
6

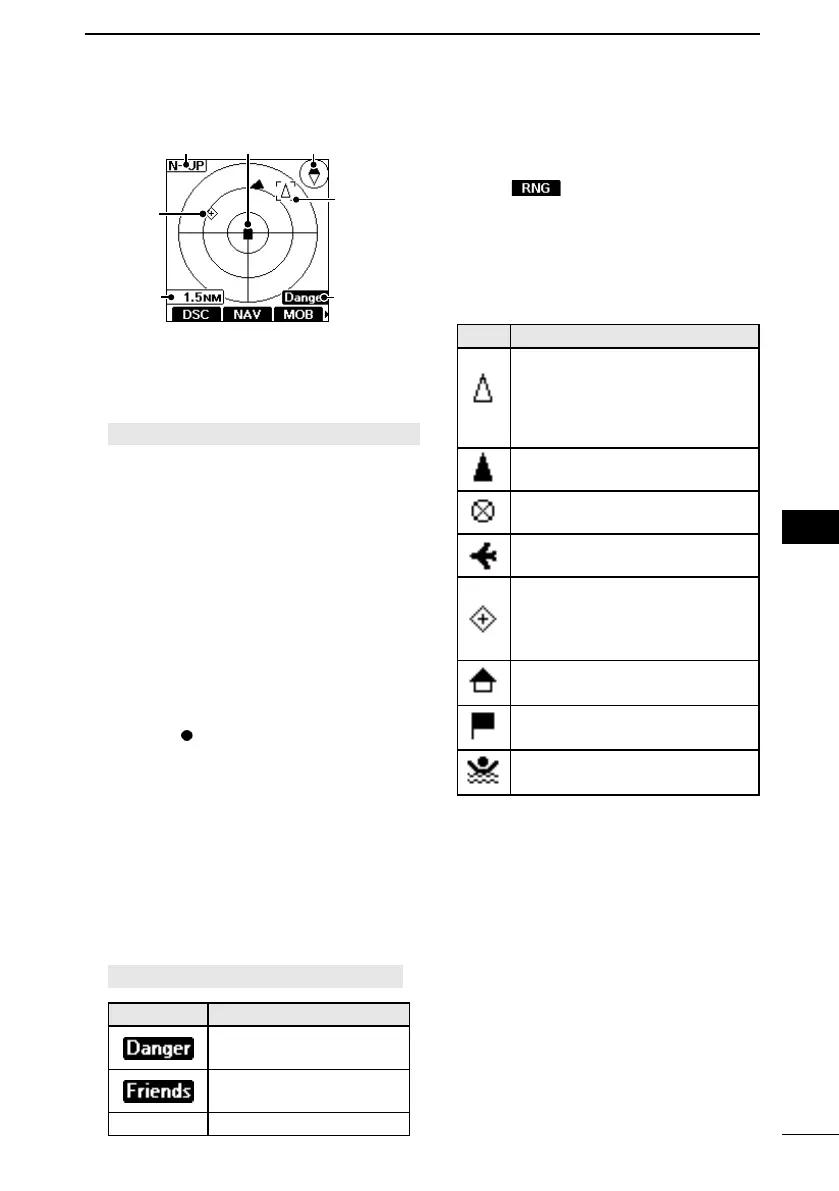

D Plotter screen
21 3
7
5
6
4
1DISPLAY TYPE
Displays the selected display type. You
can select the display type in “North/
Course Up” on the Menu screen. (p.
52 )
[MENU] > Settings > AIS > North/Course Up
L When “N-UP” is displayed, the top of
the plotter screen represents North.
L When “C-UP” is displayed, the top
of the plotter screen represents the
direction your vessel is heading.
2YOUR VESSEL ICON
Displayed in the center of the screen.
L When “N-UP” is displayed, the vessel icon
automatically points in the direction your
vessel is heading, in 22.5 degree steps.
L When “C-UP” is displayed, the vessel
icon constantly points to the top of the
plotter screen.
L When your vessel moves less than 2
knots,
is displayed.
3COMPASS
Displays the bearing information.
4TARGET BOX
Displays the selected AIS target.
L When a target box is displayed, push
[ENT] to display the details on of the
selected AIS target.
5DISPLAY FILTER INDICATOR
Displayed when the type of AIS targets on
the plotter screen are ltered. (p. 52)
[MENU] > Settings > AIS > Target Display
Indicator Description
Only Danger targets are
displayed. (p. 48)
Only Friend targets are
displayed. (p. 48)
No indicator All targets are displayed.
6DISPLAY RANGE
• Displays the selected display range.
• Push
to select a display range
(
0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12
NM (nautical miles)).
7TARGET ICON
Targets whose AIS signal are received are
displayed with icons. The icon may di󰀨er,
depending on the target type or its status.
Icon Description
AIS target: Vessel, Search and
Rescue (SAR) vessel
L The tip of the target triangle
automatically points in the
direction it’s heading.
AIS target: Vessel (Friend)
AIS target: AIS-SART, AIS-MOB,
EPIRB-AIS
AIS target: Search and Rescue
(SAR) aircraft
AIS target: Aids to Navigation
(AtoN),
Aids to Navigation
(AtoN) virtual
AIS target: Base station
Waypoint
L Displayed only during navigation.
MOB
L A vessel is regarded as a “Lost target,”
and a black line displays on the target
icon after a specied period of time
has passed since the vessel last
transmitted data (p. 61). The Lost
target icon disappears from the plotter
screen when the preset period of
time has passed after the vessel was
regarded as a “Lost target.” Ask your
dealer for details.
