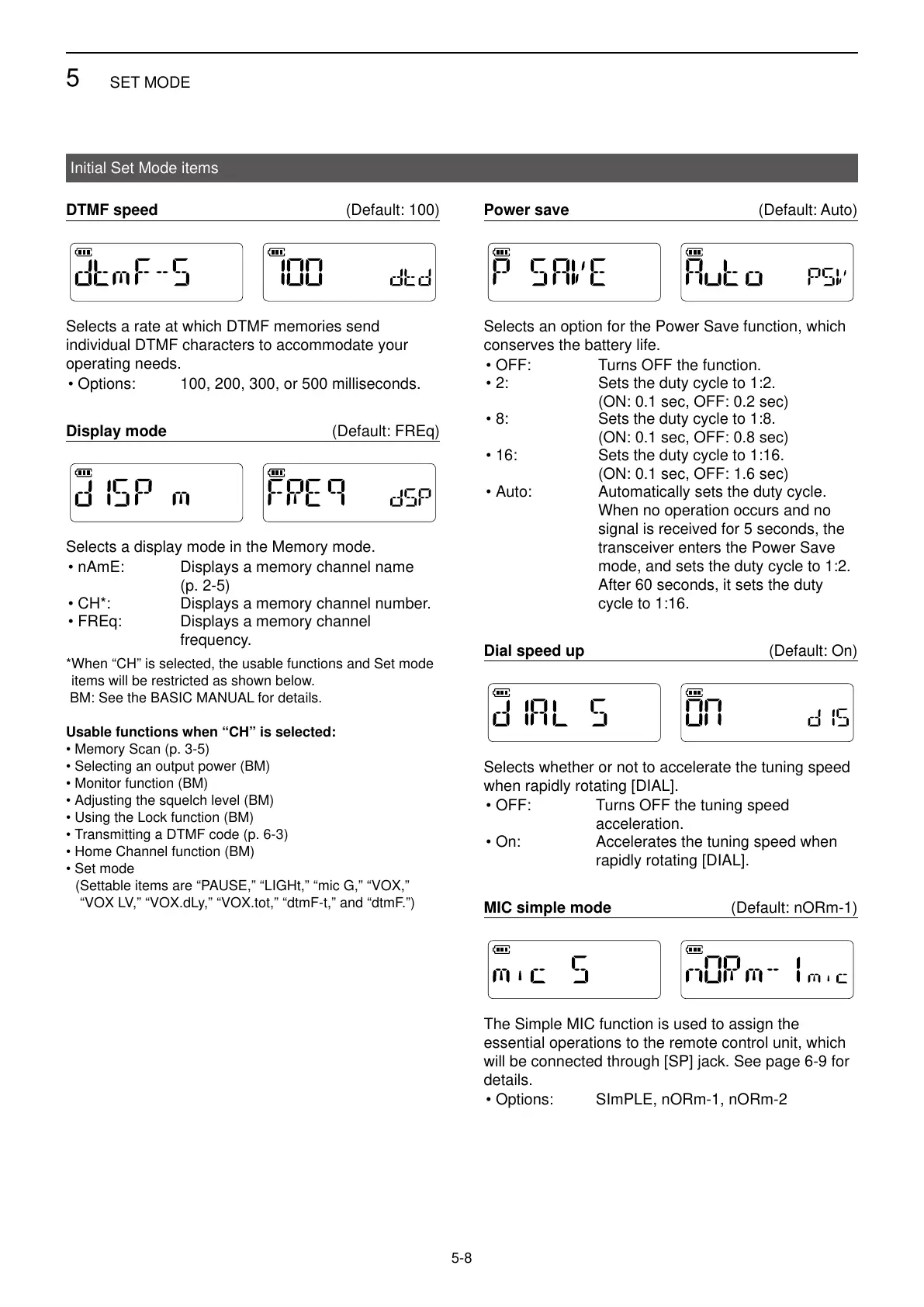

5
SET MODE
5-8
Initial Set Mode items
DTMF speed (Default: 100)
Selects a rate at which DTMF memories send
individual DTMF characters to accommodate your
operating needs.
• Options: 100, 200, 300, or 500 milliseconds.
Display mode (Default: FREq)
Selects a display mode in the Memory mode.
• nAmE: Displays a memory channel name
(p. 2-5)
• CH*: Displays a memory channel number.
• FREq: Displays a memory channel
frequency.
* When “CH” is selected, the usable functions and Set mode
items will be restricted as shown below.
BM: See the BASIC MANUAL for details.
Usable functions when “CH” is selected:
• Memory Scan (p. 3-5)
• Selecting an output power (BM)
• Monitor function (BM)
• Adjusting the squelch level (BM)
• Using the Lock function (BM)
• Transmitting a DTMF code (p. 6-3)
• Home Channel function (BM)
• Set mode
( Settable items are “PAUSE,” “LIGHt,” “mic G,” “VOX,”
“VOX LV,” “VOX.dLy,” “VOX.tot,” “dtmF-t,” and “dtmF.”)
Power save (Default: Auto)
Selects an option for the Power Save function, which
conserves the battery life.
• OFF: Turns OFF the function.
• 2: Sets the duty cycle to 1:2.
(ON: 0.1 sec, OFF: 0.2 sec)
• 8: Sets the duty cycle to 1:8.
(ON: 0.1 sec, OFF: 0.8 sec)
• 16: Sets the duty cycle to 1:16.
(ON: 0.1 sec, OFF: 1.6 sec)
• Auto: Automatically sets the duty cycle.
When no operation occurs and no
signal is received for 5 seconds, the
transceiver enters the Power Save
mode, and sets the duty cycle to 1:2.
After 60 seconds, it sets the duty
cycle to 1:16.
Dial speed up (Default: On)
Selects whether or not to accelerate the tuning speed
when rapidly rotating [DIAL].
• OFF: Turns OFF the tuning speed
acceleration.
• On: Accelerates the tuning speed when
rapidly rotating [DIAL].
MIC simple mode (Default: nORm-1)
The Simple MIC function is used to assign the
essential operations to the remote control unit, which
will be connected through [SP] jack. See page 6-9 for
details.
• Options: SImPLE, nORm-1, nORm-2
To Next Page
