INSTALLATION AND CONNECTIONS
New2001
8
INSTALLATION AND CONNECTIONS
■ Controller installation
D When installing into your vehicle
You can install the controller on the dashboard or the console
of your vehicle with optional MBA-2
c o n t r o l l e r b r a c k e t
and the MBF-1
m o u n t i n g b a s e . (p. 81)

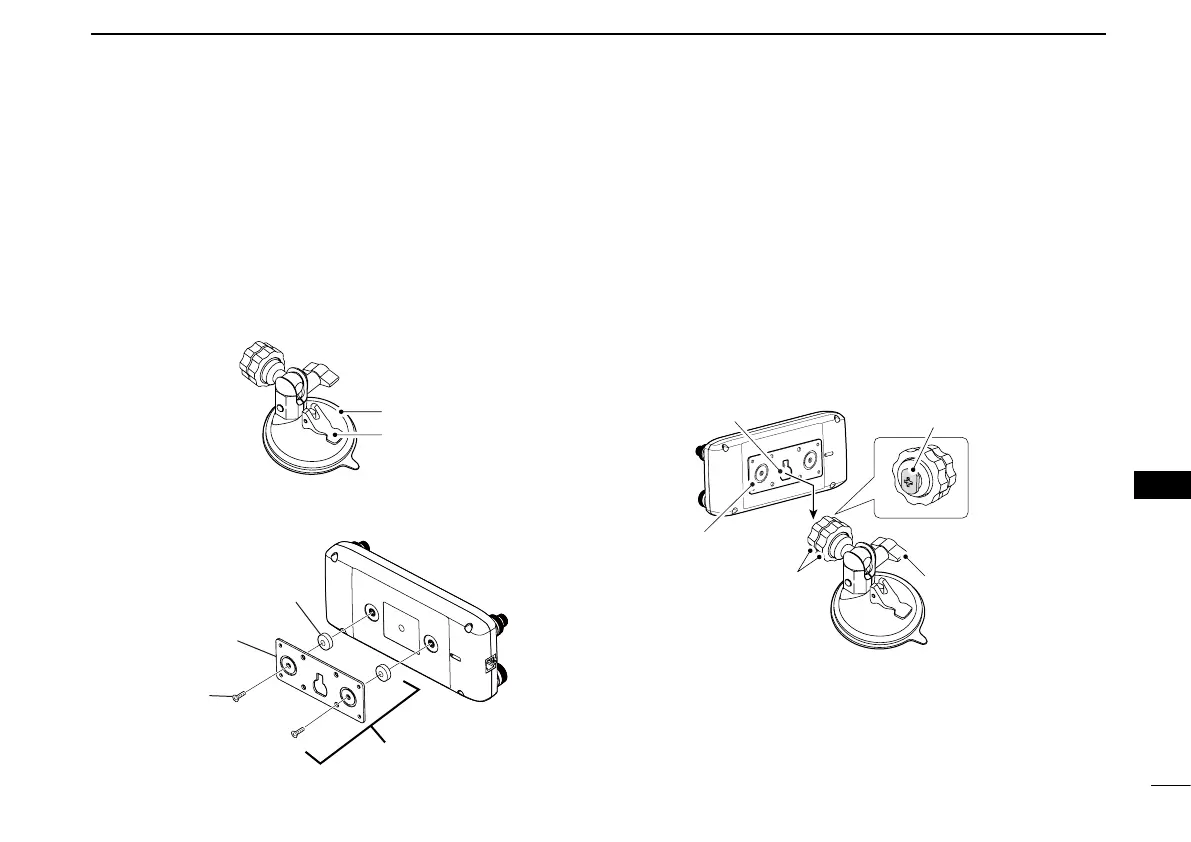

Attach the MBF-1 on the dashboard or the console. q
• See the MBF-1 instruction manual for details.
MBF-1
Suction pad
Base lever
Attach the MBA-2 to the controller w ’s rear panel with the
supplied two screws as shown below.
Magnet
Controller
bracket
Screw
(M2.6×8)
MBA-2
Slide the MBA-2 e ’s guide down over the MBF-1’s locking
head, as shown below.
• Be sure the locking head ts into the slot at the top of the
guide.
Tighten the lock knob to securely attach the Controller. r
Adjust the viewing angle of the remote controller, then t
tighten the adjustment knob.
MBA-2
Lock knob
Adjustment knob
Locking head
(MBF-1)
Guide
