INSTALLATION AND CONNECTIONS
New2001 New2001
Controller installation (Continued) ■

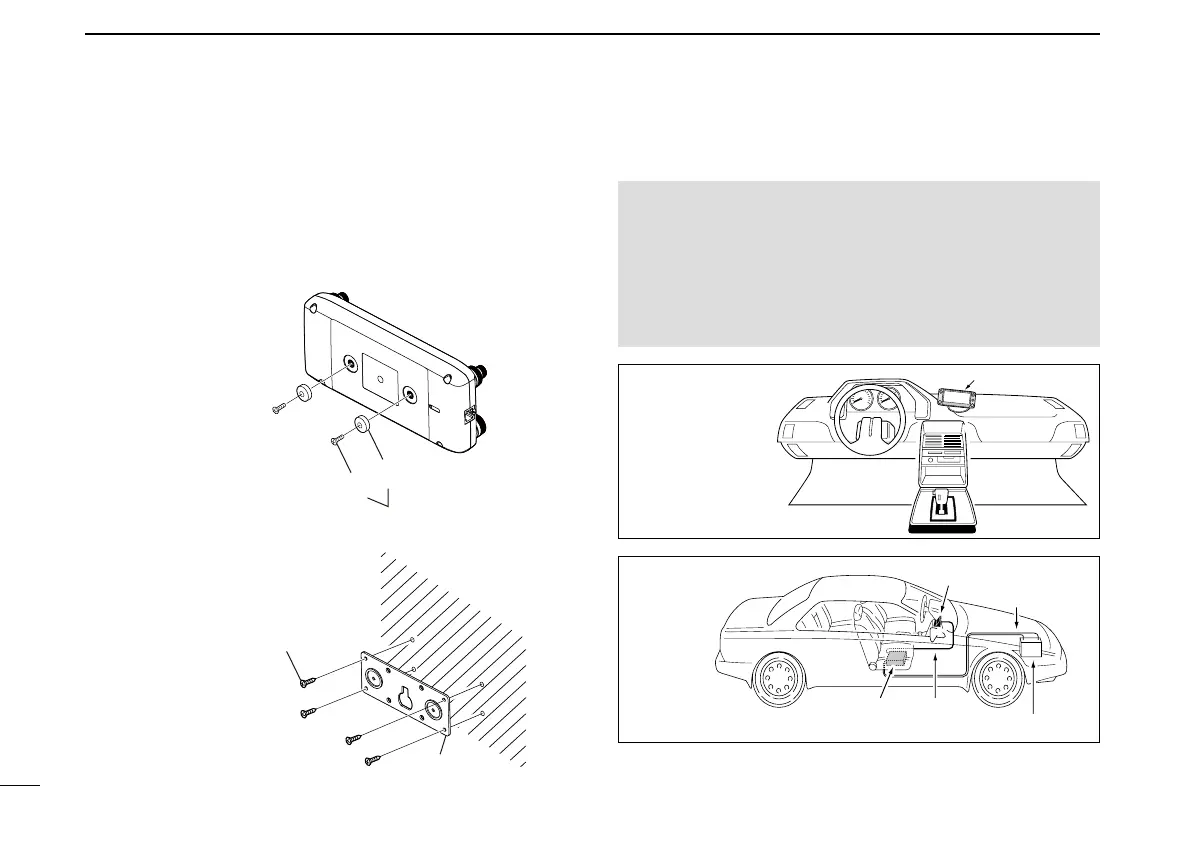

D When installing to a flat surface
You can install the controller on a flat surface with the optional
MBA-2
c o n t r o l l e r b r a c k e t .
When attaching the bracket onto a wall, use a self-tapping
screw* (3 mm(d)).
*Purchase separately
Magnet
Screw
Supplied with the MBA-2
Attach the magnet to the
Controller bracket
Screw (3 mm(d))
Purchase separately
MBA-2
When attaching the bracket
onto a wall
■ Installing in a vehicle
CAUTION: NEVER place the main unit or remote controller
where normal operation of the vehicle may be hindered or
where it could cause bodily injury.
CAUTION: NEVER place the main unit or remote controller
where air bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where
hot or cold air blows directly onto it.
Controller
•Remotecontroller
installation
Controller
DC power cable
Battery (12V)
Controller
cable
Main
unit
•Mainunit
installation
