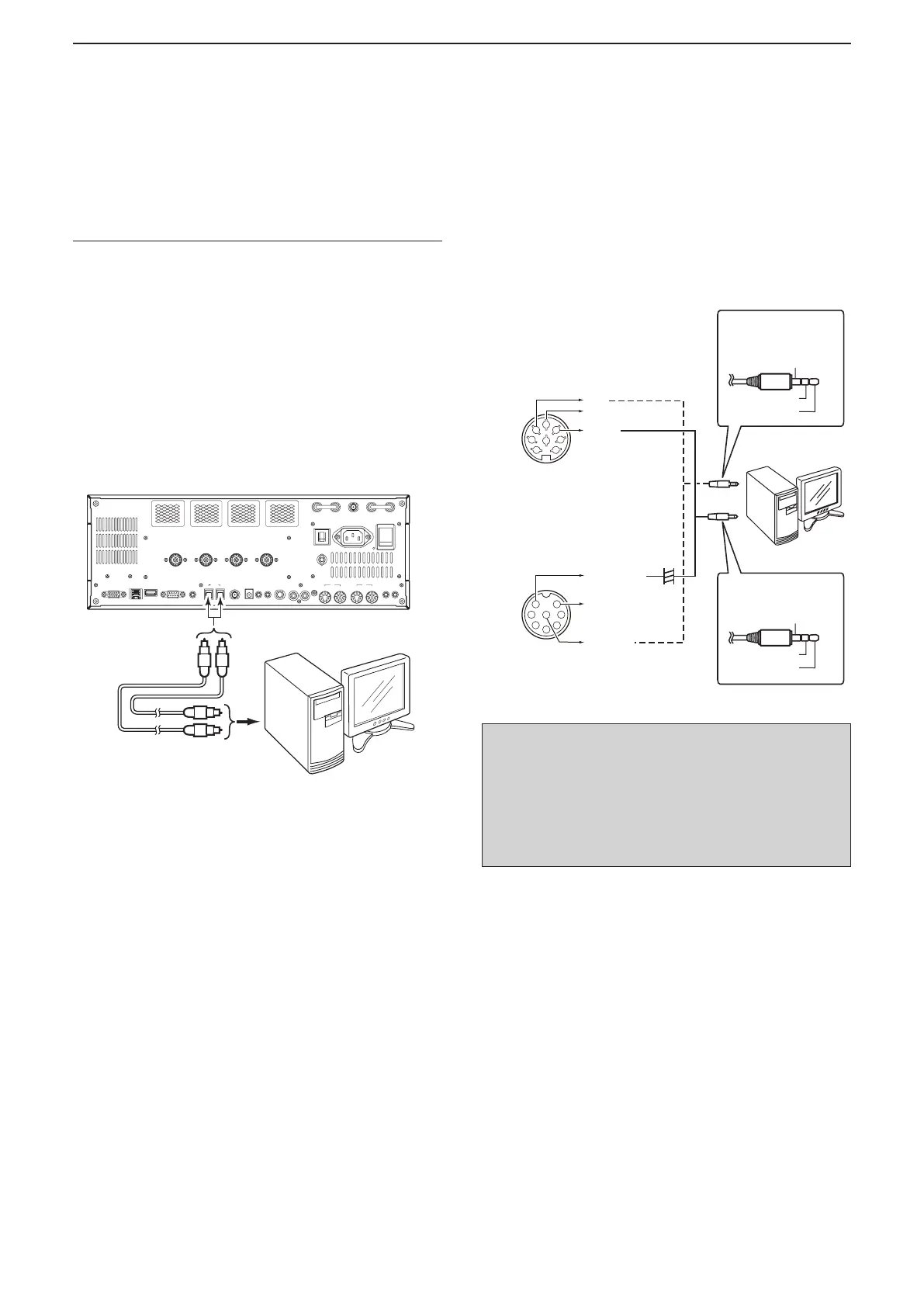

WHEN CONNECTING TO THE NETWORK THROUGH A PC
20
D When connecting to the radio’s [RS-232C] port (Continued)
■ Conncting the radio to the Base station’s PC
3. Connect an audio system
Connect an audio cable between the PC’s audio port
and the radio’s [S/P DIF] jack, [ACC] socket or [MIC]
connector to enables audio communication between
them.
See the radio’s instruction manual for details on the
radio’s connector.
• Using the [S/P DIF] jack
Radio PC
S/P DIF OUT (Output)  S/P DIF IN (Input)
S/P DIF IN (Input)  S/P DIF OUT (Output)
PC
MAINSUB
ACC 1
ACC 2
ACC 1ACC 2
INOUT
RS
-
232C
A
B
S/P DIF
EXT
-
SP
S/P DIF digital
cable
Radio (Rear panel)
• Using other than the [S/P DIF] jack
Radio PC
AF (Output)  LINE IN/MIC IN (Input)
MOD (Input)  LINE OUT (Output)
（Rear panel view）
• Connect to the [ACC] socket
• Connect to the [MIC]
connector
（Front panel view）
1
2
3
4
5
6
7
8
MOD
AF
1
2
3
4
5
6
7
8
AF output
PC
GND
MOD
Not used
GND
GND
Connect to the
PC’s LINE OUT
GND
AF
Not used
Connect to the
PC’s LINE IN or
MIC IN
Microphone
input
10 µF/16 V
+
• When using the [MIC] connector, NEVER
directly connect an audio cable between the
radio’s Microphone input and PC. It can a
cause malfunction without adding the
Electrolytic capacitor, as illustrated above.
• NEVER connect a monaural plug to the PC’s
LINE OUT. It can cause a malfunction.
