Temporarily Defaulting the IP Address
If the currently configured IP address is unknown it can be temporarily set to 192.168.111.222 so that you can
connect to the web interface to view and/or change it.
This defaults the IP address for as long as power is applied, but does not save the change permanently. Once the
link is removed and power is cycled to the unit the configured IP address is used.

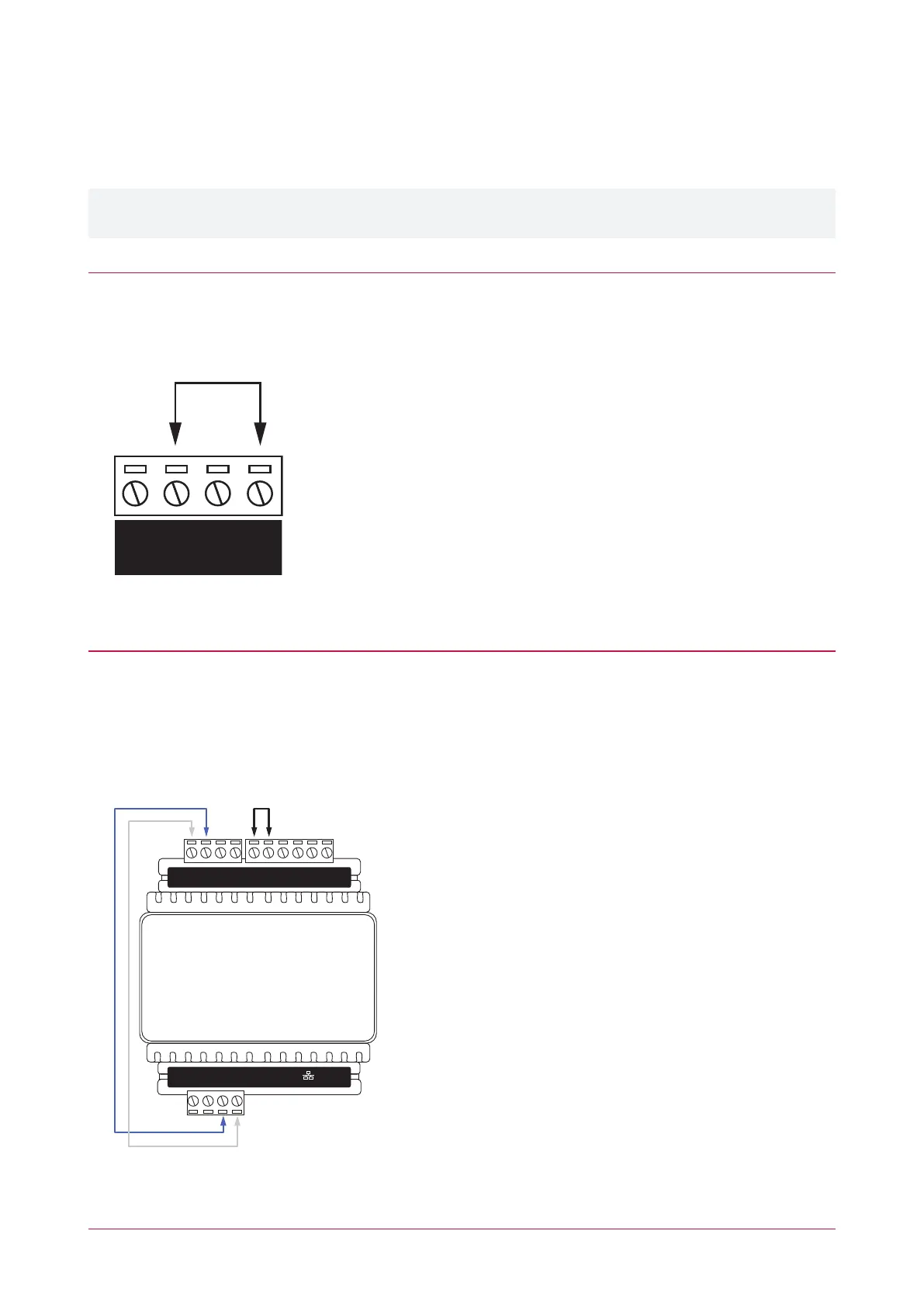

Defaulting the IP Address of a Two Door Controller
1. Remove power to the controller by disconnecting the 12V DC input.
2. Wait until the power indicator is off.
3. Connect a wire link between Reader 1 D0 input and Reader 1 L1 output.
4. Power up the controller. Wait for the status indicator to begin flashing steadily.
Defaulting the IP Address of a Single Door Controller
1. Remove power to the controller by disconnecting the 12V DC input.
2. Wait until the power indicator is off.
3. Connect a wire link between NA of the module network and SA of the reader network, and between NB of the
module network and SB of the reader network.
4. Connect Input 2 to ground.
N+ N-
NA NB
RS485 NETWORK12VDC IN/OUT
ETHERNET
RS485 NETWORK
SB SA S- S+ Z2 V- Z1 NC C NO
12VDC OUT INPUT 2 INPUT 1 RELAY 1
5. Power up the controller. Wait for the status indicator to begin flashing steadily.
Protege WX Integrated System Controller | Configuration Guide 36
