Installation and Servicing
SECTION 1 - GENERAL
Underside View - Dimensions to Wall
EXTERNAL ENCLOSURE
43,5 65,0 75,0 56,4 37,560,329,627,7
CH FLOW
DATA PLATE
DHW OUTLET
COND DRAIN
GAS INLET
DHW INLET
CH RETURN
PRV
902
425
312
450
625
100
100 100
150

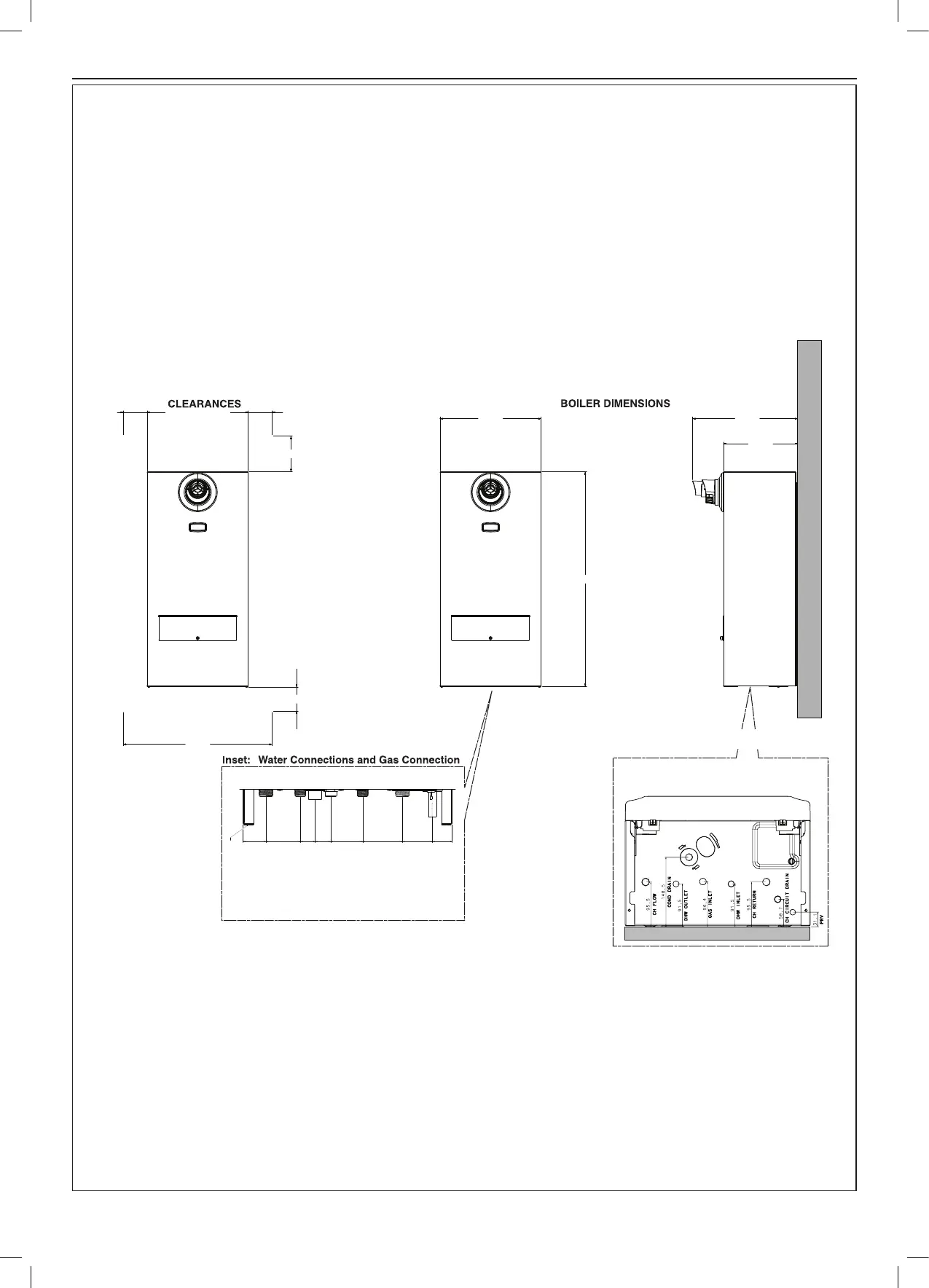

1.17 BOILER DIMENSIONS, SERVICES & CLEARANCES - EXTERNAL
The boiler connections are made on the boiler connection tails.
Refer to Section 2.19.
The following minimum clearances must be maintained for
operation and servicing.
Additional space will be required for installation, depending upon
site conditions.
all dimensions in mm
