FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730 5-27
5: U SER C OMMUNICATION I NSTRUCTIONS

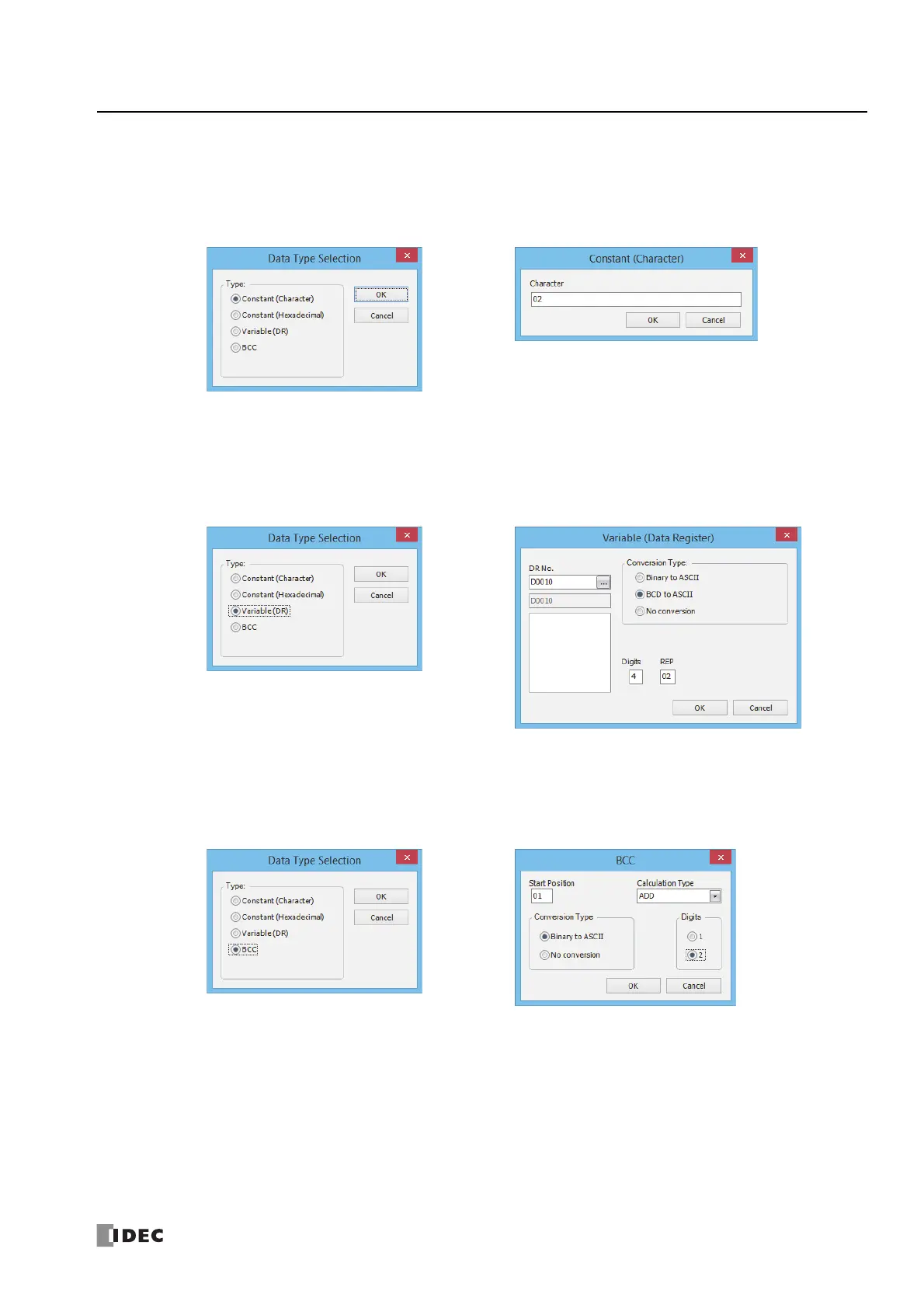

2. Check that TXD is selected in the Type box and select Port 1 in the Port No. box. Then, click Insert.
The Data Type Selection dialog box appears. You will program source device S1 using this dialog box.
3. Click Constant (Hexadecimal) in the Type box and click OK. Next, in the Constant (Hexadecimal) dialog box, type 02 to
program the start delimiter STX (02h). When finished, click OK.
4. Since the TXD (Transmit) dialog box reappears, repeat the above procedure. In the Data Type Selection dialog box, click
Variable (DR) and click OK. Next, in the Variable (Data Register) dialog box, type D0010 in the DR No. box and click
BCD to
ASCII to select the BCD to ASCII conversion. Enter 4 in the Digits box (4 digits) and 2 in the REP box (2 repeat
cycles). When finished, click OK.
5. Again in the Data Type Selection dialog box, click BCC and click OK. Next, in the BCC dialog box, enter 1 in the
Calculation Start Position box, select ADD for the Calculate Type, click Binary to ASCII for the Conversion Type, and
click 2 for the Digits. When finished, click OK.
