Using J1939 Communication
The CAN J1939 All-in-One Type can be connected to a J1939 communication network using the CAN port and it can communicate
with other J1939 communication-compatible devices. Messages that conform to the SAE J1939 standard can be sent and received.
For details on J1939 communication, see "J1939 Communication" on page 8-1.
Supported ports

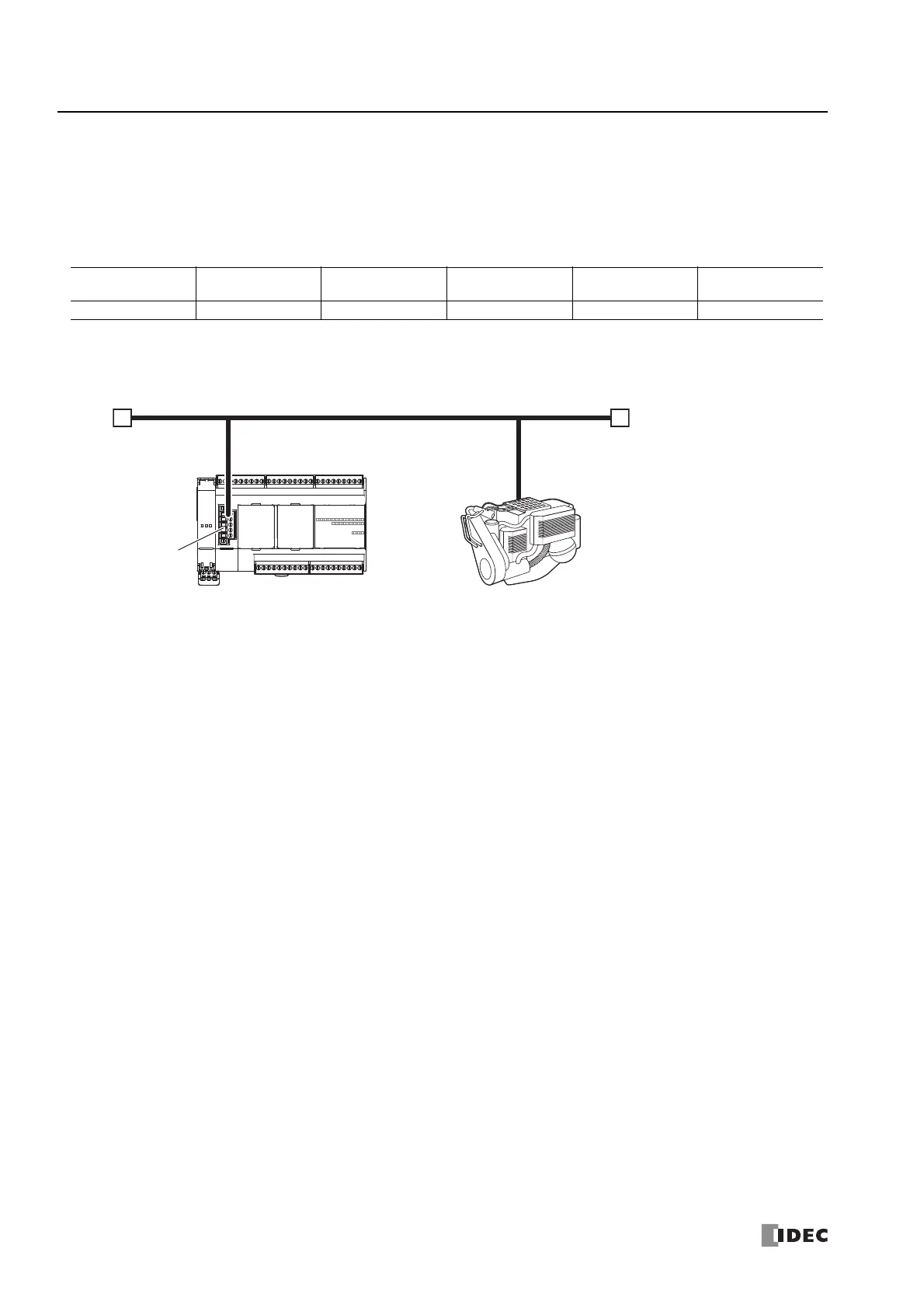

■ CAN Port Usage Example
This example shows the FC6A Series MicroSmart communicating with a J1939-compatible engine. The CAN port of the CAN J1939
All-in-One Type is connected to the engine.
USB Port Serial Port 1 Ethernet Port 1
Communication
Cartridge
CAN Port
HMI-Ethernet
Port
No No No No Yes No
Engine
FC6A Series MicroSmart
(CAN J1939 All-in-One Type)
CAN Port
CAN
