4: M
AINTENANCE
C
OMMUNICATION
4-4 FC6A S
ERIES
M
ICRO
S
MART
A
LL
-
IN
-O
NE
T
YPE
C
OMMUNICATION
M
ANUAL
FC9Y-B1730
Maintenance Communication via Port 1
Using Serial Port 1 on the FC6A Series MicroSmart, it is possible to connect to a computer on which WindLDR is installed or an
operator interface, and monitor and change device values, download and upload user programs, and download system software.
For details on communication cables, see Appendix "Cables" in the "FC6A Series MicroSmart All-in-One Type User’s Manual".
Port 1 maintenance communication specification
For details on the operation of maintenance communication functions, see the following in the "FC6A Series MicroSmart All-in-One
Type User’s Manual".
• Monitor/change device values: Chapter 4 "Monitor Operation"
• Downloading/uploading user programs: Chapter 4 "Download Program"
• Downloading system software: Appendix "Upgrade FC6A Series MicroSmart System Software"
Programming WindLDR
Configure the settings for maintenance communication.
1. From the WindLDR menu bar, select Configuration > Comm. Ports.
The Function Area Settings dialog box appears.

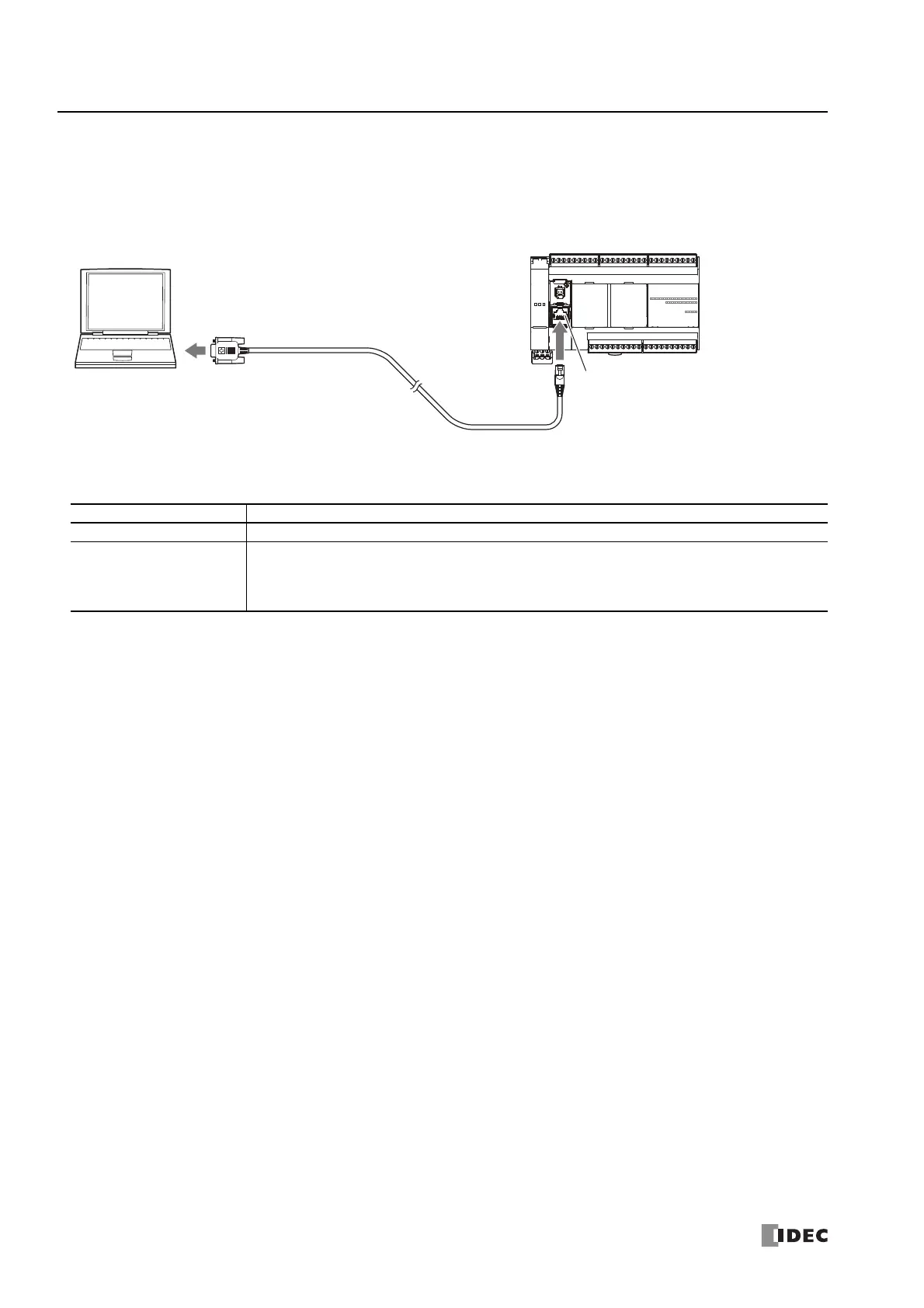

Serial Port 1
(Port 1)
Computer
Serial Communication Port
(RS232C)
Connection Cable
FC6A Series MicroSmart
Item Specifications/Functions
Cable FC6A-KC2C: O/I communication cable (D-sub 9-pin connector style, cable length: 5 m)
Maintenance communication
functions
Monitoring/changing device values
Downloading/uploading user programs
Downloading system software
Run-time download
To Next Page
