Maintenance Communication via Ethernet Port 1
Network devices such as computers or IDEC operator interfaces can communicate with FC6A Series MicroSmart via Ethernet port
1. External devices on the network can monitor or change the device values and download or upload user programs.
It is possible to use the maintenance communication server and other communications simultaneously by assigning a separate
communication function such as a maintenance communication server or Modbus TCP communication to each of the three
connections on the FC6A Series MicroSmart.
Maintenance Communication Specifications for the Ethernet Port 1
For details on the operation of maintenance communication functions, see the following in the "FC6A Series MicroSmart All-in-One
Type User’s Manual".
• Monitor/change device values: Chapter 4 "Monitor Operation"
• Download/upload user programs: Chapter 4 "Download Program"
• Downloading system software: Appendix "Upgrade FC6A Series MicroSmart System Software"

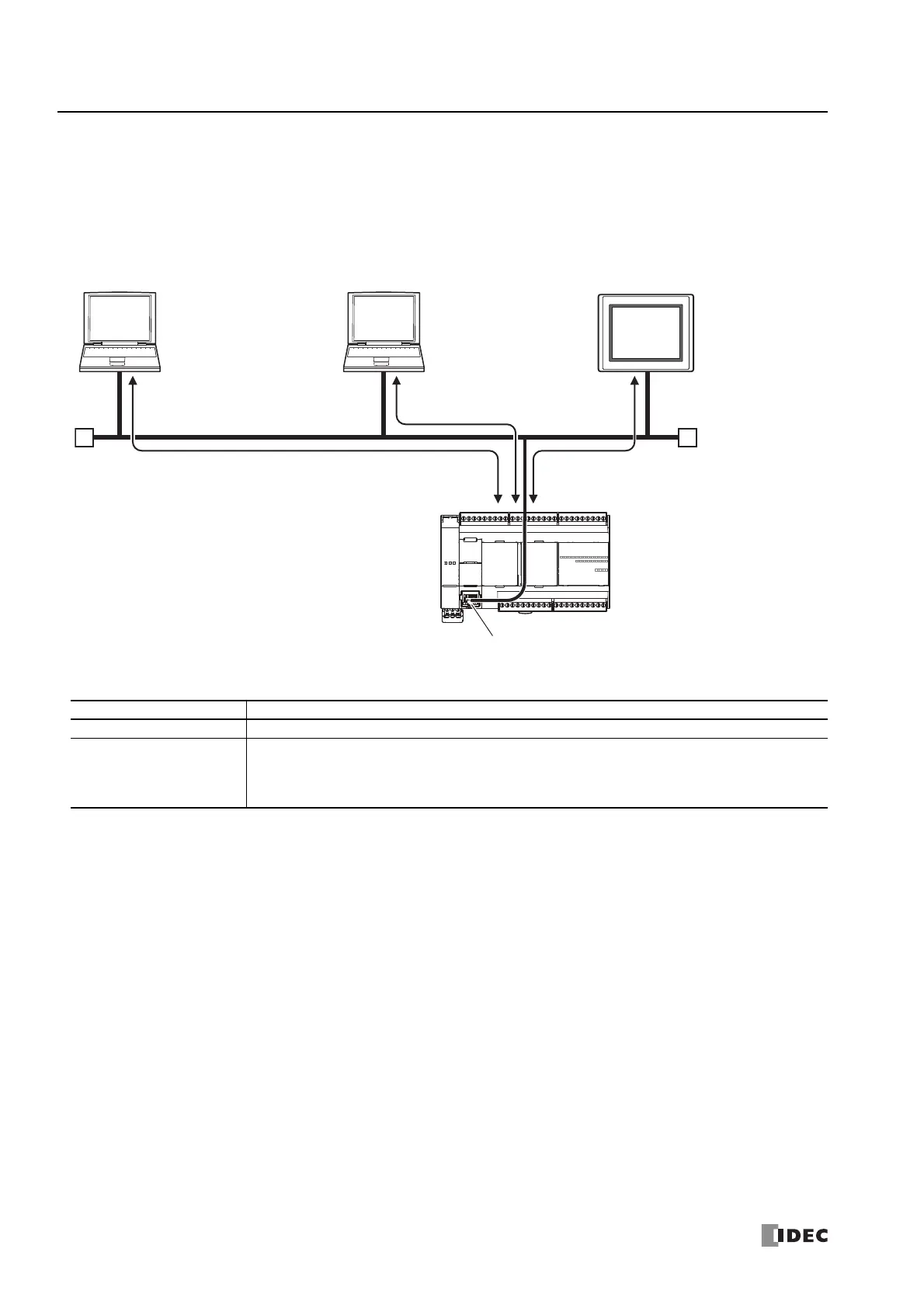

Ethernet
Maintenance
Communication Server
Computer
WindLDRWindLDR
Computer Operator Interface
Connection 1
Connection 2
Connection 3
Ethernet Port 1
FC6A Series MicroSmart
Item Specifications/Functions
Cable LAN cable (Cat 5. STP)
Maintenance communication
functions
Monitor/change device values
Download/upload user programs
Downloading system software
Run-time download
To Next Page
