FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730 5-3
5: U SER C OMMUNICATION I NSTRUCTIONS

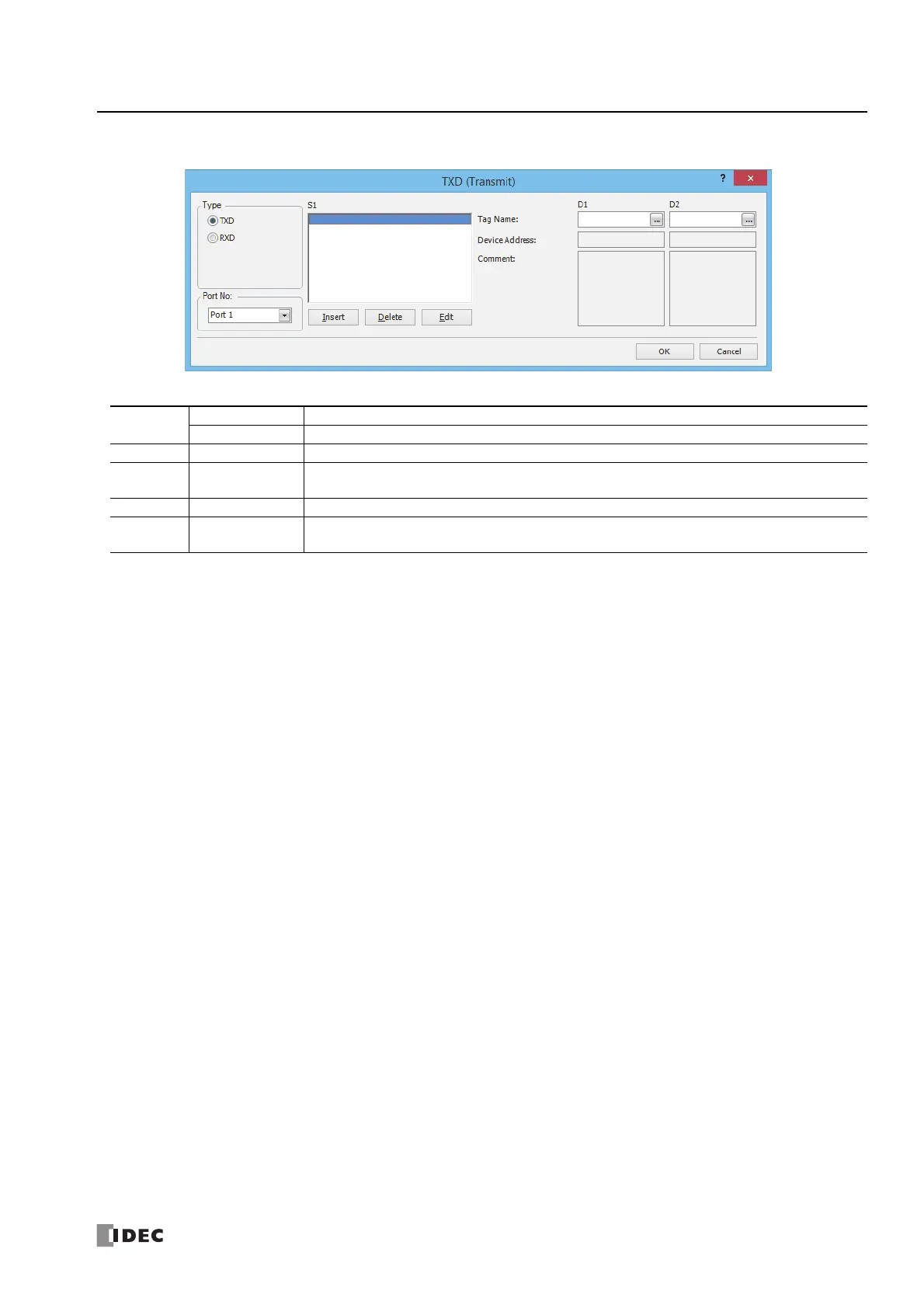

User Communication Transmit Instruction Dialog Box in WindLDR
Selections and Devices in Transmit Instruction Dialog Box
Type
TXD Transmit instruction
RXD Receive instruction
Port No. Port 1 - Port 3 Transmit user communication from port 1 (TXD1) through port 3 (TXD3)
S1 Source 1
Enter the data to transmit in this area.
Transmit data can be constant values (character or hexadecimal), data registers, or BCC.
D1 Destination 1 Transmit completion output can be an output or internal relay.
D2 Destination 2
Transmit status register can be data register D0000-D7998 or D10000-D55998.
The next data register stores the byte count of transmitted data.
