FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730 8-7
8: J1939 C OMMUNICATION
J1939 Communication Settings
This section describes the operation procedure and details about the items related to J1939 communication.
Programming WindLDR
Configure J1939 communication according to the usage environment.

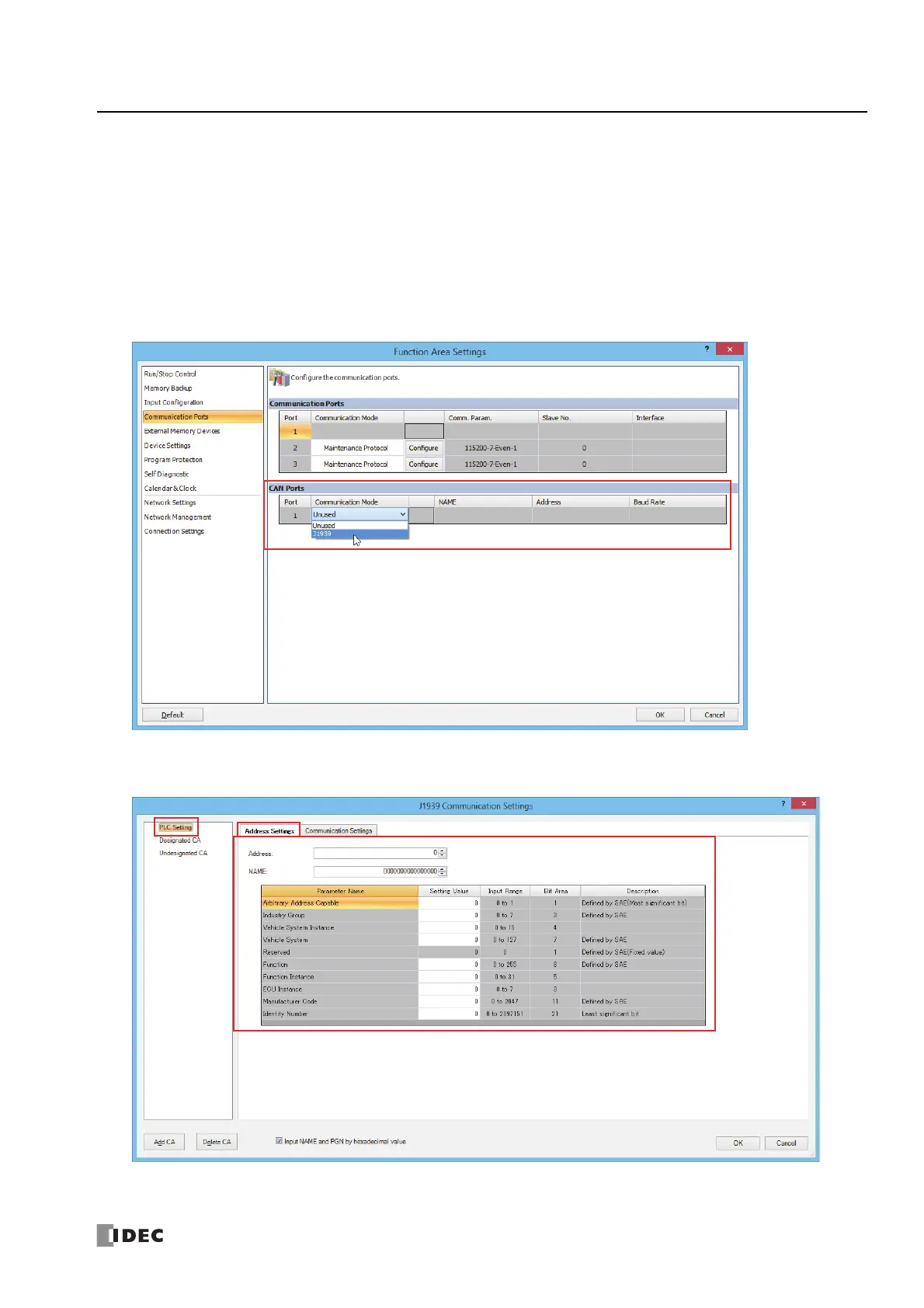

1. On the Configuration tab, in the Function Area Settings group, click Comm. Port.
The Function Area Settings dialog box is displayed.
2. Select J1939 from the CAN port group communication mode.
The J1939 Communication Settings dialog box is displayed.
3. Under PLC Setting, on the Address Settings tab, set the local address, device name (NAME), and CA address table.
Set the local address and device name (NAME).
