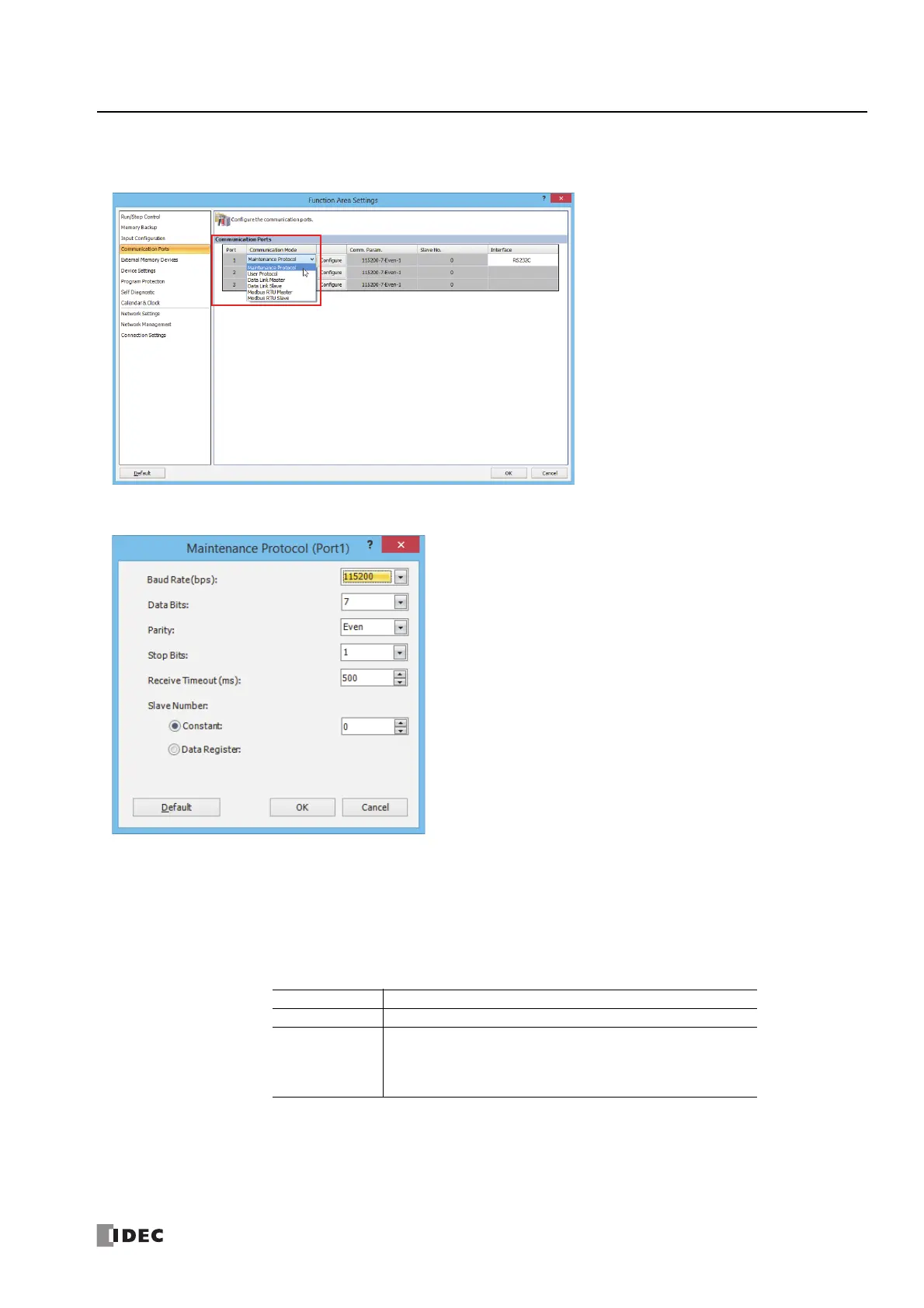

2. Click Communication Mode for port 1 and select Maintenance Protocol.
The Maintenance Protocol (Port1) dialog box appears.
3. Configure the parameters to match the communication settings of the computer or operator interface.
4. Click OK.
Configuring the maintenance communication for the expansion communication port is now complete.
Baud Rate (bps): 115200 bps (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200)
Data Bits: 7 (7 or 8)
Parity: Even (None, Even, Odd)
Stop Bits: 1 (1 or 2)
Receive Timeout (ms): 500 (10 to 2550)
Slave Number: 0 (0 to 31)
Slave number can be specified by either a constant or a data register.
Type Details
Constant Set within the range of 0 to 31
Data register
Store the slave numbers 0 to 31 in the following special data registers
Port 1: D8100
Port 2: D8102
Port 3: D8103
