5: U SER C OMMUNICATION I NSTRUCTIONS
5-30 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730

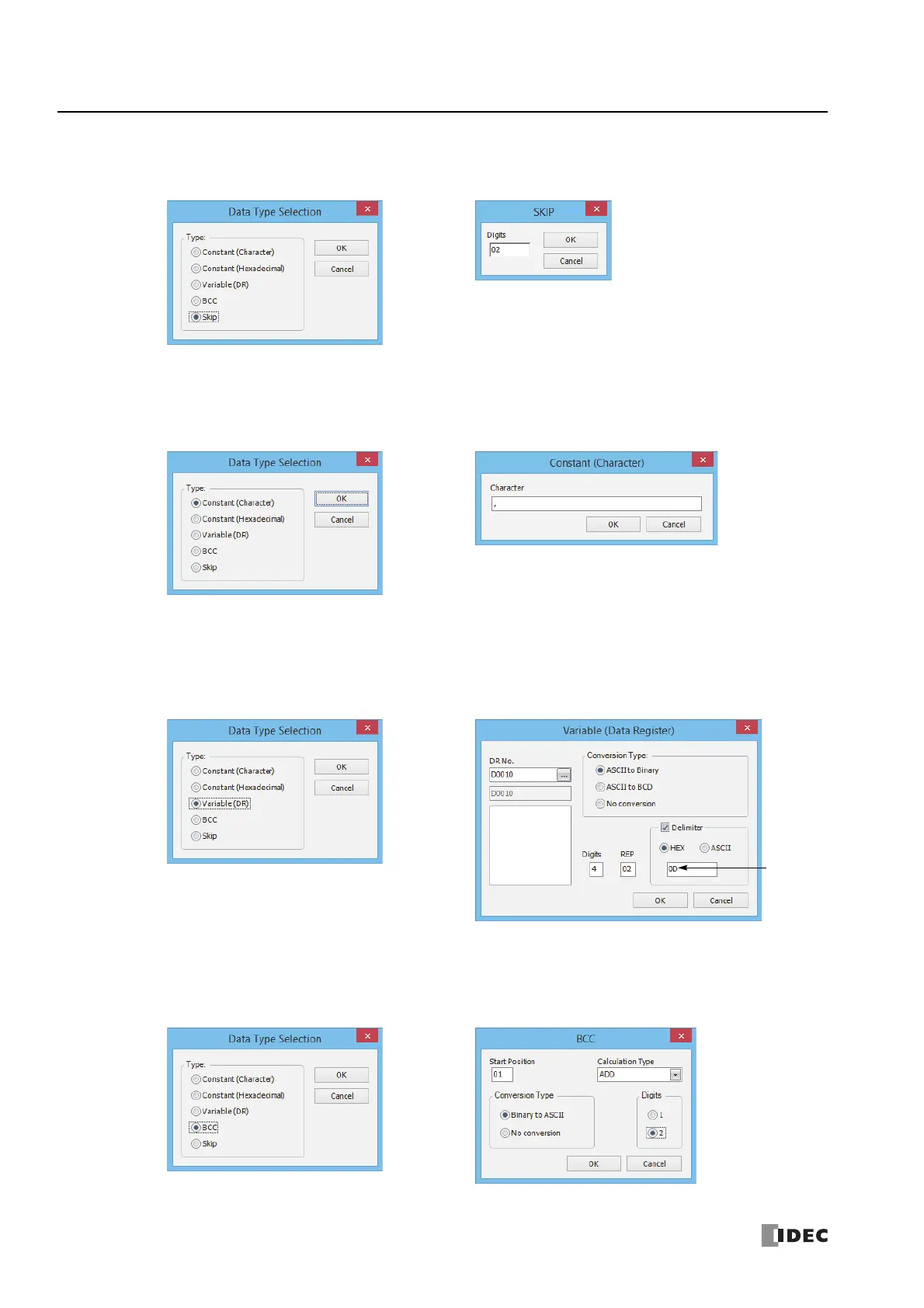

4. Since the RXD (Receive) dialog box reappears, repeat the above procedure. In the Data Type Selection dialog box, click
Skip and click OK. Next, in the Skip dialog box, type 02 in the Digits box and click OK.
5. Again in the Data Type Selection dialog box, click Constant (Character) and click OK. Next, in the Constant
(Character) dialog box, type
, (2Ch) in the Character box to program a comma as a constant to verify. When finished, click
OK.
6. Again in the Data Type Selection dialog box, click Variable (DR) and click OK. Next, in the Variable (Data Register)
dialog box, type D10 in the DR No. box and click ASCII to Binary to select ASCII to binary conversion. Enter 4 in the Digits
box (4 digits) and 2 in the REP box (2 repeat cycles). Click Variable, select HEX, and type 0D
to designate a delimiter. When
finished, click OK.
7. Again in the Data Type Selection dialog box, click BCC and click OK. Next, in the BCC dialog box, enter 01 in the
Calculation Start Position box, select ADD for the Calculation Type, click Binary to ASCII for the Conversion Type,
and click 2 for the Digits. When finished, click OK.
Delimiter
