5: U SER C OMMUNICATION I NSTRUCTIONS
5-38 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730
Programming WindLDR (User Communication Client)
To use the user communication client, configure the user client communication settings in the Function Area Settings dialog box
and then download the user program to the FC6A Series MicroSmart.

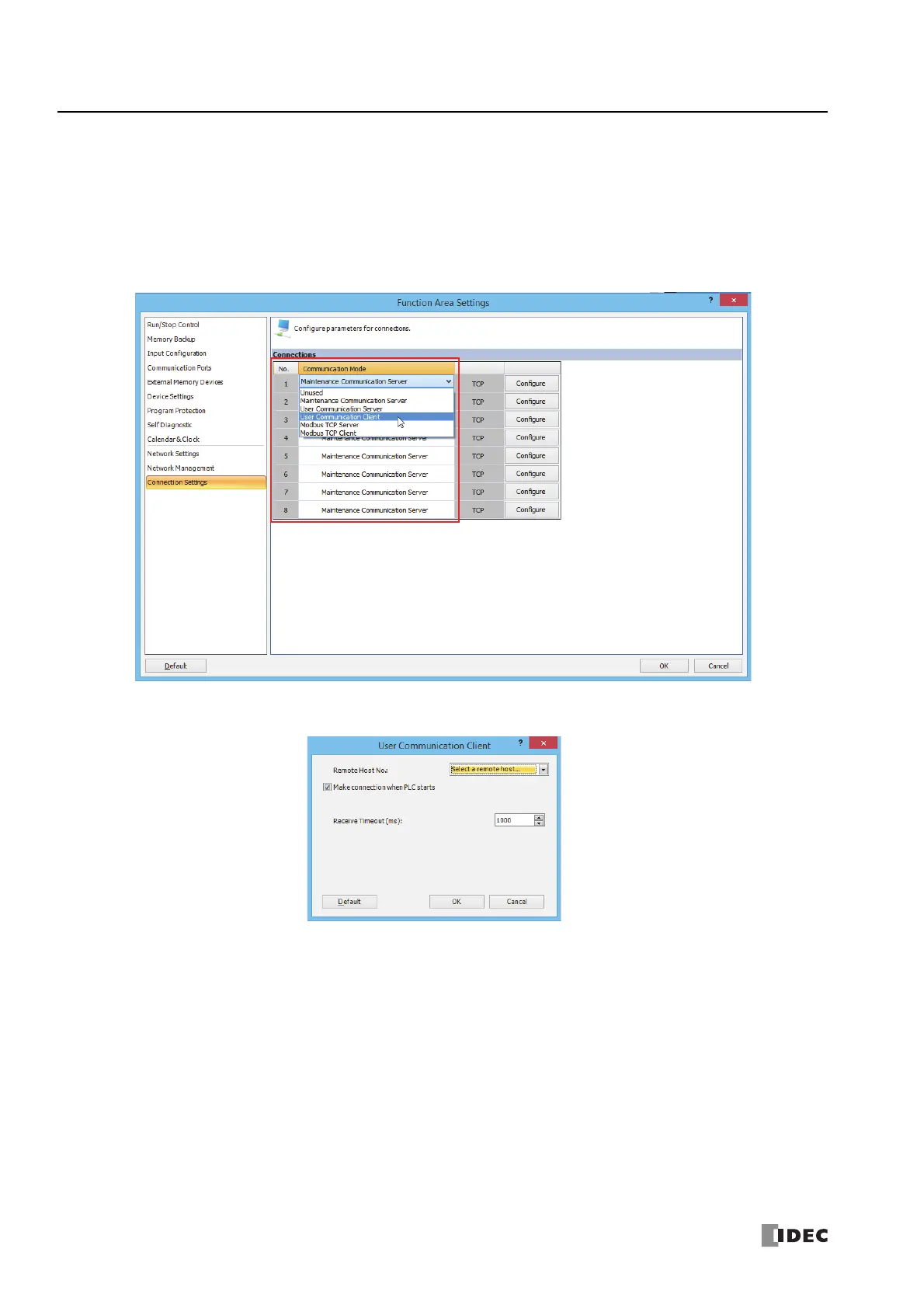

1. Select Configuration from the WindLDR menu bar, and then click Connection Settings.
The Function Area settings dialog box appears.
2. Select the User Communication Client as the communication mode for the client connection 1.
The User Communication Client dialog box appears.
Configure the remote host number and receive timeout. If you want the FC6A Series MicroSmart to establish the connection when
it starts to run, select “Make Connection when PLC starts.” Click OK button to close the dialog box.
