FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730 6-21
6: M ODBUS C OMMUNICATION
Programming WindLDR (Modbus TCP Client)
In order to use the Modbus TCP client, configure the Modbus TCP client in the Function Area Settings dialog box and then
download the user program to the FC6A Series MicroSmart.

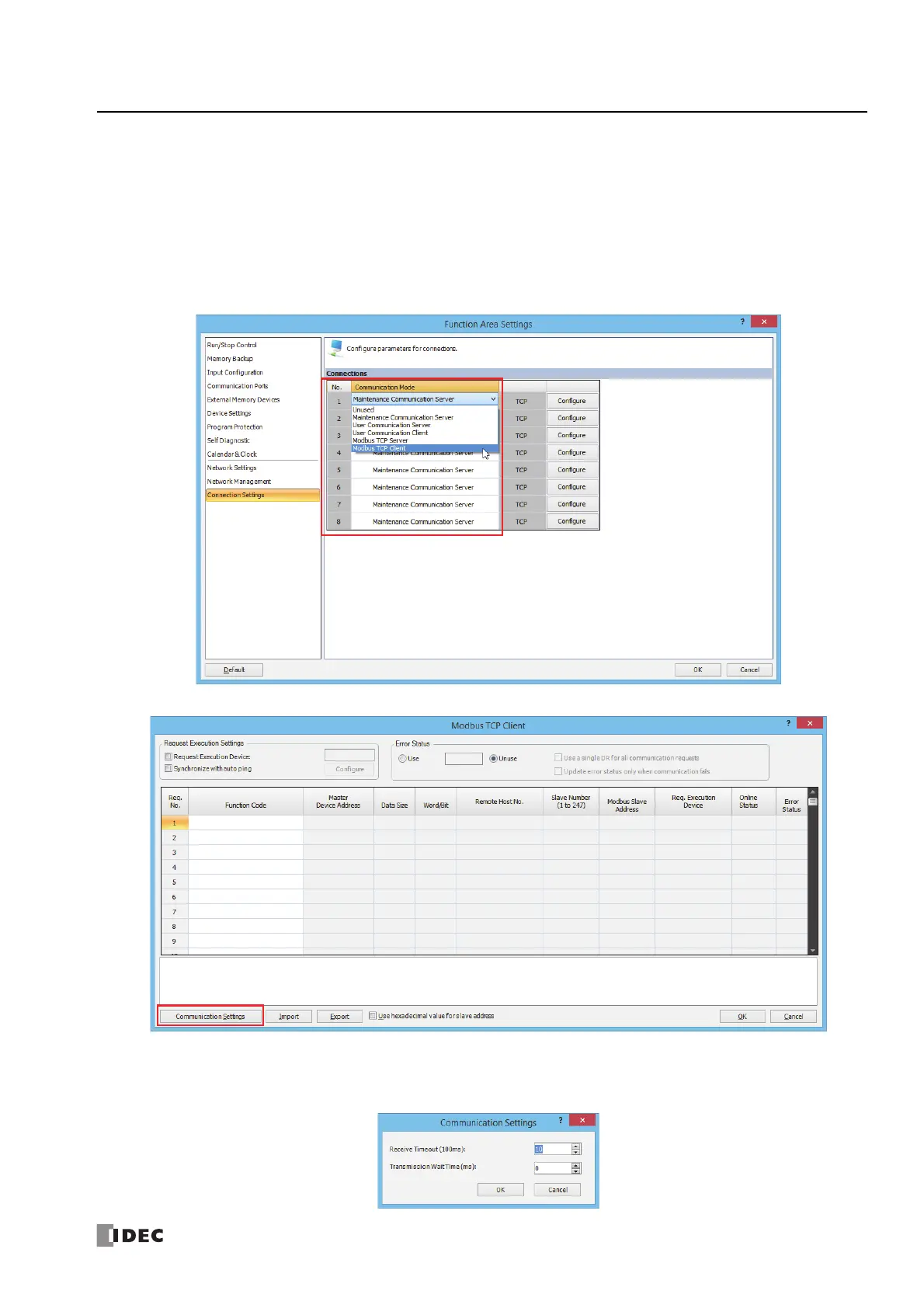

1. From the WindLDR menu bar, select Configuration > Connection Settings.
The Function Area Settings dialog box appears.
2. Select Modbus TCP Client as the communication mode for the connection 1.
The Modbus TCP Client dialog box appears.
3. Click on the Communication Settings button.
The Communication Settings dialog box appears. Configure the receive timeout and the transmission wait time.
Click OK.
