Programming WindLDR
To use the Modbus RTU pass-through function, download a user program to the FC6A Series MicroSmart configured in Function
Area Settings.

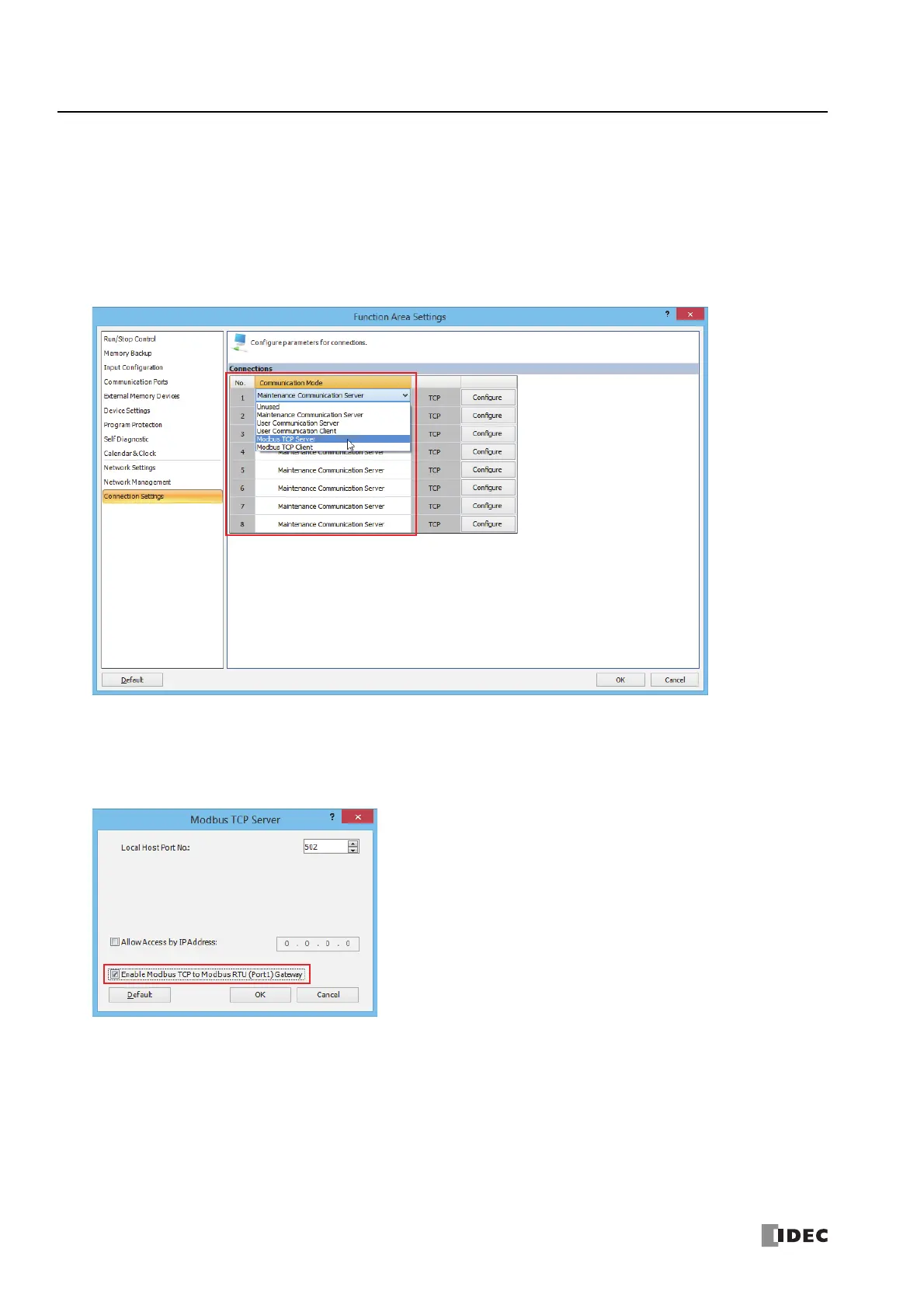

1. On the WindLDR Configuration tab, in the Function Area Settings group, click Connection Settings.
The Function Area Settings dialog box is displayed.
2. Click Communication Mode for Port 1 and select Modbus TCP Server.
The Modbus TCP Server dialog box is displayed.
3. Select the Enable Modbus TCP to Modbus RTU (Port1) Gateway check box and configure the local host port number and
the allow access by IP address.
Specify a number that is different from the other server connections for the local host port number of the port that will use the
pass-through function.
4. Click OK.
