FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730 10-3
10: S END E- MAIL F UNCTION
Programming WindLDR

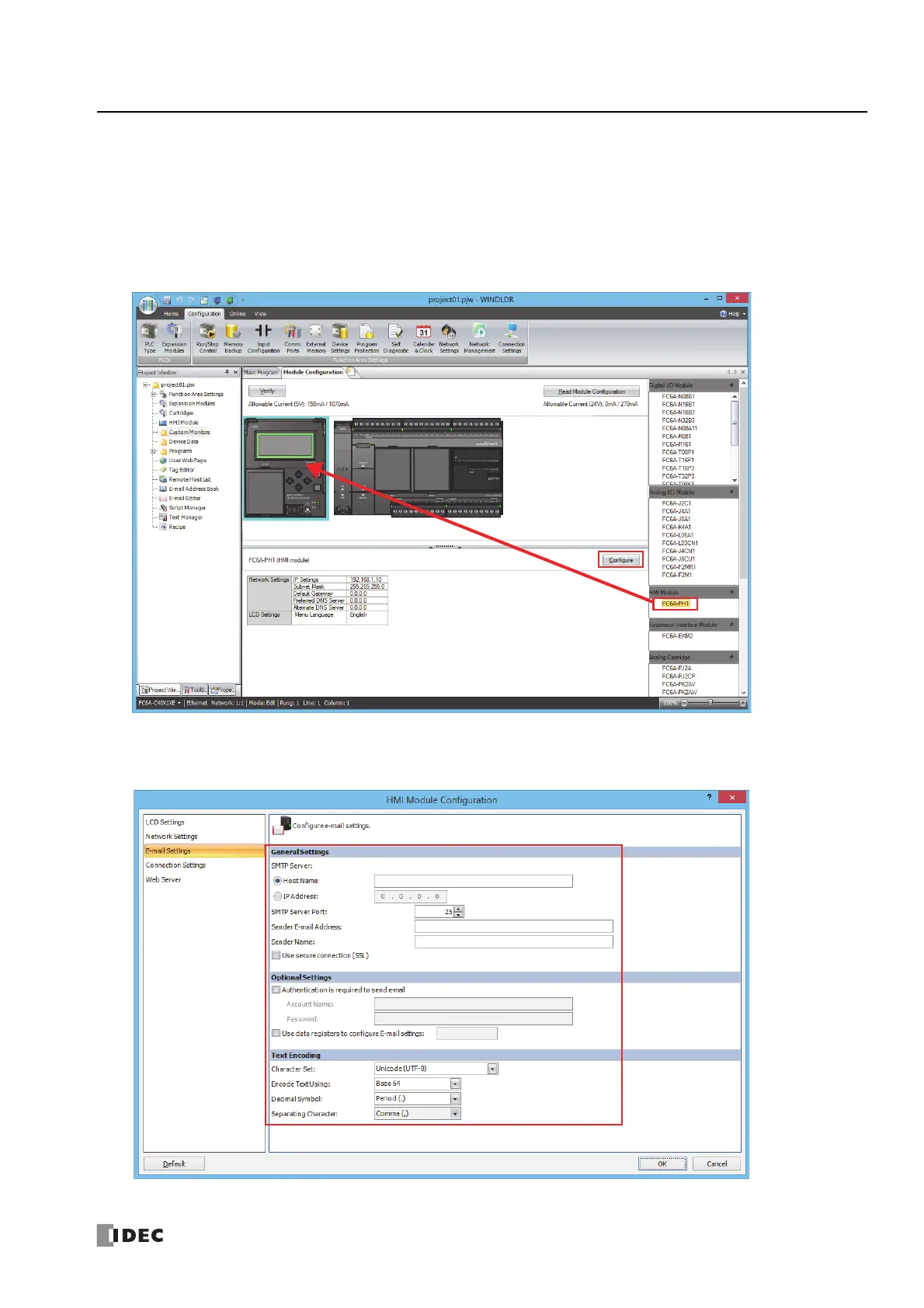

1. Use the Module Configuration Editor to configure the HMI module EMAIL settings.
On the Configuration tab, in the PLCs group, select Expansion Modules.
2. Click the inserted HMI module in the module configuration area and click Configure.
The HMI Module Configuration dialog box is displayed.
Note: You can also display the HMI Module Configuration dialog box by double-clicking HMI Module in the Project Window.
3. Click E-mail.
4. Configure the settings in General Settings, Optional Settings, and Text Encoding.
