FC6A S
ERIES
M
ICRO
S
MART
A
LL
-
IN
-O
NE
T
YPE
C
OMMUNICATION
M
ANUAL
FC9Y-B1730 10-9
10: S
END
E-
MAIL
F
UNCTION
Configuration Example: To send an e-mail to test@example.com by specifying the data register D100, store the values in the
data registers as follows.
To send an e-mail to you@example.com by specifying the data register D123, store the values in the data registers as follows.
Notes:
• Strings by data registers are composed of 1 or more consecutive data registers. 1 word of data is handled as 2 bytes and is used in high-
order byte to low-order byte order, and the terminating character is 00h.
• If 00h is not included in the 30 words (60 bytes) from the data register specified as the e-mail address, all 60 bytes are used as the e-mail
address, and the FC6A Series MicroSmart operates as if the 61st byte is 00h.
4. Click OK.
5. Click the ▼ next to the New E-mail Address, and then click New E-mail Group. Alternatively, select an existing E-mail
address, and then click the Edit button.

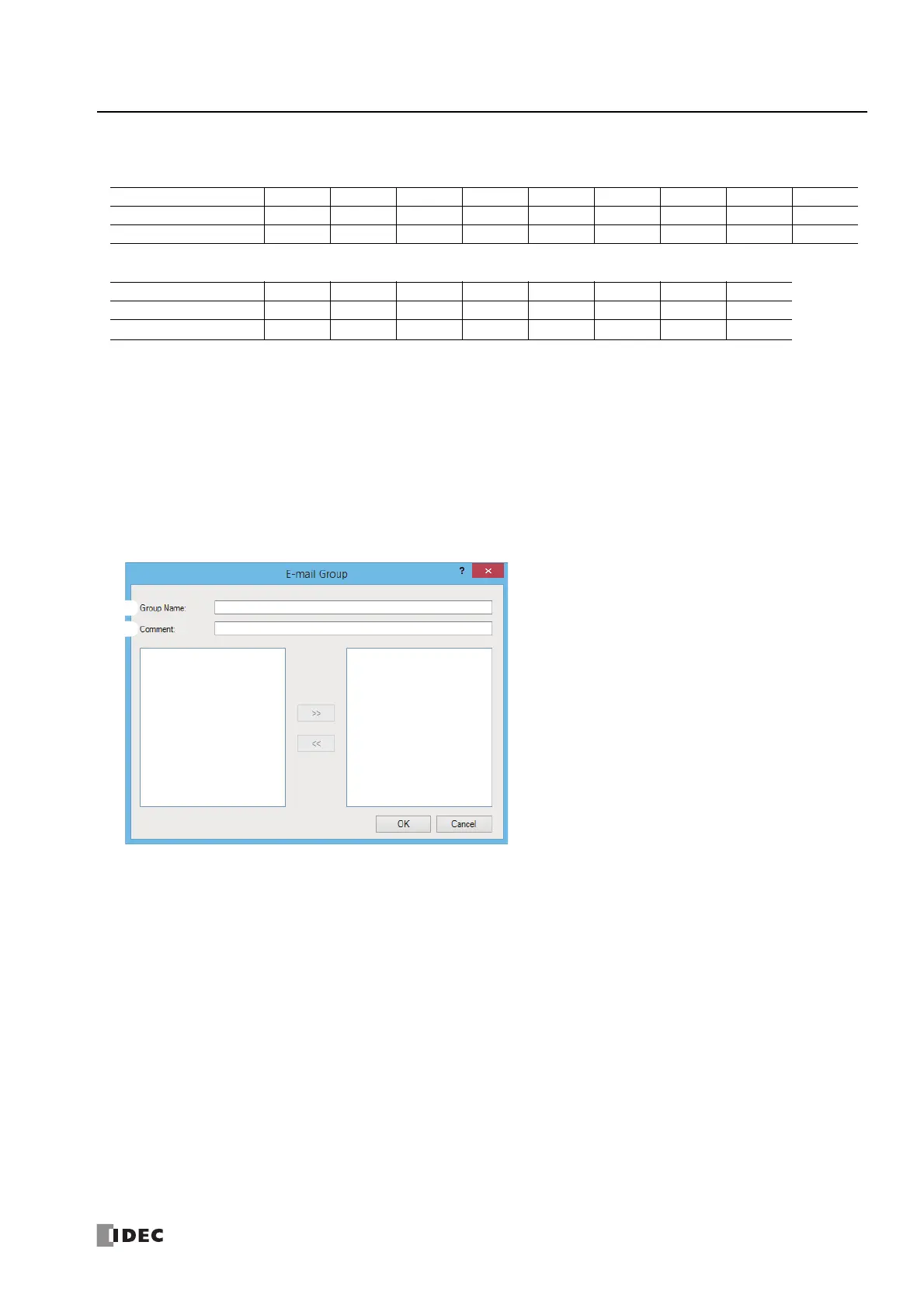

The E-mail Group dialog box appears.
6. Configure the settings.
(1) Group Name
Specify the name of e-mail address group to register in the E-mail Address Book dialog box.
(2) Comment
The comment for the e-mail address group can be assigned. The contents or the length of the comment has no effect on the
CPU module operation.
The e-mail addresses that have not been added to the e-mail address group are shown in the list box on the left. The e-mails
addresses are listed in the order that they were registered in the E-mail Address Book dialog box. In order to add an e-mail
address to the e-mail address group, select the e-mail address to add and click on the >> button. The selected e-mail address is
moved to the list box on the right and listed to the bottom of the e-mails.
The e-mail addresses for the e-mail address group are shown on the list box on the right. The e-mail addresses are listed in the
order that they were added to the e-mail address group. In order to remove an e-mail address from the e-mail address group,
select the e-mail address to remove and click on the << button. The selected e-mail address is moved to the list box on the left
and listed to the bottom of the e-mails.
In order to delete unused e-mail addresses or e-mail address groups from the E-mail address book, select the e-mail address or
e-mail address group to delete and click Delete button in the E-mail Address Book dialog box. When the deleted e-mail address is
used in the e-mail address groups, the deleted e-mail address is removed from all e-mail address groups.
7. Click OK.
This concludes configuring the settings.
Data Register D100 D101 D102 D103 D104 D105 D106 D107 D108
ASCII 't' 'e' 's' 't' '@' 'e' 'x' 'a' 'm' 'p' 'l' 'e' '.' 'c' 'o' 'm' '\0' '\0'
Value (hexadecimal) 7465h 7374h 4065h 7861h 6D70h 6C65h 2E63h 6F6Dh 0000h
Data Register D123 D124 D125 D126 D127 D128 D129 D130
ASCII y' 'o' 'u' '@' 'e' 'x' 'a' 'm' 'p' 'l' ' 'e' '.' 'c' 'o' 'm' '\0'
Value (hexadecimal) 796Fh 7540h 6578h 616Dh 706Ch
652Eh 636Fh 6D00h
(1)
(2)
To Next Page
