11: W
EB
S
ERVER
11-2 FC6A S
ERIES
M
ICRO
S
MART
A
LL
-
IN
-O
NE
T
YPE
C
OMMUNICATION
M
ANUAL
FC9Y-B1730
Programming WindLDR

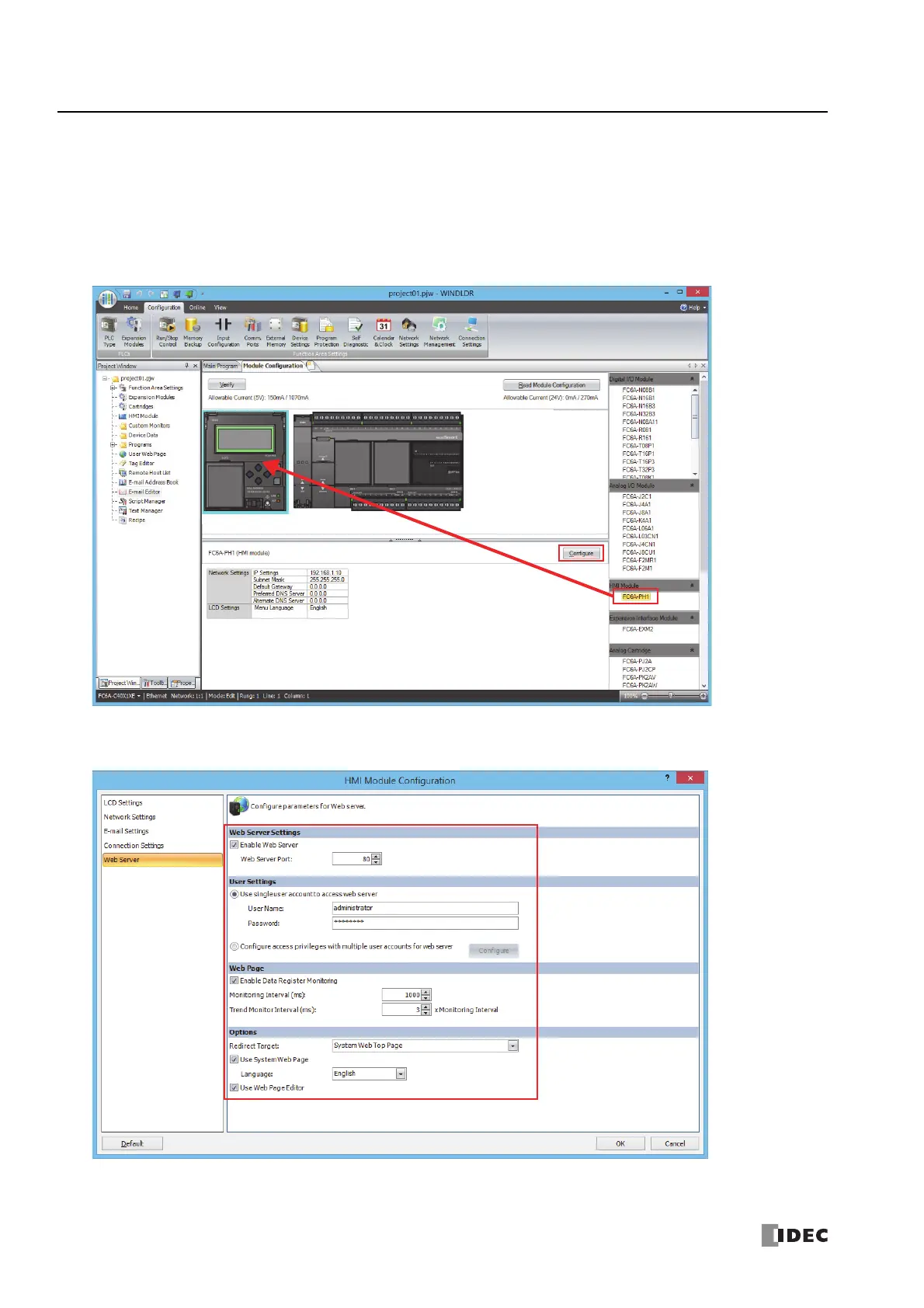

1. Use the Module Configuration Editor to configure the HMI module Web server settings.
On the Configuration tab, in the PLCs group, select Expansion Modules.
2. Click the inserted HMI module in the module configuration area and click Configure.
The HMI Module Configuration dialog box is displayed.
Note:
You can also display the
HMI Module Configuration
dialog box by double-clicking
HMI Module
in the Project Window.
3. Click Web Server.
4. Configure the settings in Web Server Settings, Web Page, and Options.
5. Download the user program to the FC6A Series MicroSmart.
This concludes configuring the web server settings.
