4: M AINTENANCE C OMMUNICATION
4-14 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730
Programming WindLDR
Configure the settings for maintenance communication.

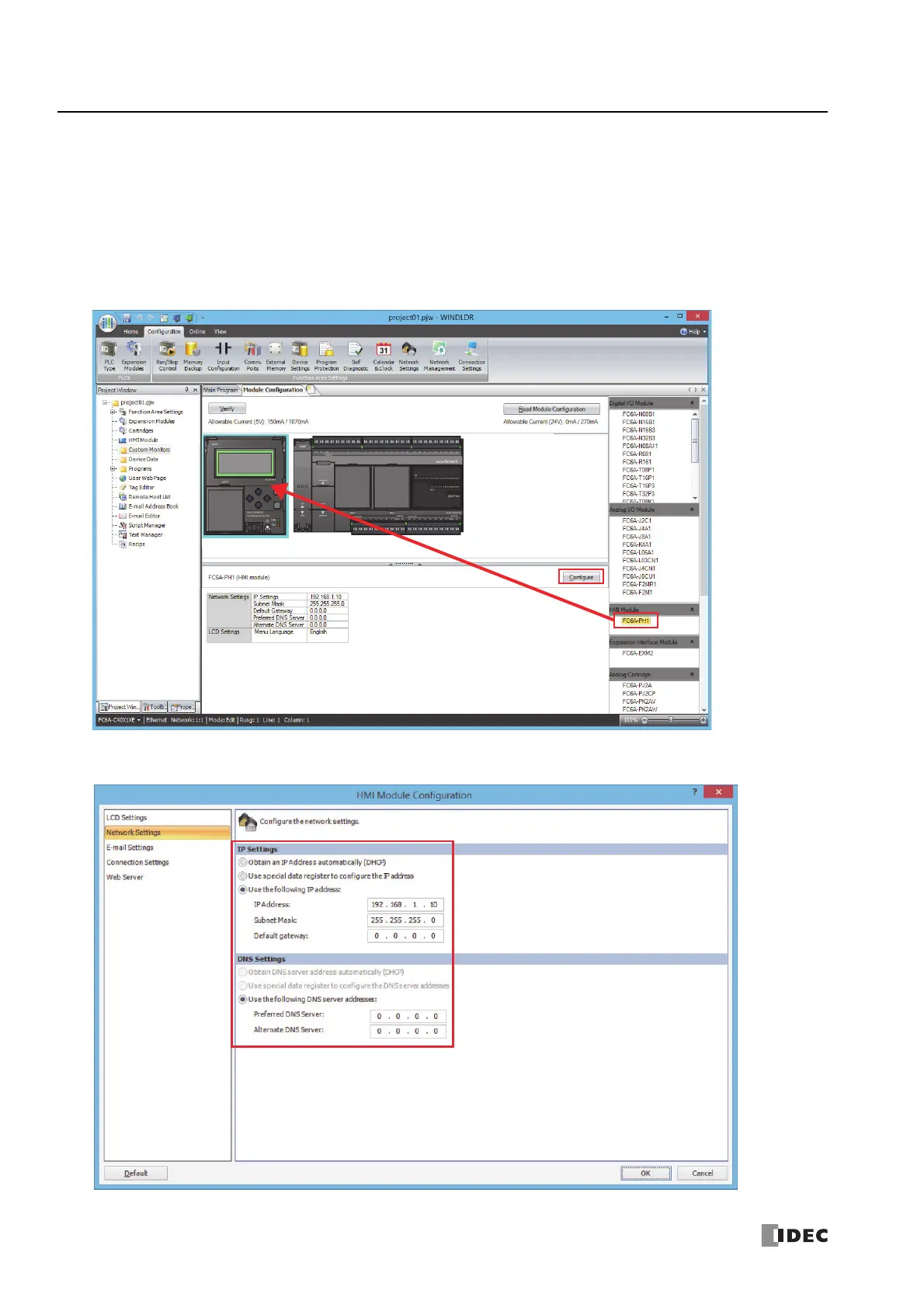

1. Use the Module Configuration Editor to configure the HMI module network settings and connection settings.
On the Configuration tab, in the PLCs group, select Expansion Modules.
2. Click the inserted HMI module in the module configuration area and click Configure.
The HMI Module Configuration dialog box is displayed.
Note: You can also display the HMI Module Configuration dialog box by double-clicking HMI Module in the Project Window.
3. Click the Network Settings tab, and then configure the IP Settings and DNS Settings.
