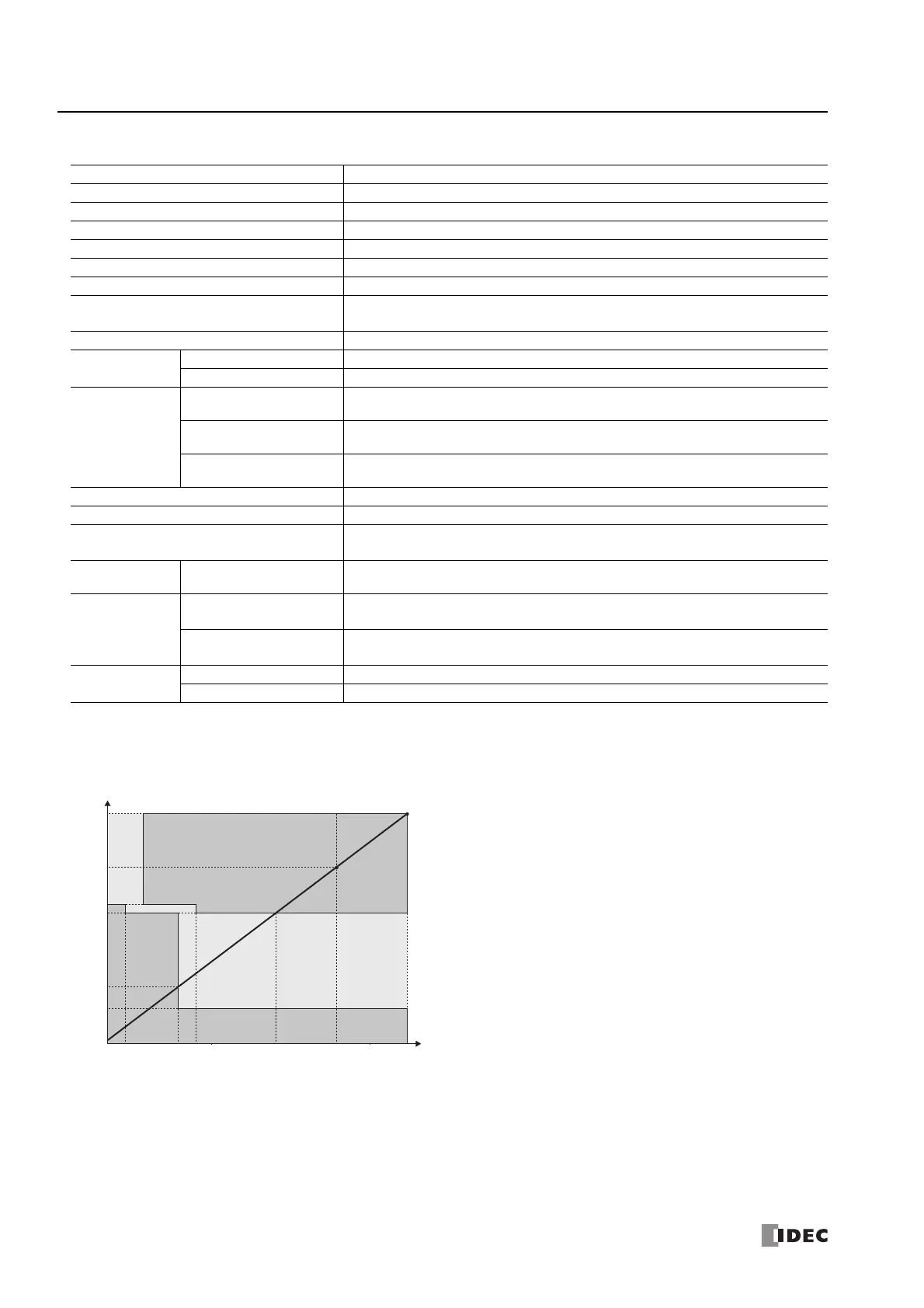

■ AC Input Module Specifications
Operating Ranges
The operating range of Type 1 and 2 (IEC 61131-2) AC input modules is as follows.
Type No. FC6A-N08A11, FC6A-N08A14
Rated Input Voltage 100 to 120V AC
Operating Load Voltage Range 0 to 132V AC
Rated Power Frequency 50/60 Hz
Rated Input Current 15 mA/1 point (at 120V AC, 50/60 Hz)
Input Points 8 points in 2 common lines
Terminal Arrangement See 2-79
Input Type
AC input
Type 1, 2 (IEC 61131-2)
Input Impedance 8.0 kΩ (at 60 Hz)
Input Delay
Time
Turn ON Time 25 ms
Turn OFF Time 30 ms
Isolation
In the Same Common
Channel
Not isolated
In Different Common
Channels
Isolated
Between Input and
Internal Circuit
Photocoupler isolated
External Load for I/O Interconnection Not needed
Signal Determination Method Static
Effect of Improper Input Connection
If high voltage is applied that exceeds the input voltage range, there is a risk of permanent
damage.
Connector
Insertion/Removal
Durability
100 times minimum
Internal
Current Draw
All Points ON
40 mA (5V DC)
0 mA (24V DC)
All Points OFF
17 mA (5V DC)
0 mA (24V DC)
Weight
(approx.)
FC6A-N08A11 110 g
FC6A-N08A14 95 g
FC6-N08A11, FC6A-N08A14
Transition Area
ON Area
OFF Area
5 mA 9.5 mA
Input Current
(mA)
20 V
31 V
0 V
79 V
74 V
100 V
(13 mA, 100 V)
(17 mA, 132 V)
Input Voltage (V AC)
132 V
4 mA0 mA 13 mA 17 mA
