FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-71
2: P RODUCT S PECIFICATIONS

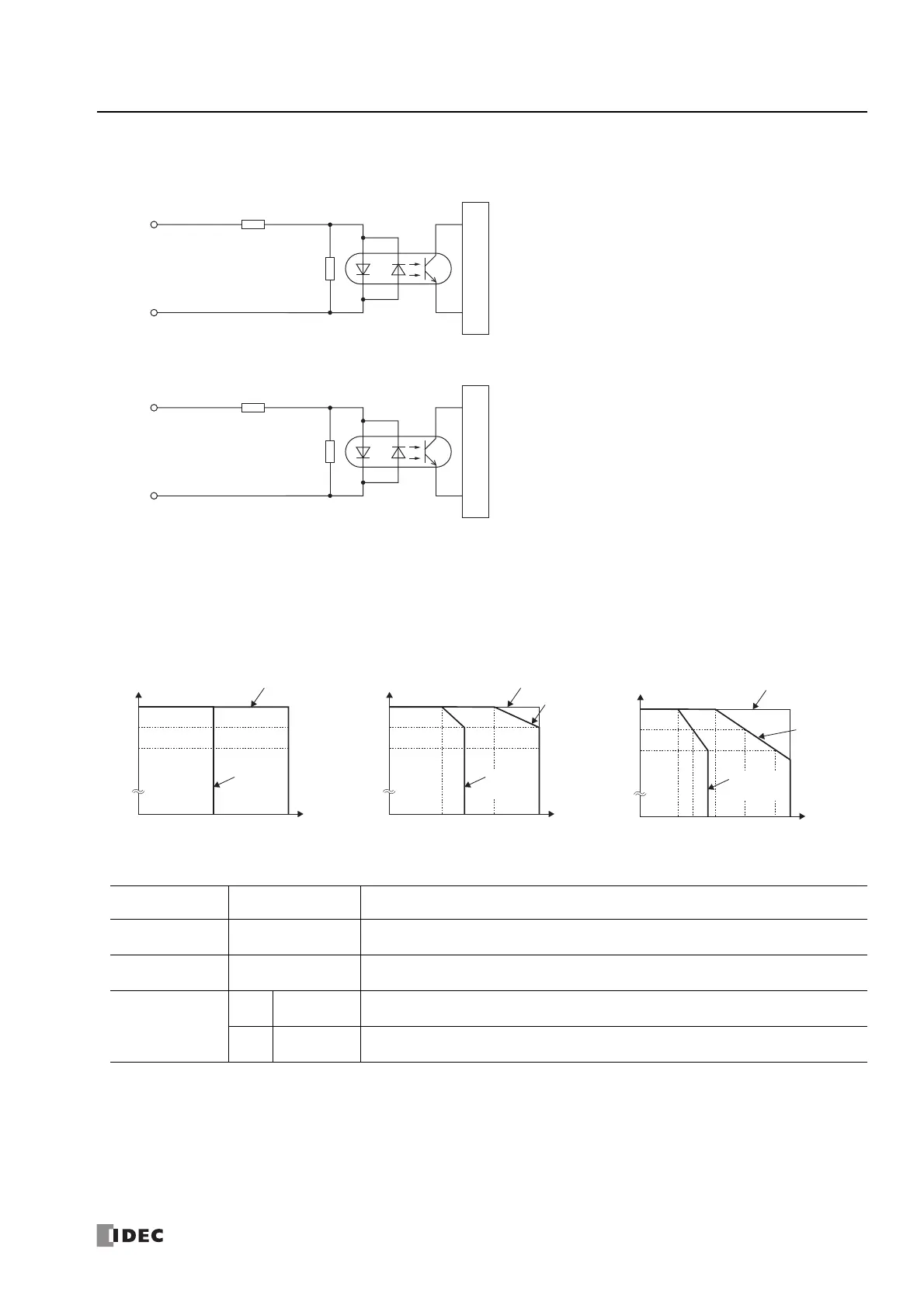

Input Internal Circuit
FC6A-N08B1, FC6A-N08B4, FC6A-N16B1, FC6A-N16B4
FC6A-N16B3, FC6A-N32B3
Ambient Temperature, Input Voltage, Output Voltage, I/O Simultaneous ON Ratio
When the FC6A Series MICROSmart is used in an ambient temperature of 30°C or higher, reduce the input voltage and I/O
utilization (simultaneous ON ratio: a%) according to the following diagrams. However, the following diagrams show the
temperature conditions when the FC6A Series MICROSmart is normally installed.
Note: Normally installed means the state in the diagram in "Normal Installation State" on page 3-1.
The usage conditions will also change according to the installation state. For details, see "Installation Location" on page 3-1.
I/O Simultaneous ON Ratio (a%)
*1 For the usage ratio of connector CN1 and CN2 inputs, set each to a% or lower.
FC6A-N08B1, FC6A-N08B4 FC6A-N16B1, FC6A-N16B4 FC6A-N16B3, FC6A-N32B3
FC6A-N08B1,
FC6A-N08B4
I0 to I7 There are no usage restrictions for input and output I/O.
FC6A-N16B1,
FC6A-N16B4
I0 to I7
I10 to I17
Set the usage ratio of the inputs (ON status) to a% or lower according to the conditions in the
above graph.
FC6A-N16B3
I0 to I7
I10 to I17
Set the usage ratio of the inputs (ON status) to a% or lower according to the conditions in the
above graph.
FC6A-N32B3
CN1
I0 to I7
I10 to I17
Set the usage ratio of the inputs (ON status) to a% or lower according to the conditions in the
above graph.
*1
CN2
I20 to I27
I30 to I37
Set the usage ratio of the inputs (ON status) to a% or lower according to the conditions in the
above graph.
*1
3.3 KΩ
COM
Input
Internal Circuit
4.3 KΩ
COM
Input
Internal Circuit
I/O
Simultaneous
ON Ratio (%)
100%0%
24.0 V
0 V
26.4 V
Input Voltage
28.8 V
Ambient
Temperature 55°C
50%
Ambient
Temperature
65°C
I/O
Simultaneous
ON Ratio (%)
100%70%50%35%0%
24.0 V
0 V
26.4 V
Input Voltage
28.8 V
Ambient
Temperature 45°C
Ambient
Temperature
55°C
Ambient
Temperature
65°C
I/O
Simultaneous
ON Ratio (%)
100%90%70%50%45%
0%
24.0 V
0 V
26.4 V
Input Voltage
28.8 V
Ambient
Temperature 30°C
Ambient
Temperature
55°C
35%25%
Ambient
Temperature
65°C
