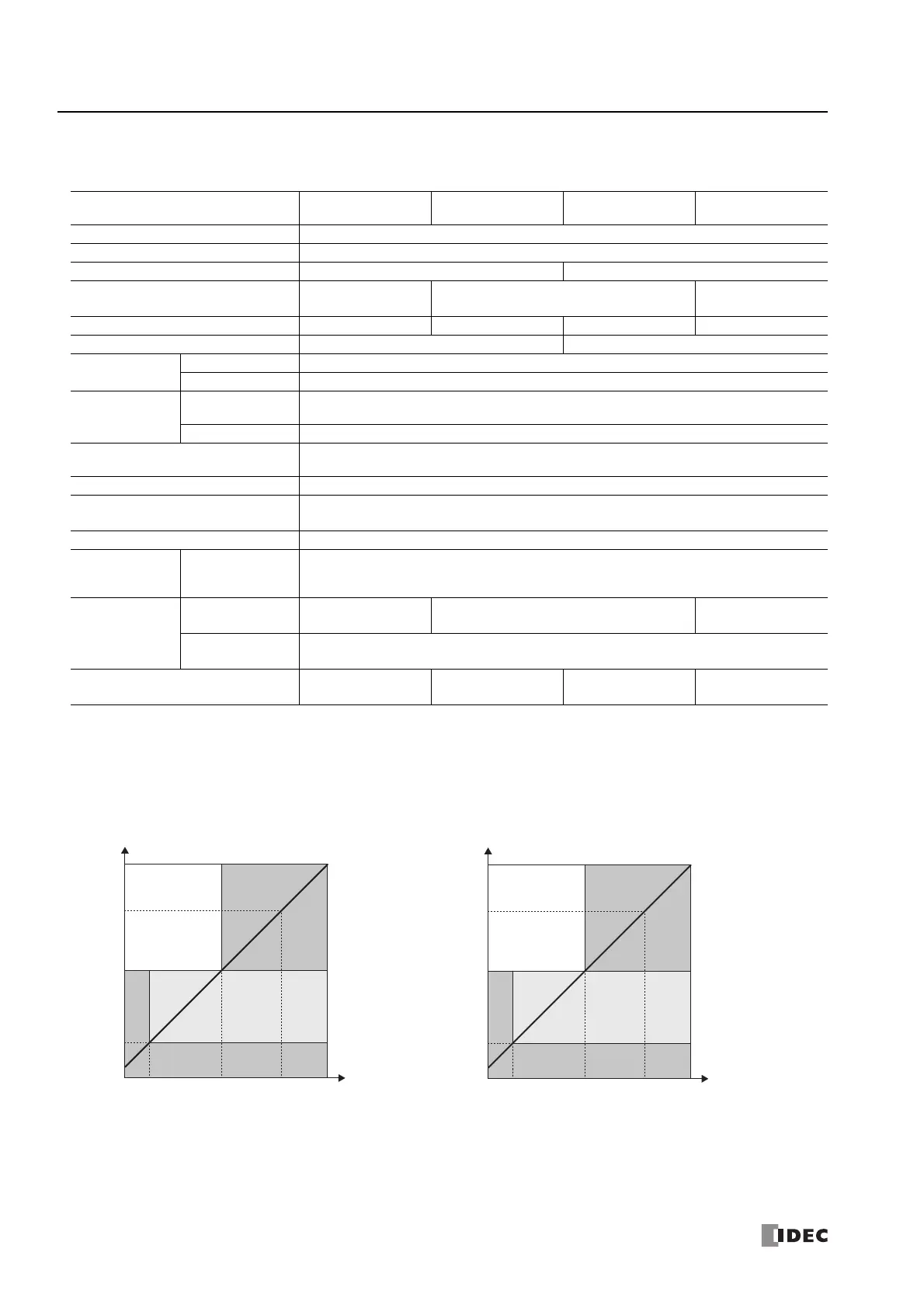

Function Specifications
■ DC Input Module Specifications
*1 24V DC for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Operating Ranges
The operating range of Type 1 (IEC 61131-2) DC input modules is as follows.
*2 15 V for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number" on
page 2-1.
*3 4.2 mA for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
*4 3.2 mA for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Type No.
FC6A-N08B1
FC6A-N08B4
FC6A-N16B1
FC6A-N16B4
FC6A-N16B3 FC6A-N32B3
Rated Input Voltage 12/24V DC
*1
shared sink/source
Operating Load Voltage Range 0.0 to 28.8V DC
Rated Input Current 3.5 mA/point (at 12V DC), 7 mA/point (at 24V DC) 2.5 mA/point (at 12V DC), 5 mA/point (at 24V DC)
Input Points
8 (8 points in 1
common line)
16 (16 points in 1 common line)
32 (16 points in 1
common line)
Terminal Arrangement See 2-74 See 2-75 See 2-77 See 2-78
Input Impedance 3.4 kΩ 4.4 kΩ
Input Delay
Time (24V DC)
Turn ON Time 4.1 ms
Turn OFF Time 4.1 ms
Isolation
Between
Channels
Not isolated
Internal Circuit Photocoupler isolated
External Load for I/O
Interconnection
Not needed
Signal Determination Method Static
Effect of Improper Input
Connection
Even if wiring for sink or source connection is incorrect, no damages are caused.
If any input exceeding the rated value is applied, permanent damage may be caused.
Cable Length 3 m
Connector
Insertion/
Removal
Durability
100 times minimum
Internal
Current Draw
All Points ON
30 mA (5V DC)
0 mA (24V DC)
40 mA (5V DC)
0 mA (24V DC)
65 mA (5V DC)
0 mA (24V DC)
All Points OFF
17 mA (5V DC)
0 mA (24V DC)
Weight (approx.)
FC6A-N08B1: 110 g
FC6A-N08B4: 95 g
FC6A-N16B1: 105 g
FC6A-N16B4: 95 g
75 g 110 g
FC6A-N08B1, FC6A-N08B4, FC6A-N16B1, FC6A-N16B4 FC6A-N16B3, FC6A-N32B3
Transition
Area
ON Area
OFF Area
2.8 mA
*3
8.4 mA
Input Current
(mA)
5 V
10.2 V
*2
24 V
Input Voltage (V DC)
28.8 V
1.2 mA 7.0 mA
2.2 mA
*4
6.4 mA
5 V
10.2 V
*2
24 V
28.8 V
0.9 mA 5.3 mA
Transition
Area
ON Area
OFF Area
Input Current
(mA)
Input Voltage (V DC)
